13. ADJUSTMENTS AND REGULATIONS
13.1 ADJUSTMENT

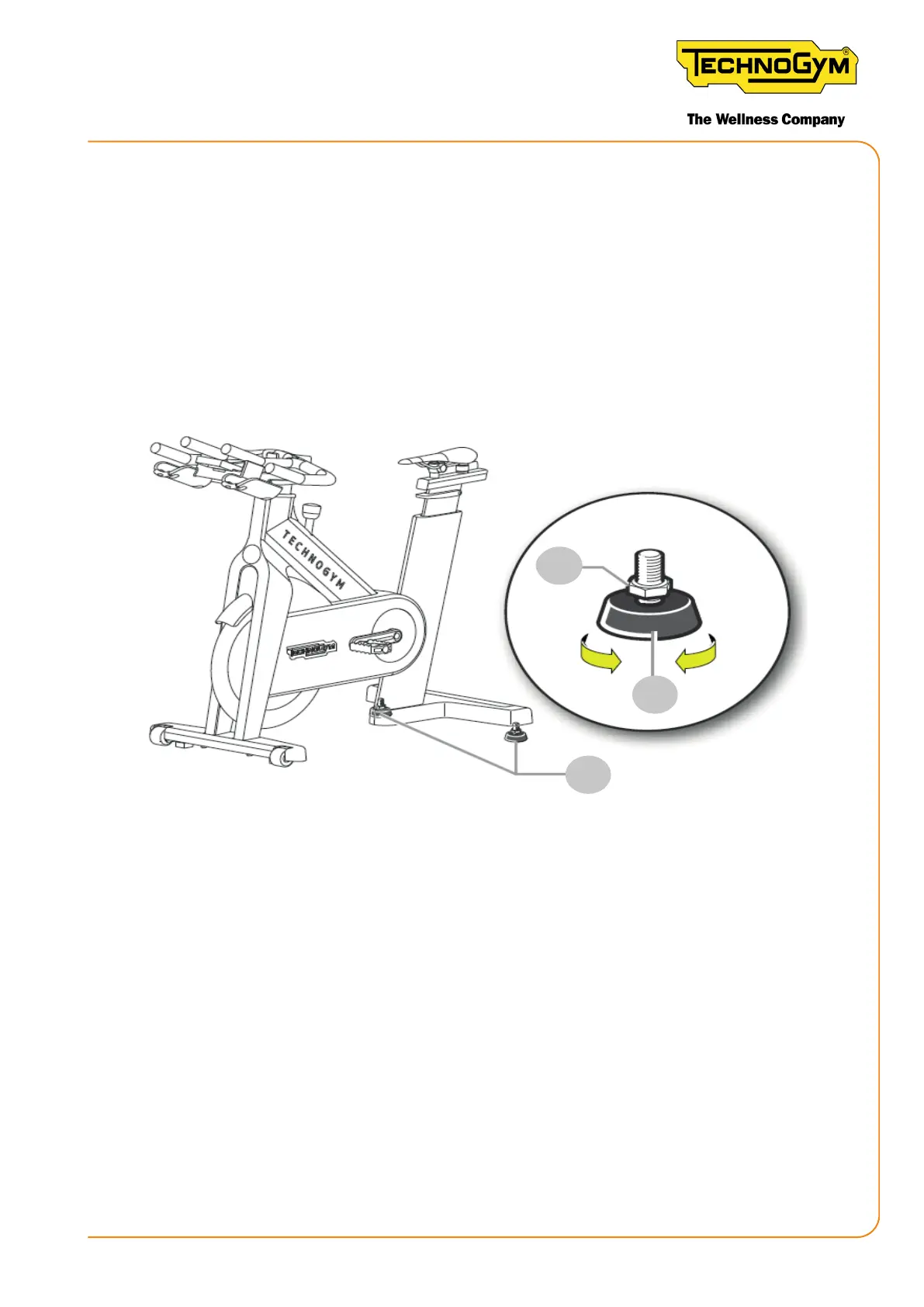

The rear feet are adjusted for the levelling operation:
- loosen the locknuts (B);
- screw or unscrew the foot (A) until the frame is in a stable position;
- when the regulation is complete, tighten the locknuts (B).
A
B
A
A
B
Figure 260
13.2 BELT TENSION REGULATION
Proceed as follows to adjust the belt tension:
- unscrew the screw (A) and remove the guard (B);
- unscrew the screws (C) and remove the guard (D);
- use a 5 mm hexagonal key to loosen the screws (E) and (F);
- use a 17 mm key to loosen the locknut (G) on the belt regulation screw (H);
- screw the screw (H) to tighten the belt;
- unscrew the screw (H) to loosen the belt;
- tighten the locknut (G), and the screws (E) and (F);
