11.5.5 REMOVING THE
KNOB
1
2

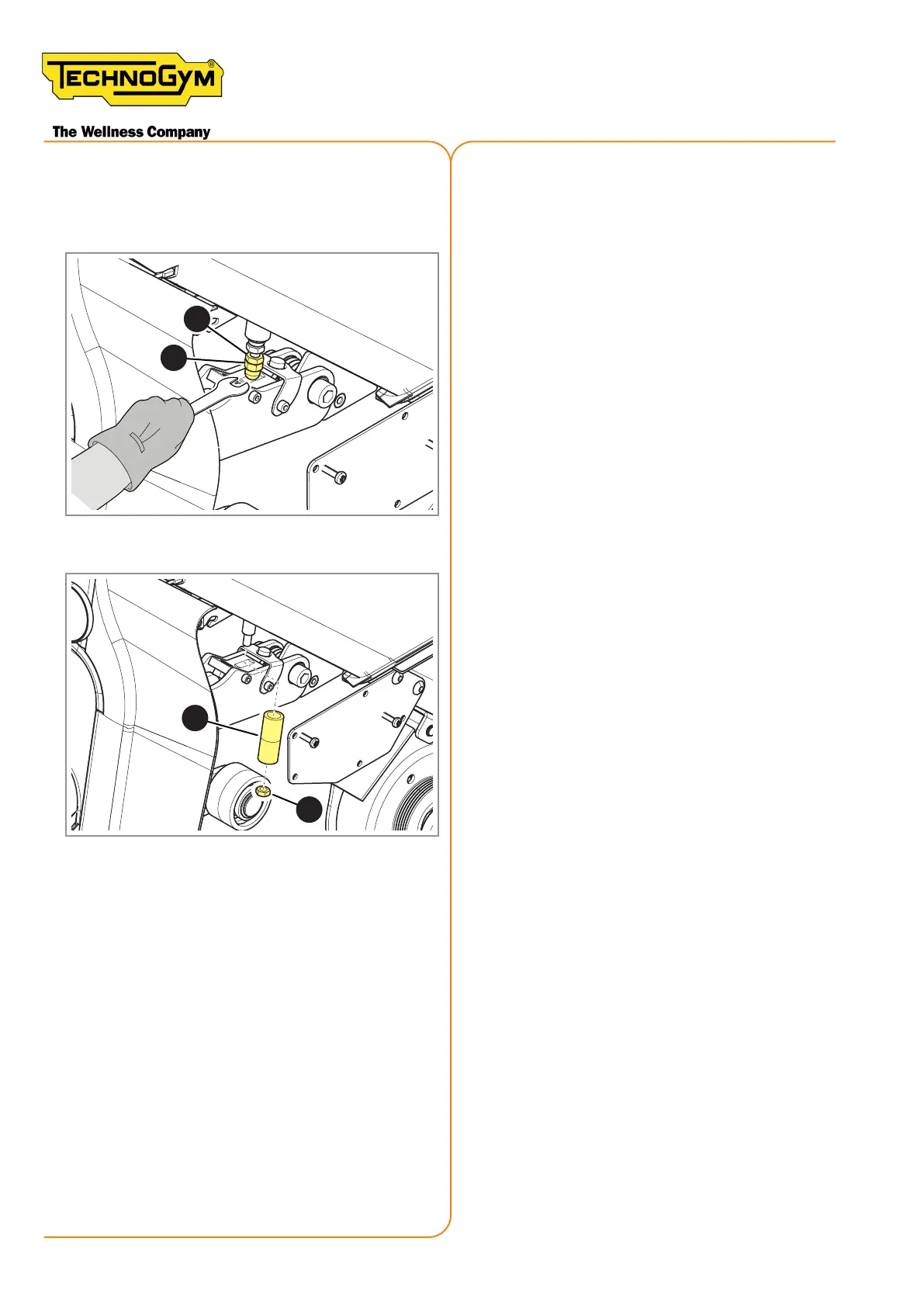

Figure 169
Remove the brake guard as indicated in “11.3.1
Removing brake guards”.
1. Remove the acorn nut (1) and the locknut
(2) with a 13 mm wrench.
3
4
Figure 170
2. Remove the self-locking nut (3) and the
spacer (4).
New Group Cycle (D92):
