11.5.2 REMOVING THE
BELT TENSIONER
1
1

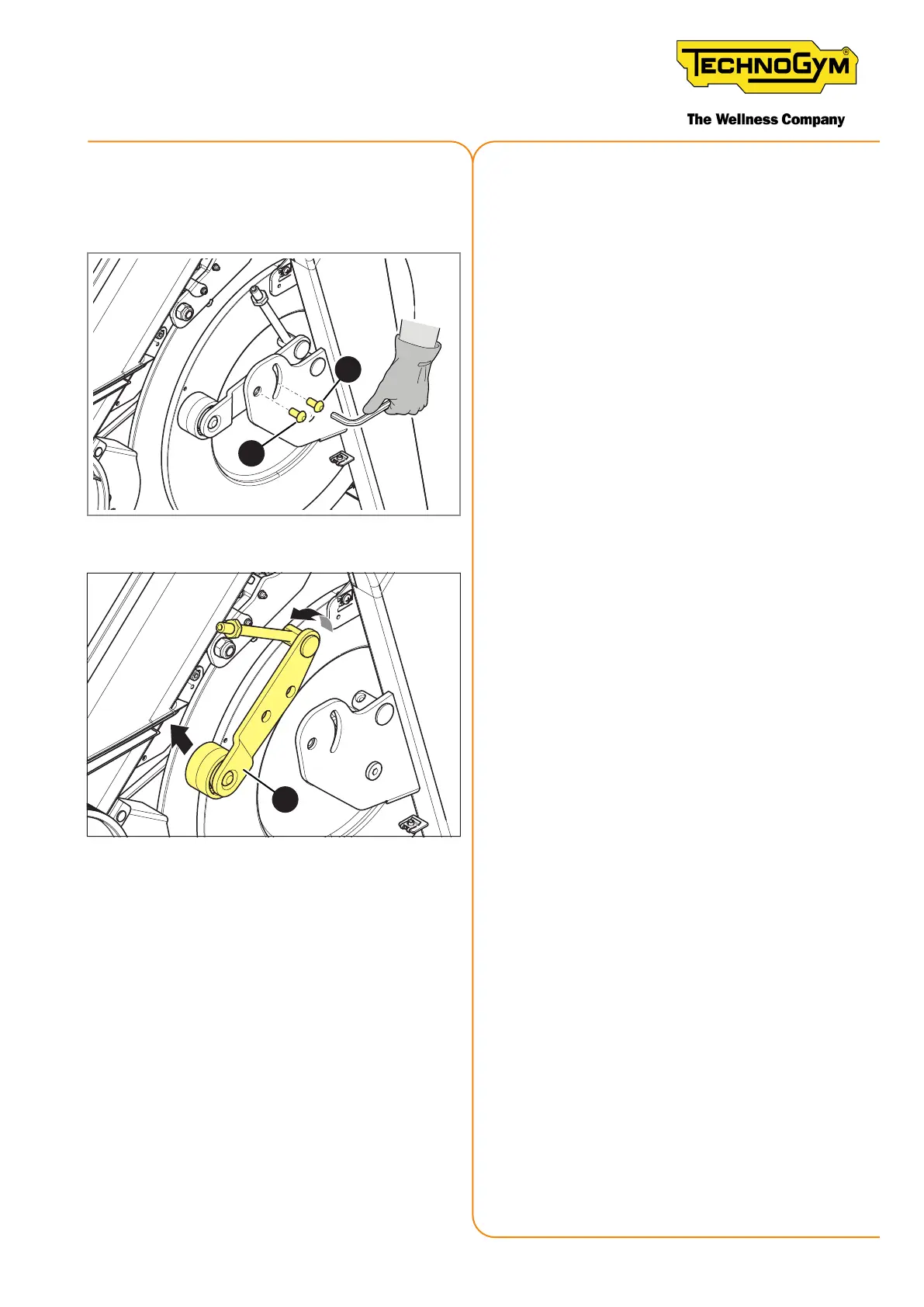

Figure 152
Release tension from the belt tensioner as in-
dicated in “11.5.1 Tightening the transmission
belt”.
1. Remove the screws (1) with a 6 mm Allen
wrench.
2
Figure 153
2. Rotate and remove the pulley (2).
Totthebelttensionerbackonthebike,followthe
aforementioned instructions in the reverse order.
New Group Cycle (D92):
Technical Service Guide - Rev. 5.1
