New Group Cycle (D92):
Technical Service Guide - Rev. 5.1
Document uncontrolled when printed
Page 30
3.1.4 HALL SENSOR
The Hall Sensor is xed to the device frame with 2 screws. It acquires the braking position based
on the distance between the magnets and the brake and sends this information to the Wa Sensor.
Each time the Hall Sensor and the brake frame are removed and/or replaced, the brake calibration
procedure must be performed.

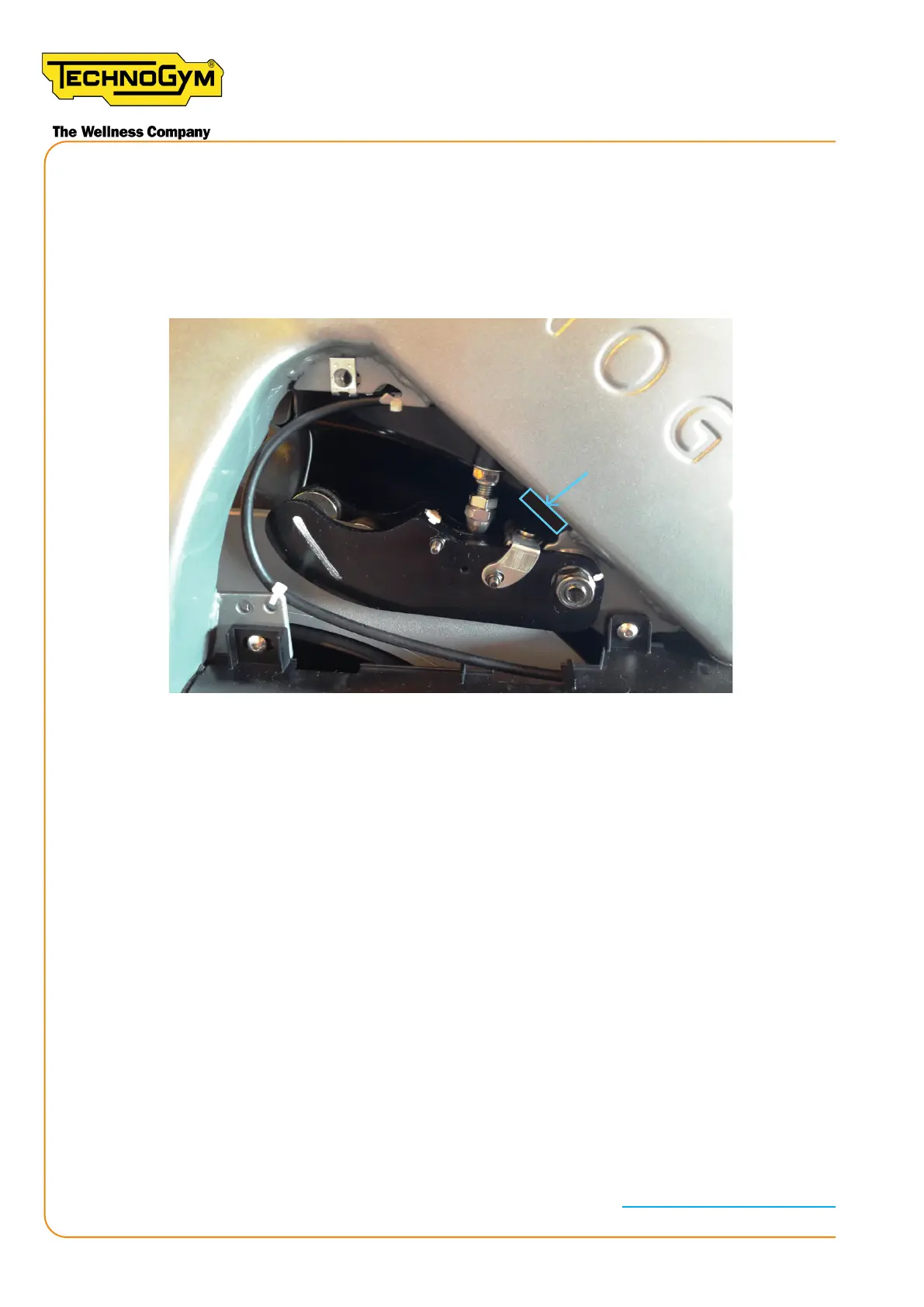

Figure 7 - Hall sensor
3.1.5 CONSOLE (CONNECT VERSION)
3.1.5.1 OLD WI-FI CONSOLE
Display of the workout data: Speed (revs per minute), power (W), time and distance (mi: sec - km
/ mi), FC / AR (bpm), calories (kcal).
The console receives power from the Wa Sensor and the speed directly from the Transformer.
Technical specications:
• backlit TOUCHPAD;
• Segment LCD;
• NFC reader;
• Bluetooth smart connectivity;
• WiFi compatibility;
The user can log in to the bike with a camera-ed Smartphone using the dedicated QR Code.
To identify the type of console installed on Group Cycle (D92), see § “14.1.2 how to identify the
