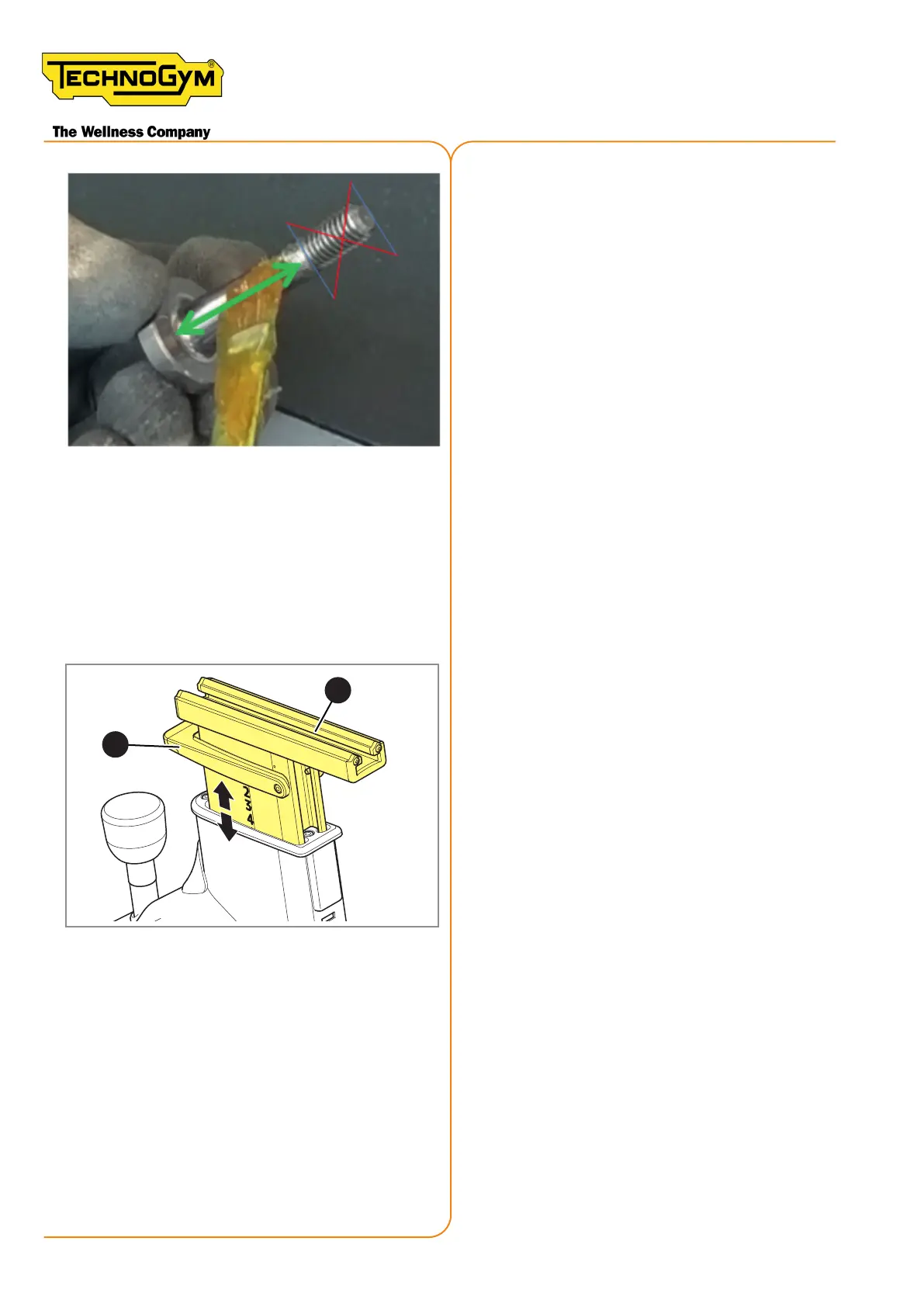

Technogym Group Cycle D92 - Disassembling the Handlebarsvertical Slider

Figure 183
11.6.3 DISASSEMBLING
THE HANDLEBAR’S
VERTICAL SLIDER
1
2
Figure 184
Remove the handlebar as indicated in “11.6.1
Removing the handlebar”.
Remove the mudguard protection as indicated
in “11.3.4 Removing the mudguard protection”.
1. Press the lever (1) and adjust the vertical
position of the post (2) until it is in posi-
tion “4”.
New Group Cycle (D92):
Technical Service Guide - Rev. 5.1
