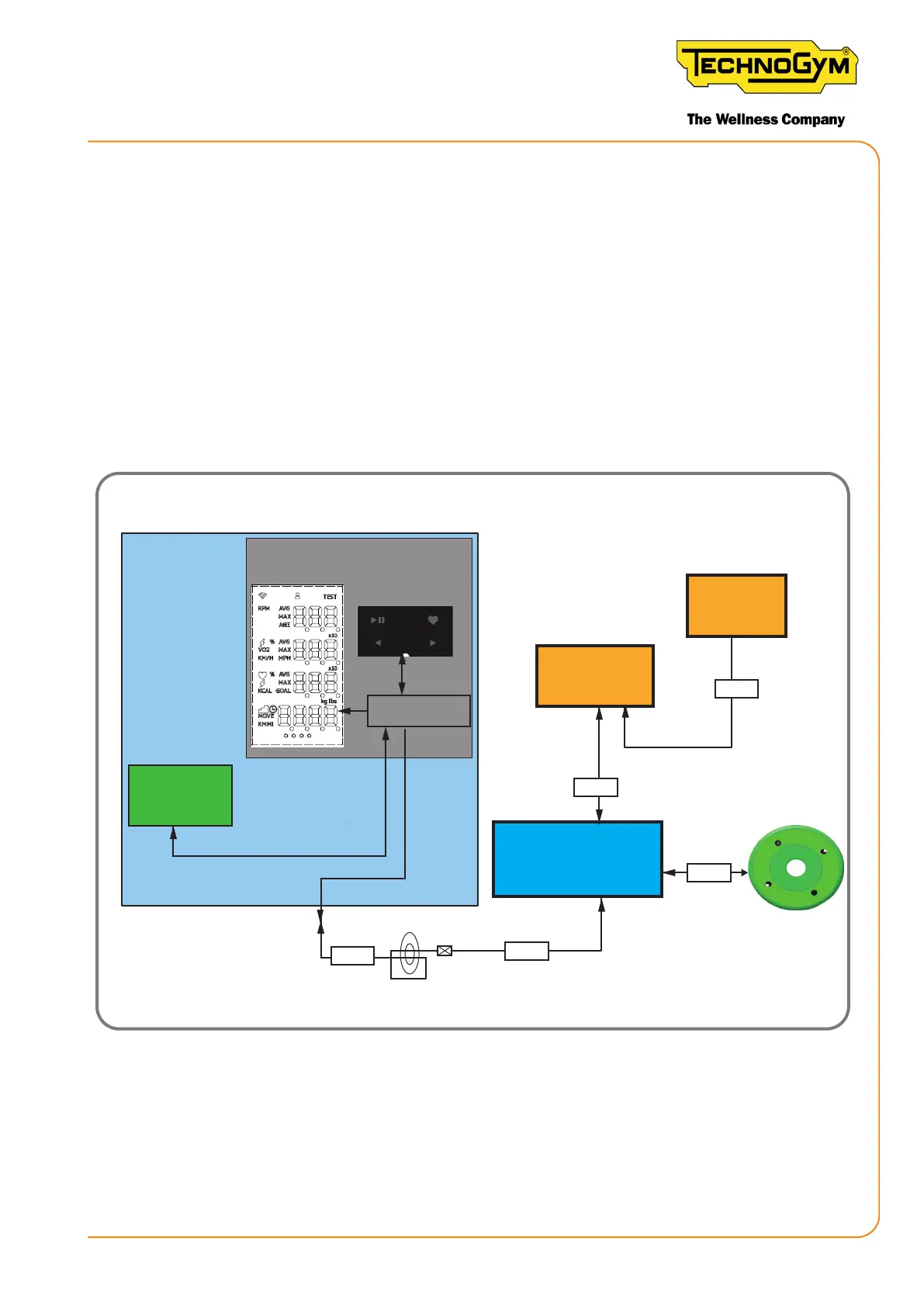

2.7.2 NEW ELECTRONICS CABLE DIAGRAM (REV. 2)
The new electronics rev.2 - with the FEGO generator and Wa Sensor ID board - is installed in the
following equipment:
PRODUCED IN ITALY:
D92CBNE0**1 (it): from SN D92CBNE016104415 to D92CBNE016109999.
D92CBNE0**0 (it): from SN D92CBNE017000000 to D92CBNE017003579.
D92CBNE0**0 (it): Starting from SN D92CBNE017007394 and following.
VOLTAGE
CONVERTER
CPU BOARD
Generator
NFC BOARD
WATT SENSOR
BOARD
TOUCH
KEYBOARD
BOARD
DISPLAY
HALL
SENSOR
Patch
connection
Complete
CONSOLE
CU0810
CU0811
Single group
CU0813
CU0957
CU0812
Figure 6
New Group Cycle (D92):
