11.3.4 REMOVING
THE MUDGUARD
PROTECTION
1
1

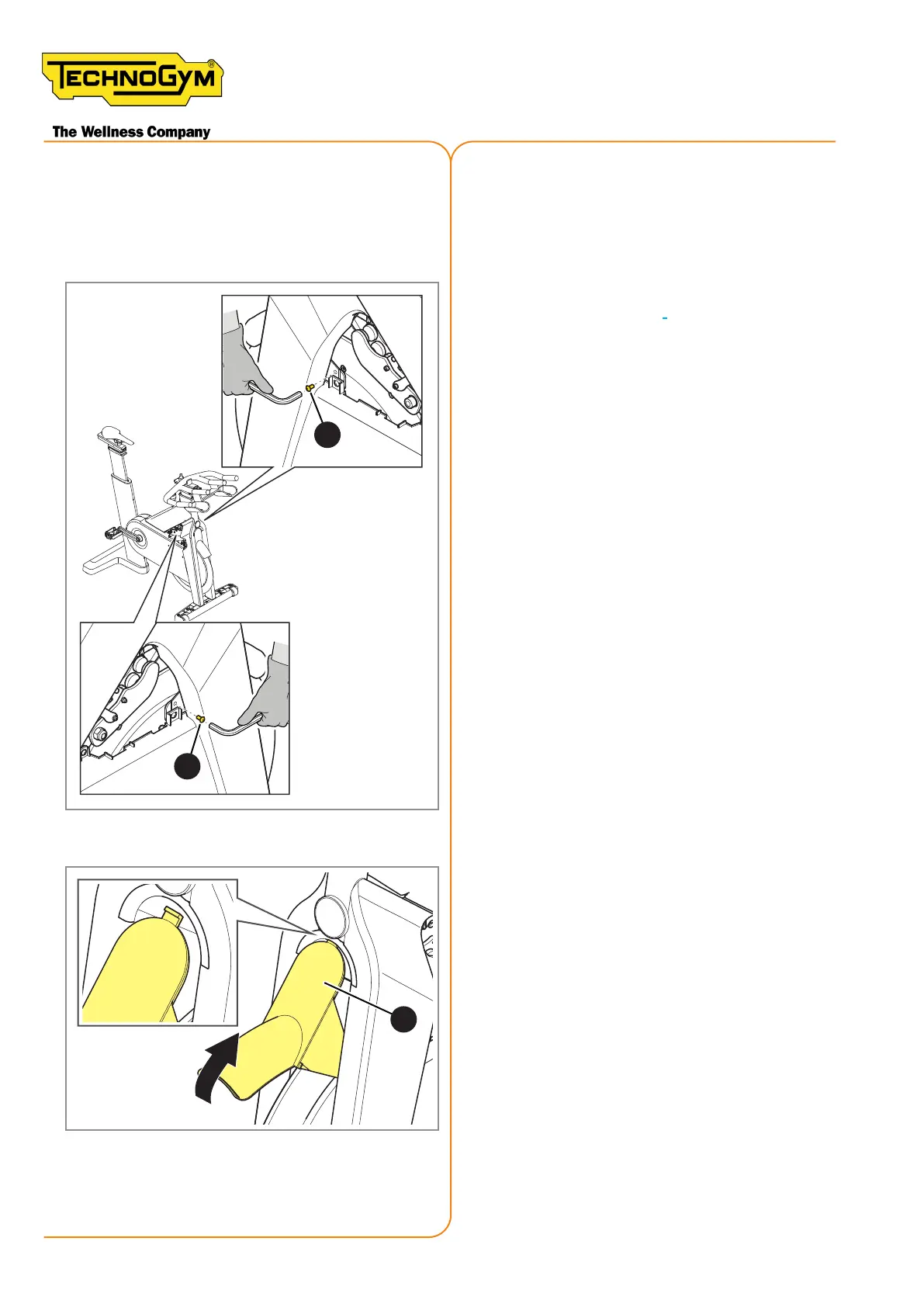

Figure 141
Remove the brake guard as indicated in “11.3.1
Removing brake guards”.
1. Remove the screws (1) with a 3 mm Allen
wrench.
2
Figure 142
2. Lift the mudguard protection (2) and re-
move it.
Totthemudguardprotectionbackonthebikefol-
low the aforementioned procedure in the reverse or-
der.
