Technogym Group Cycle D92 - Removing the Left Pedal Crank

11.4.2 REMOVING THE
LEFT PEDAL CRANK
1

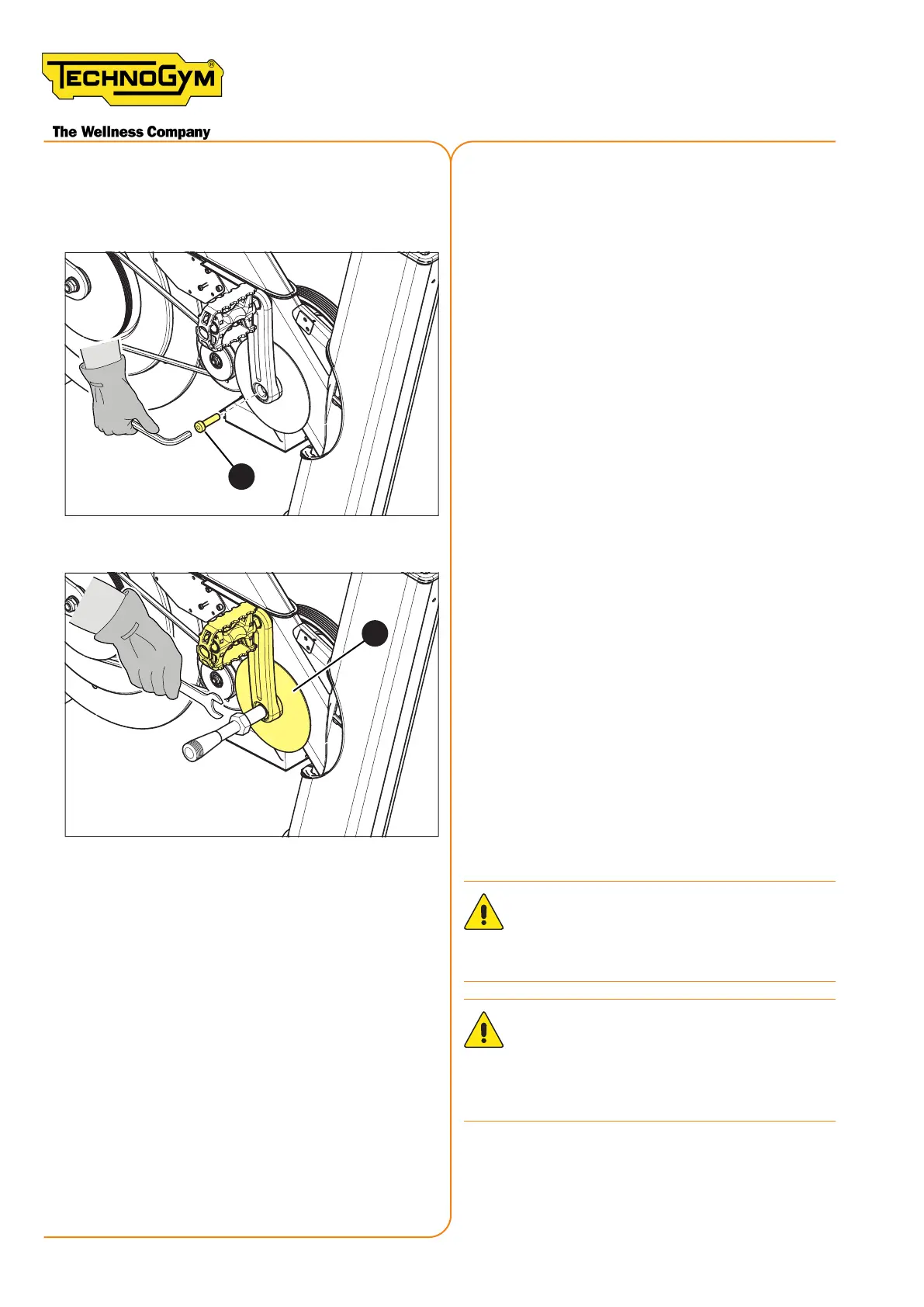

Figure 146
Remove the main left guard as indicated in
“11.3.3 Removing the main left guard”.
1. Remove the screw (1) with an 8 mm Allen
wrench.
2
Figure 147
2. Remove the pedal crank (2) with a pedal
crank remover.
WARNING: tighten the screw (1) with a
torque wrench set between 47Nm (34.7
lbf-ft) and 54Nm (39.8 lbf-ft).
WARNING: The pedal cranks must be
tightened individually, one at a time.
Counteract the force applied to the
torque wrench using the pedal crank.
Tottherightpedalcrankbackonthebikefollow
the instructions in “11.4.3 Replacing the right and
left pedal crank”.
New Group Cycle (D92):
Technical Service Guide - Rev. 5.1
