Technogym Group Cycle D92 - Disassembling the Seats Horizontal Slider Assembly

3

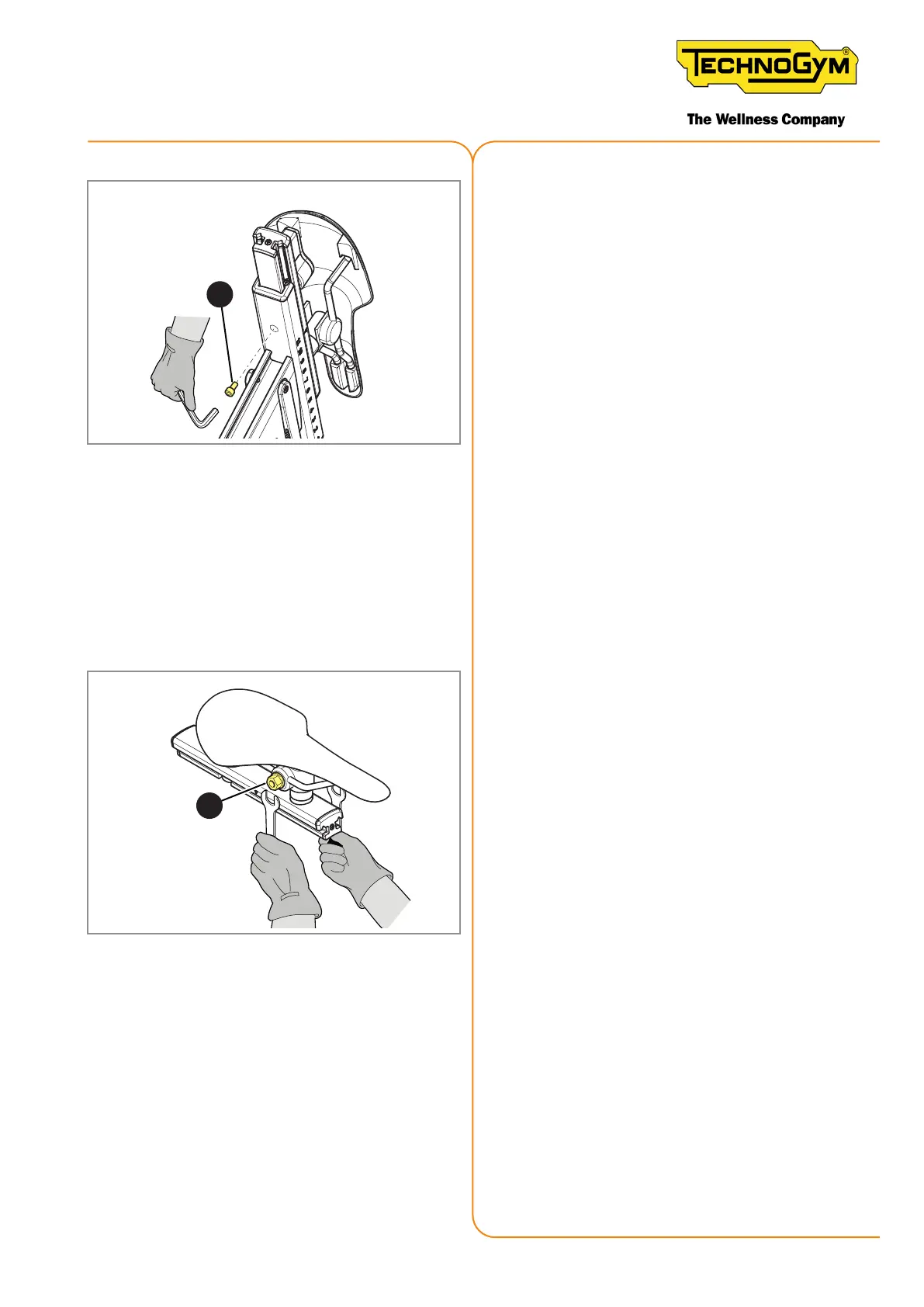

Figure 210
3. Remove the screw (3) with a 4mm Allen
wrench.
4. Remove the seat assembly.
Tottheseatassemblybackonthebike,followthe
aforementioned instructions in the reverse order.
11.7.2 DISASSEMBLING
THE SEAT’S
HORIZONTAL SLIDER
ASSEMBLY
1
Figure 211
Remove the seat as indicated in “11.7.1 Remov-
ing the seat”.
1. Loosen la screw (1) with two 13mm
wrenches.
New Group Cycle (D92):
Technical Service Guide - Rev. 5.1
