Technogym Group Cycle D92 - Checking the Alignment between the Hole and the Tooth of the Knob

6.5.1 CHECKING THE ALIGNMENT BETWEEN THE HOLE AND
THE TOOTH OF THE KNOB
1. Remove the lens and the STOP card, turn the knob anti-clockwise to the limit stop and check
the alignment between the hole and the tooth.

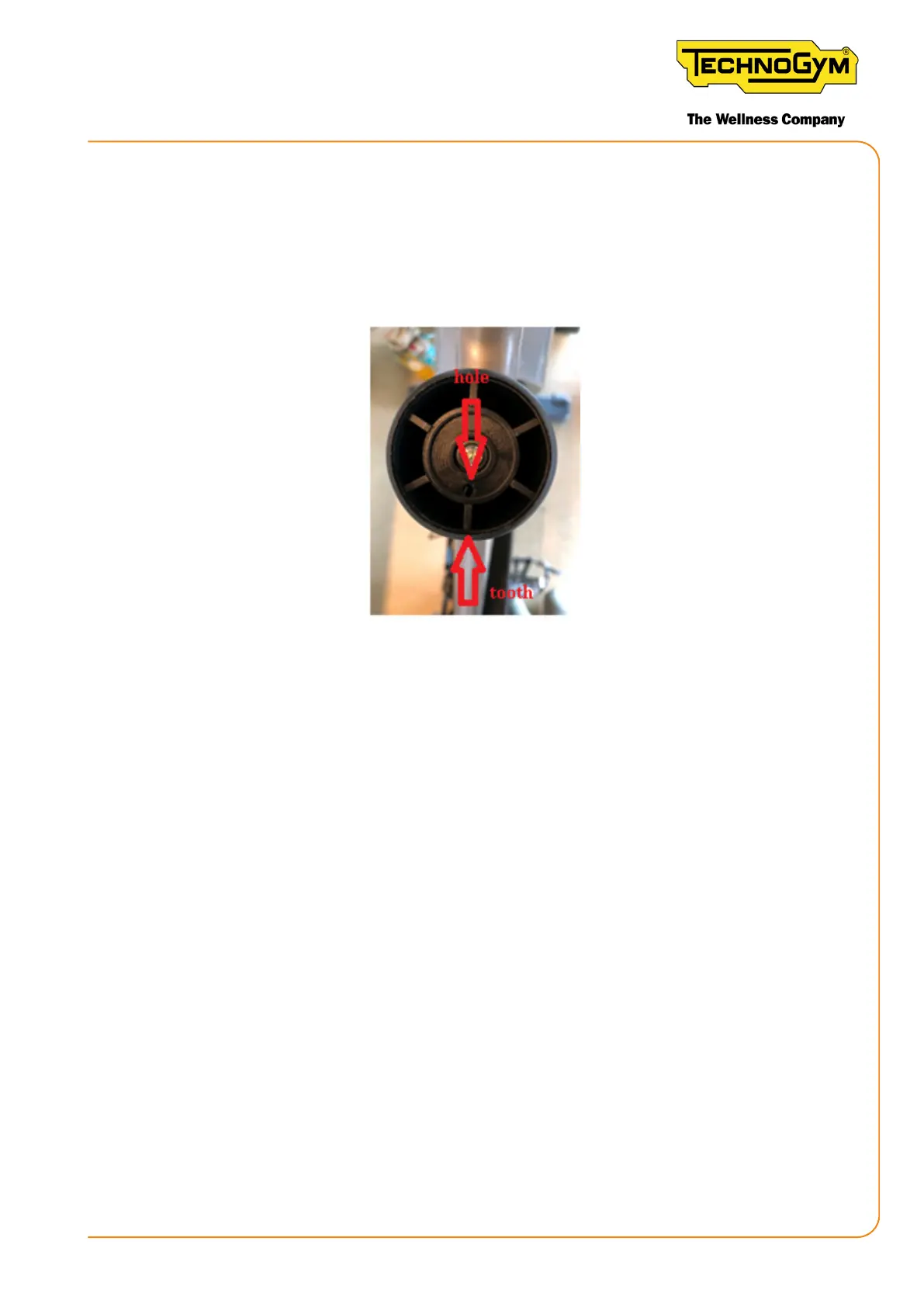

Figure 27
If the position is not correct, adjust the self-locking nut (23) as shown below.
New Group Cycle (D92):
Technical Service Guide - Rev. 5.1
