Technogym Group Cycle D92 - Belts and Flywheel; Tightening the Transmission Belt

11.5 BELTS AND
FLYWHEEL
11.5.1 TIGHTENING THE
TRANSMISSION BELT
2
1
1

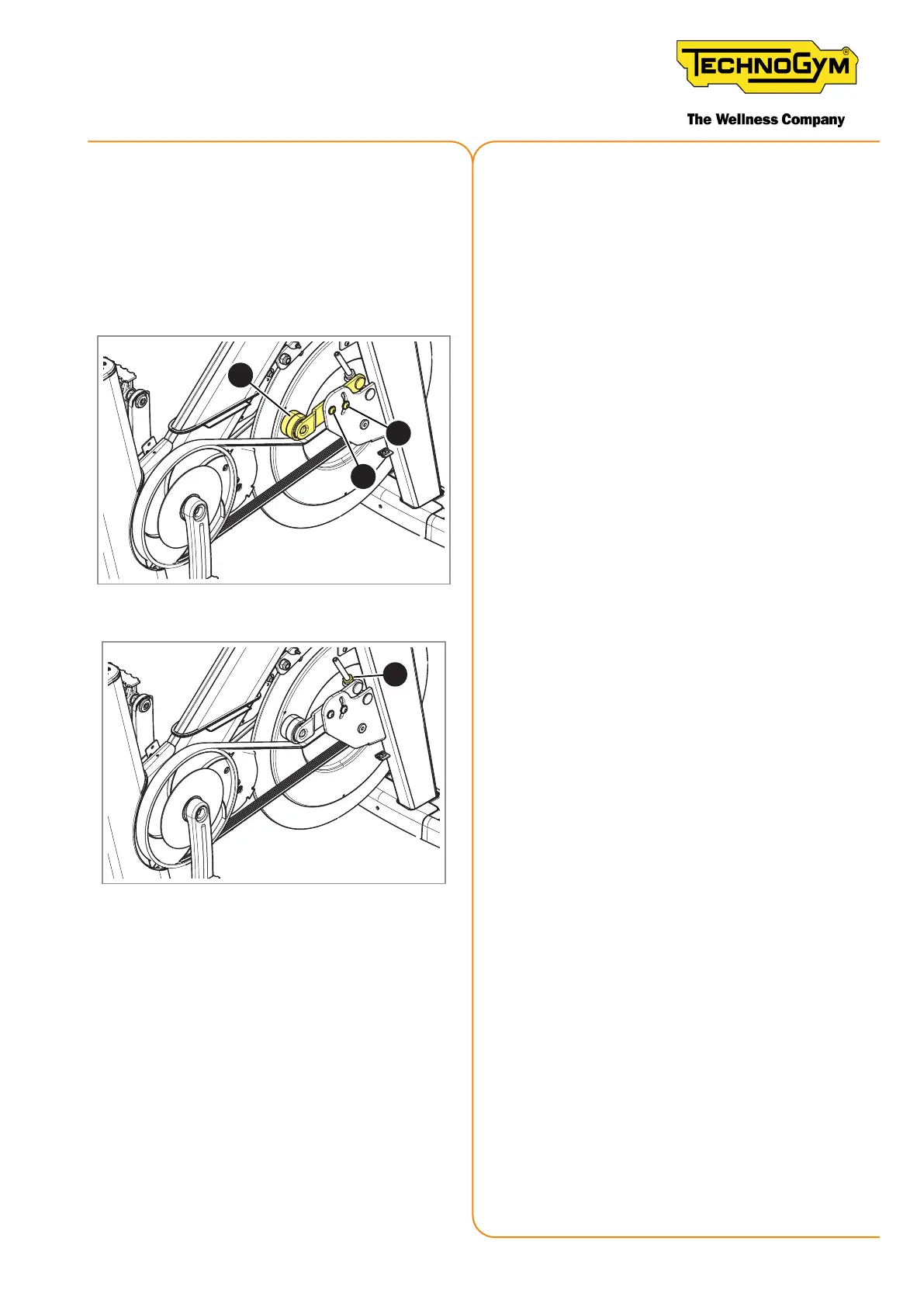

Figure 149
Remove the brake guard as indicated in “11.3.1
Removing brake guards”.
Remove the main right guard as indicated in
“11.3.2 Removing the main right guard”.
1. Loosen the screws (1) securing the pulley
(2) using a 6mm Allen wrench.
3
Figure 150
2. Loosen the nut (3) with a 17 mm wrench.
New Group Cycle (D92):
Technical Service Guide - Rev. 5.1
Document uncontrolled when printed
Page 157
