Technogym Group Cycle D92 - Disassembling the Seats Guard

11.7.5 DISASSEMBLING THE SEAT’S GUARD
1

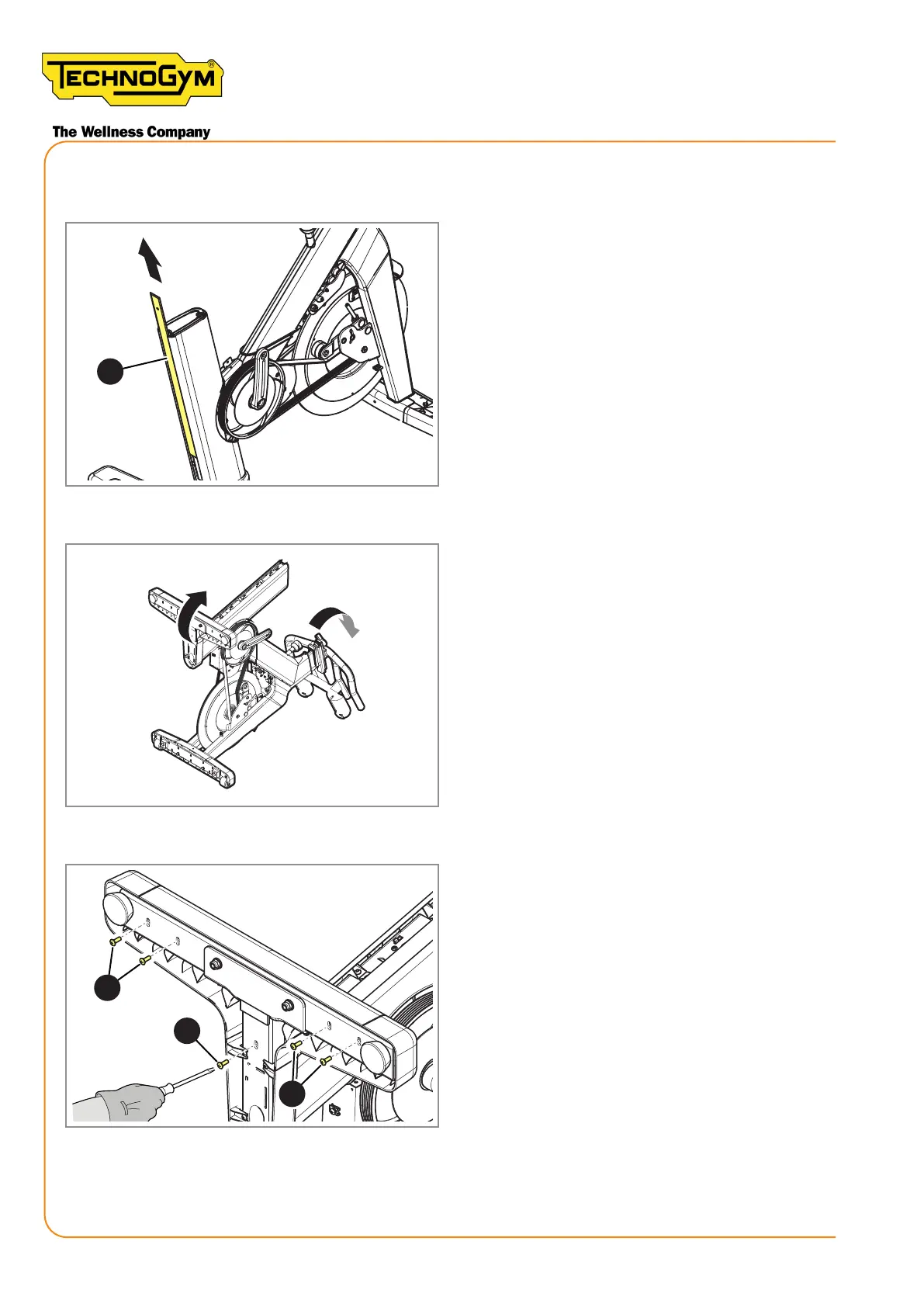

Figure 235
Remove the main guards as indicated in “11.3.3
Removing the main left guard”.
Remove the seat’s vertical slider as indicated in
“11.7.3 Disassembling the seat’s vertical slider”,
from point 1 to point 6.
1. Remove the prole (1).
Figure 236
2. Rotate the bike until the handlebar touch-
es the oor.
2
2
2
Figure 237
3. Remove the screws (2) using a medium
Phillips screwdriver.
New Group Cycle (D92):
Technical Service Guide - Rev. 5.1
