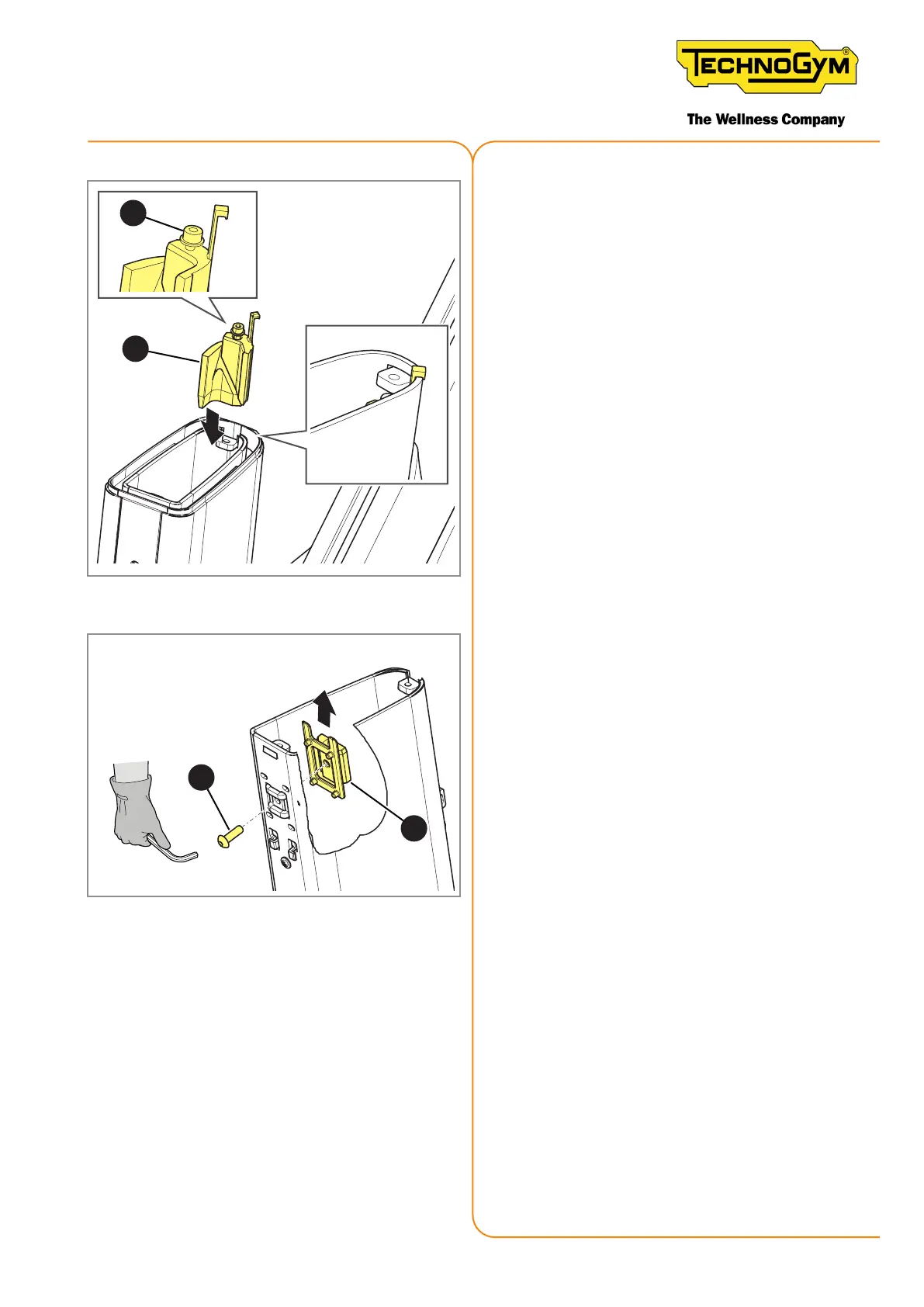

Figure 233
2. Loosen the screw (2) and replace the reg-
ister (1).
3. Tighten the screw (2).
4
3
Figure 234
Disassemble the seat guards as indicated in
“11.7.5 Disassembling the seat’s guard”, from
point 1 to point 12
4. Remove the screw (3) with a 3mm Allen
wrench.
5. Remove the register (4).
6. Replace the register (4) and tighten the
screw (3).
