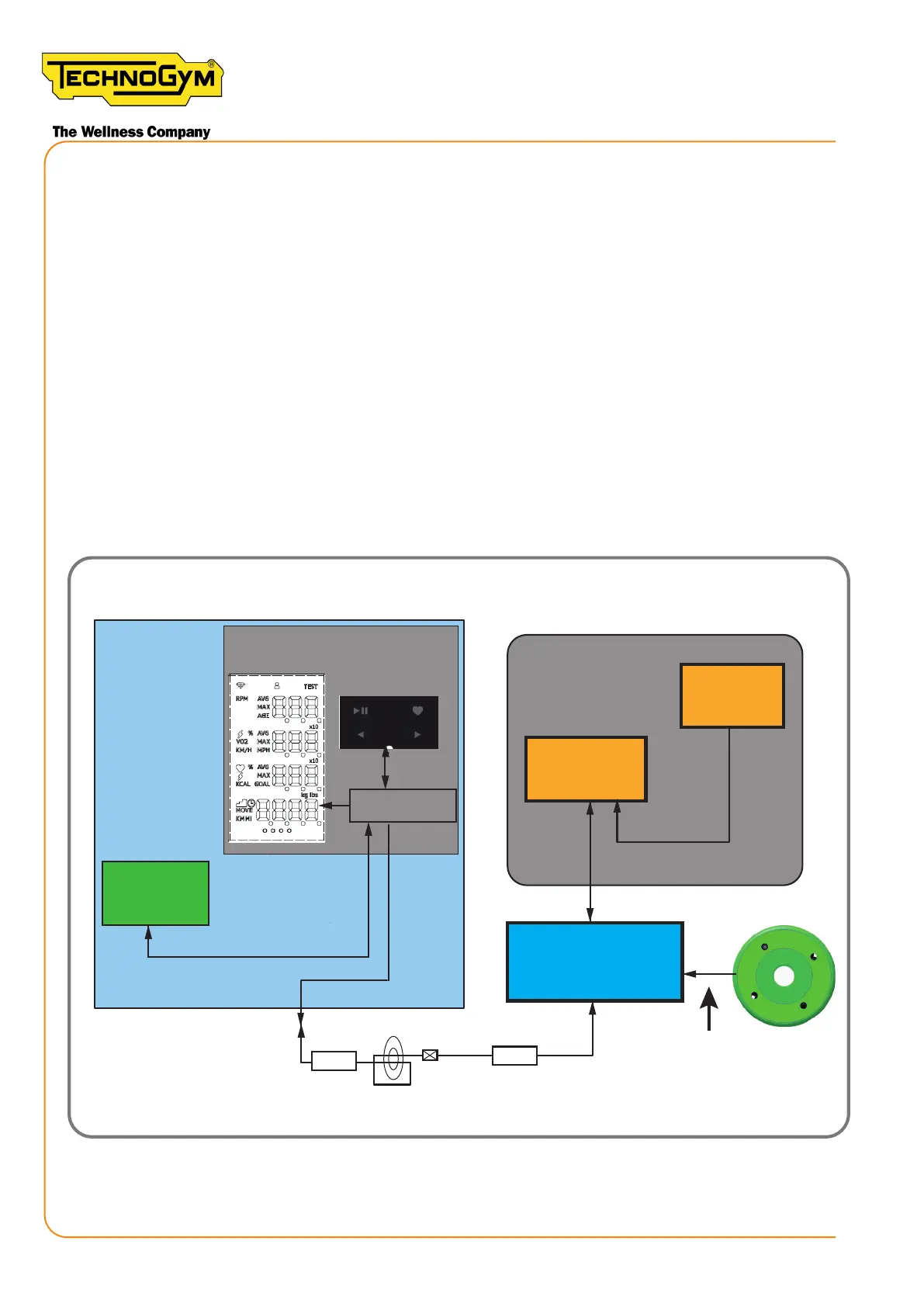

2.7 CABLE DIAGRAM (CONNECT VERSION)
2.7.1 OLD ELECTRONICS CABLE DIAGRAM (REV. 1)
The old electronics rev.1 - with the TONIC generator and Wa Sensor TONIC board - is installed
in the following equipment:
PRODUCED IN ITALY:
D92CBNE0**1 (it): all SN up to D92CBNE016104414.
D92CBNE0**0 (it): from SN D92CBNE017003580 to D92CBNE017007393.
PRODUCED IN TAIWAN:
D92CBNE0**0 (tw): all SN up to D92CBNE016009999.
D92CBNE0**1 (tw): starting from SN D92CBNE017100000 and following.
VOLTAGE
CONVERTER
CPU BOARD
Generator
Single group
NFC BOARD
WATT SENSOR
BOARD
TOUCH
KEYBOARD
BOARD
DISPLAY
HALL
SENSOR
Patch
connection
High voltage
+5.5 V
TX and RX
RPM
+5.5 V
TX and RX
RPM
Complete
CONSOLE
CU0810
CU0811
Single group
Figure 5
New Group Cycle (D92):
Technical Service Guide - Rev. 5.1
Document uncontrolled when printed
Page 24
