Technogym Group Cycle D92 - Removing the Brake Assembly

11.5.4 REMOVING THE
BRAKE ASSEMBLY
2
1

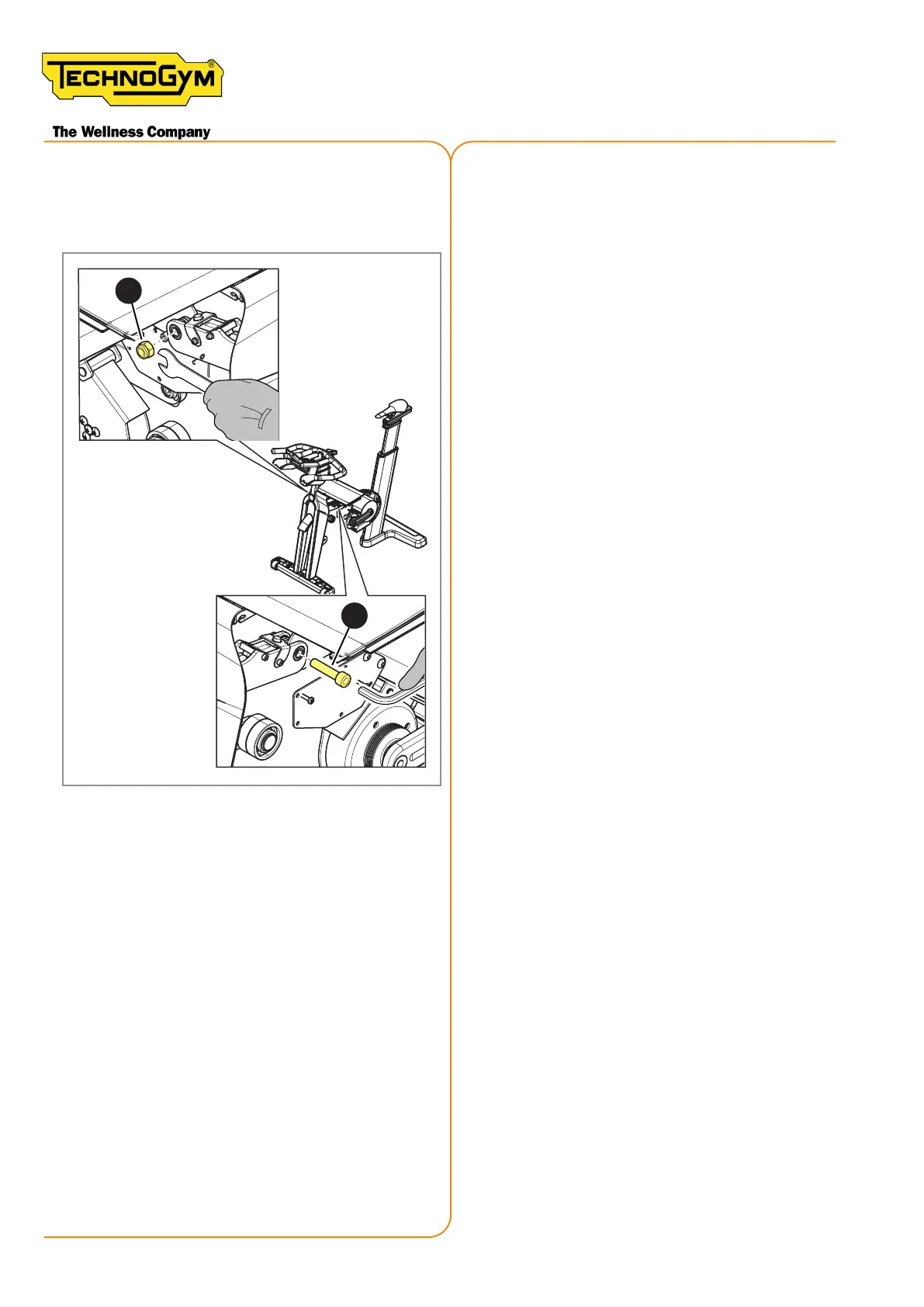

Figure 166
Remove the brake guard as indicated in “11.3.1
Removing brake guards”.
1. Remove the screw (1) and the nut (2)
with an 8 mm Allen wrench and a 17 mm
wrench.
New Group Cycle (D92):
Technical Service Guide - Rev. 5.1
