6.1.5 REPLACING THE CONSOLE
Each time the console is replaced, the following is necessary:
• upgrade the console SW using the USB upgrade key as soon as synchronized (with PC Synch);
• conguretheconsole,usingtheEquipmentSetupApp.
6.1.6 REPLACING A COMPONENT THAT INTERACTS WITH
THE BRAKING SYSTEM (E.G. KNOB, ETC.)
If a component is replaced that interacts with the braking system, the following is necessary:
• calibrate the brake. (“6.5 Brake calibration”)
6.1.7 REPLACING THE GUIDES
Every time you replace the guides, after inserting the new guides it’s requested to follow the be-
low procedure:
1_ Check the presence of the Belleville washer (instead of the at washer). To do this check execute
the following procedure:
Remove in sequence the cover (7) of the lever, the self-locking nut (8) and the washer (9). Clean the
pin (10) from grease with a cloth. Identify the type of the washer.
7
9
8

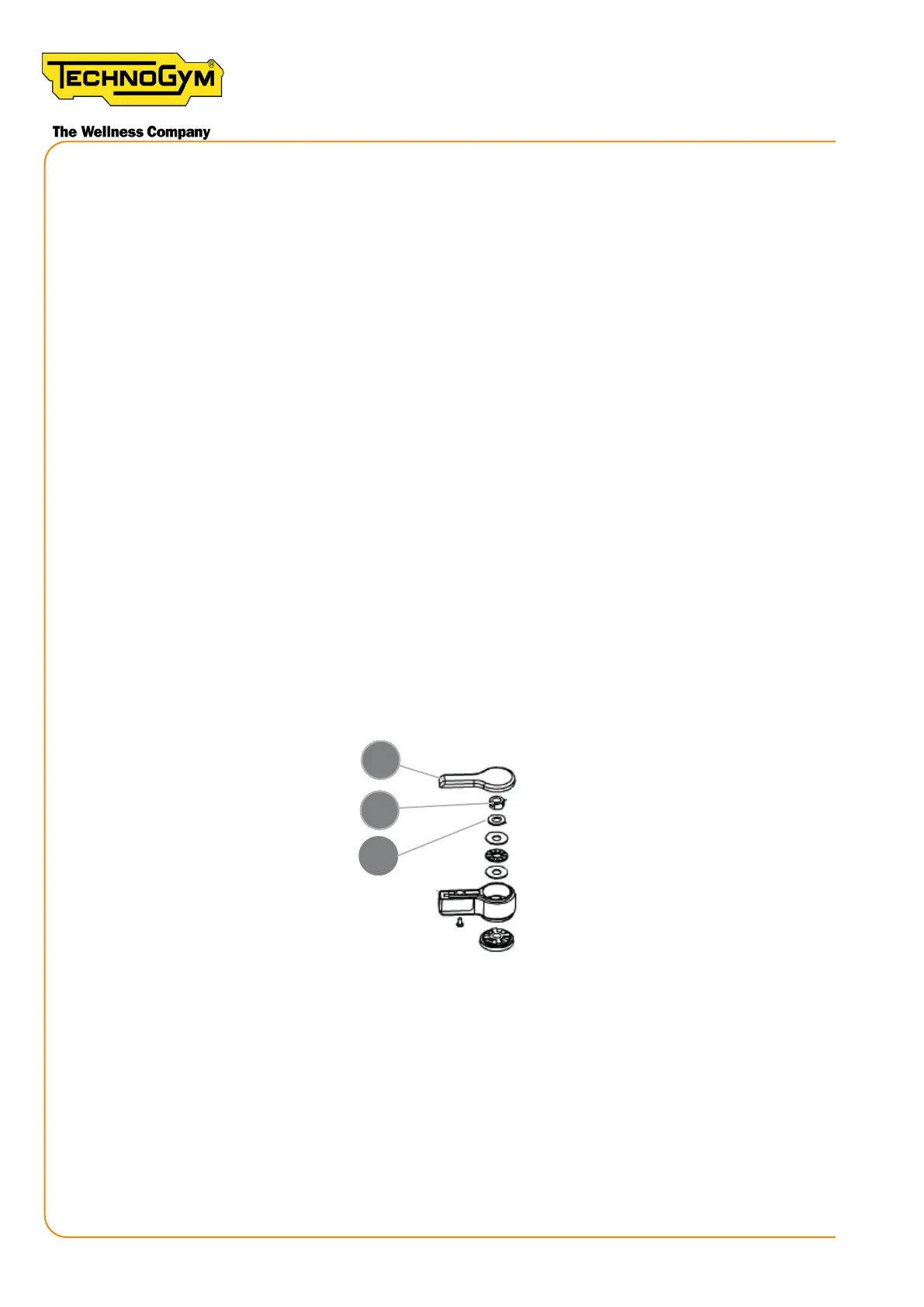

Figure 9
