Technogym Group Cycle D92 - Removing the Pedal Cranks; Removing the Right Pedal Crank

11.4 REMOVING THE
PEDAL CRANKS
11.4.1 REMOVING THE
RIGHT PEDAL CRANK
1

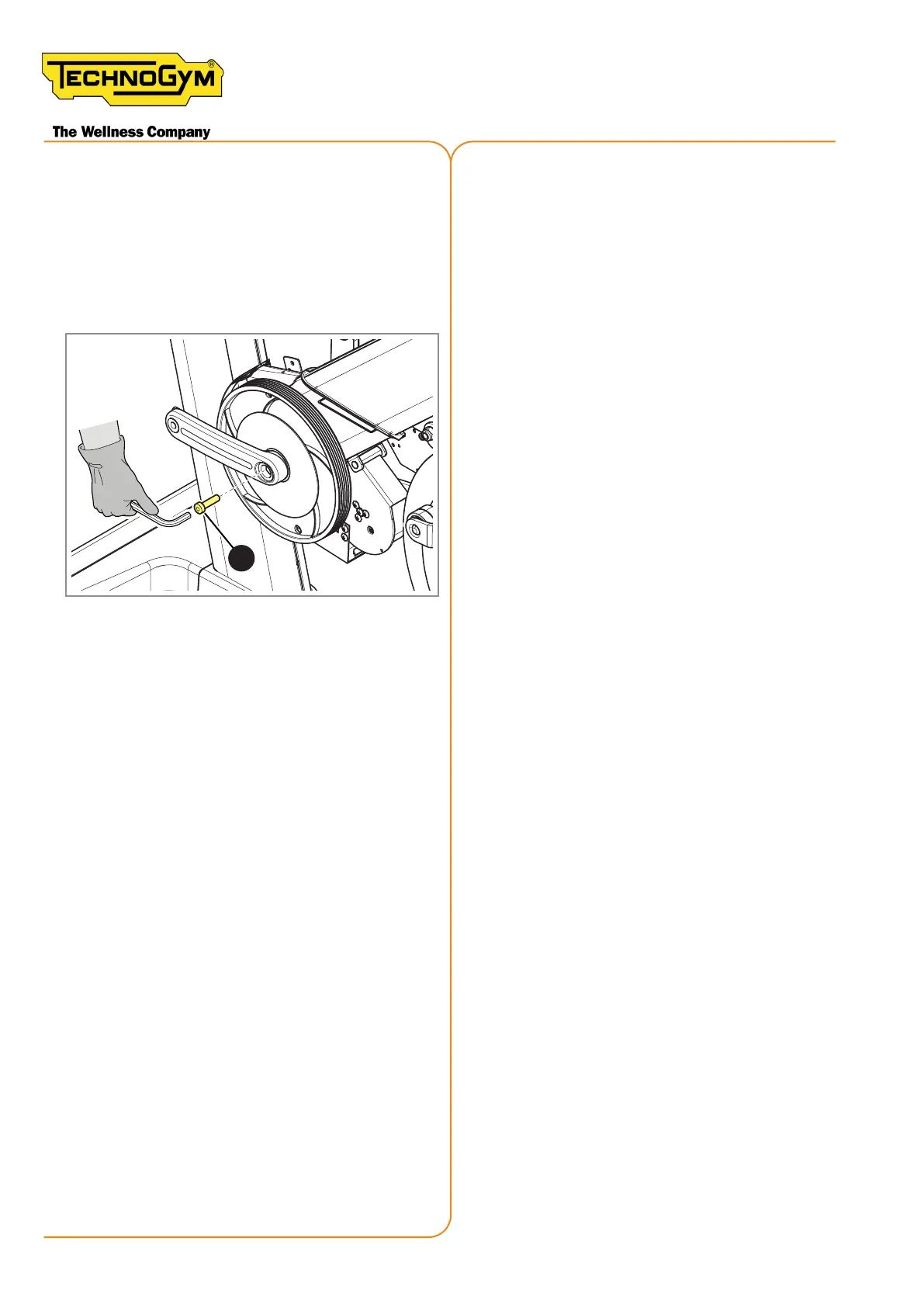

Figure 143
Remove the main right guard as indicated in
“11.3.2 Removing the main right guard”.
Release tension from the transmission belt as
indicated in “11.5.1 Tightening the transmis-
sion belt”.
1. Remove the screw (1) with an 8 mm Allen
wrench.
