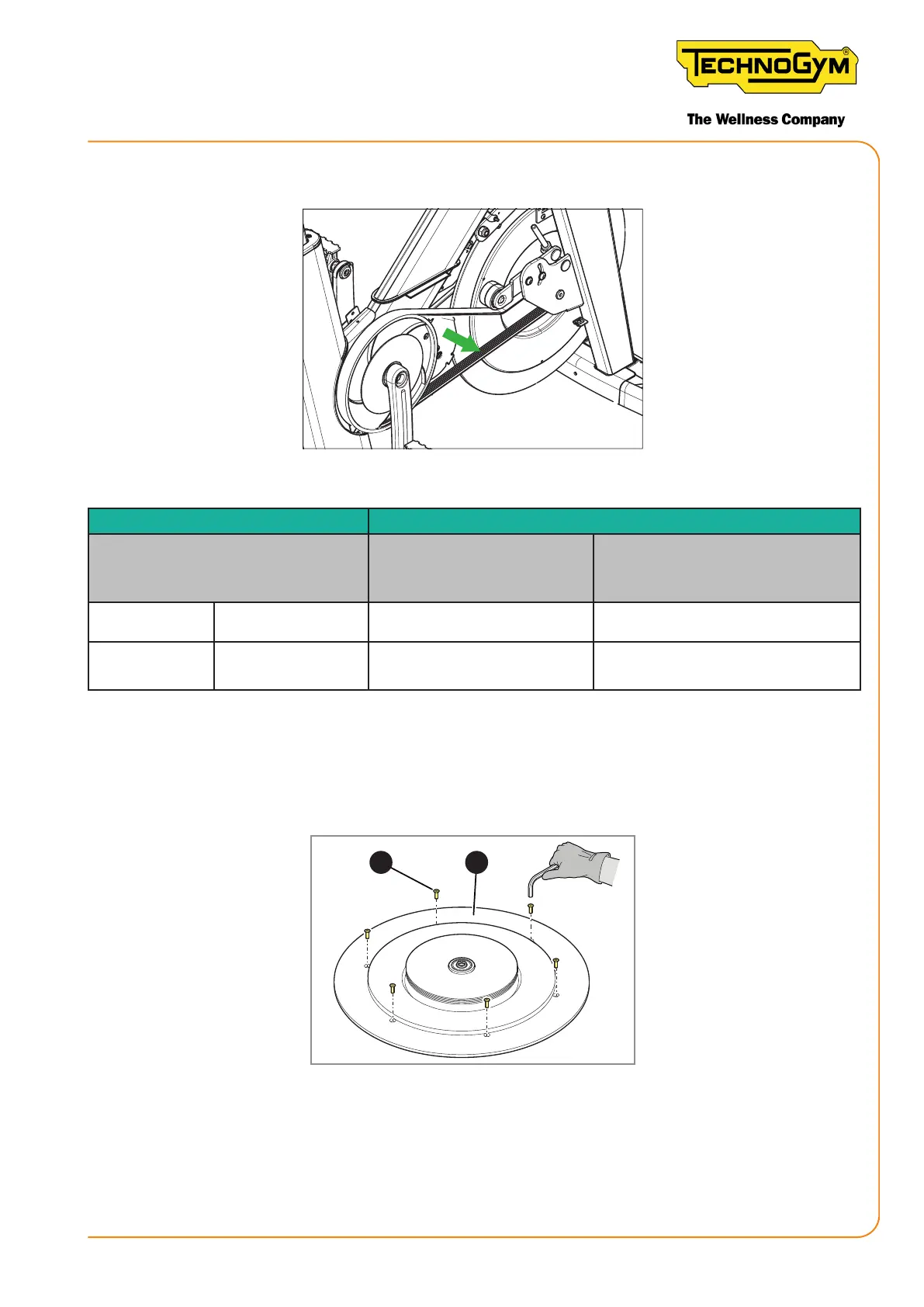

12.3 TRANSMISSION BELT
Figure 255
TYPE OF BELT TENSIONING
Belt replaced with a new
one
Belt loosened / removed and
then the same one reassembled
on the equipment
New Model S0K001513AA 120 ±5 Hz 105 ± 5 Hz
Old Model S0K000671AB 110 ± 5 Hz 105 ± 5 Hz
Table 52
The belt tension must be measured in the point indicated by the green arrow.
12.4 FLYWHEEL
15 14
Figure 256
Apply Loctite 243 on the screws (15) and tighten them with a torque equal to 5 Nm.
New Group Cycle (D92):
Technical Service Guide - Rev. 5.1
Document uncontrolled when printed
Page 209
