Technogym Group Cycle D92 - Removing the Main Right Guard

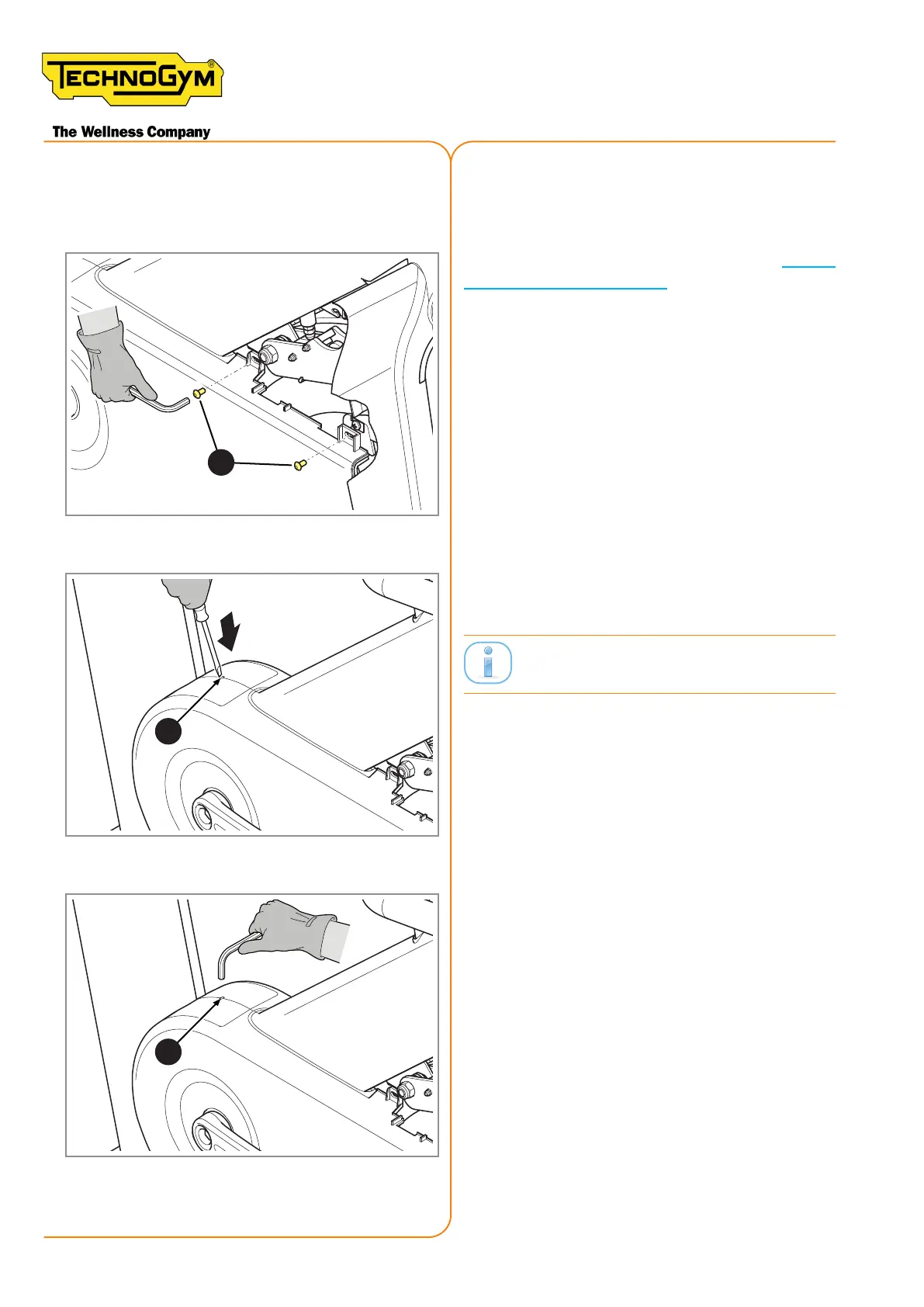

11.3.2 REMOVING THE
MAIN RIGHT GUARD
1
Figure 127
Remove the brake guard as indicated in “11.3.1
Removing brake guards”.
1. Remove the screws (1) with a 3 mm Allen
wrench.
2
Figure 128
2. Push the protective lid (2) inwards with a
small Phillips screwdriver.
The protective lid (2) must be recovered.
3
Figure 129
3. Loosen the screw (3) with a 3 mm Allen
wrench.
New Group Cycle (D92):
Technical Service Guide - Rev. 5.1
Document uncontrolled when printed
Page 144
