11.3 REMOVING GUARDS
 Removetherightguardrst.
11.3.1 REMOVING BRAKE
GUARDS
1

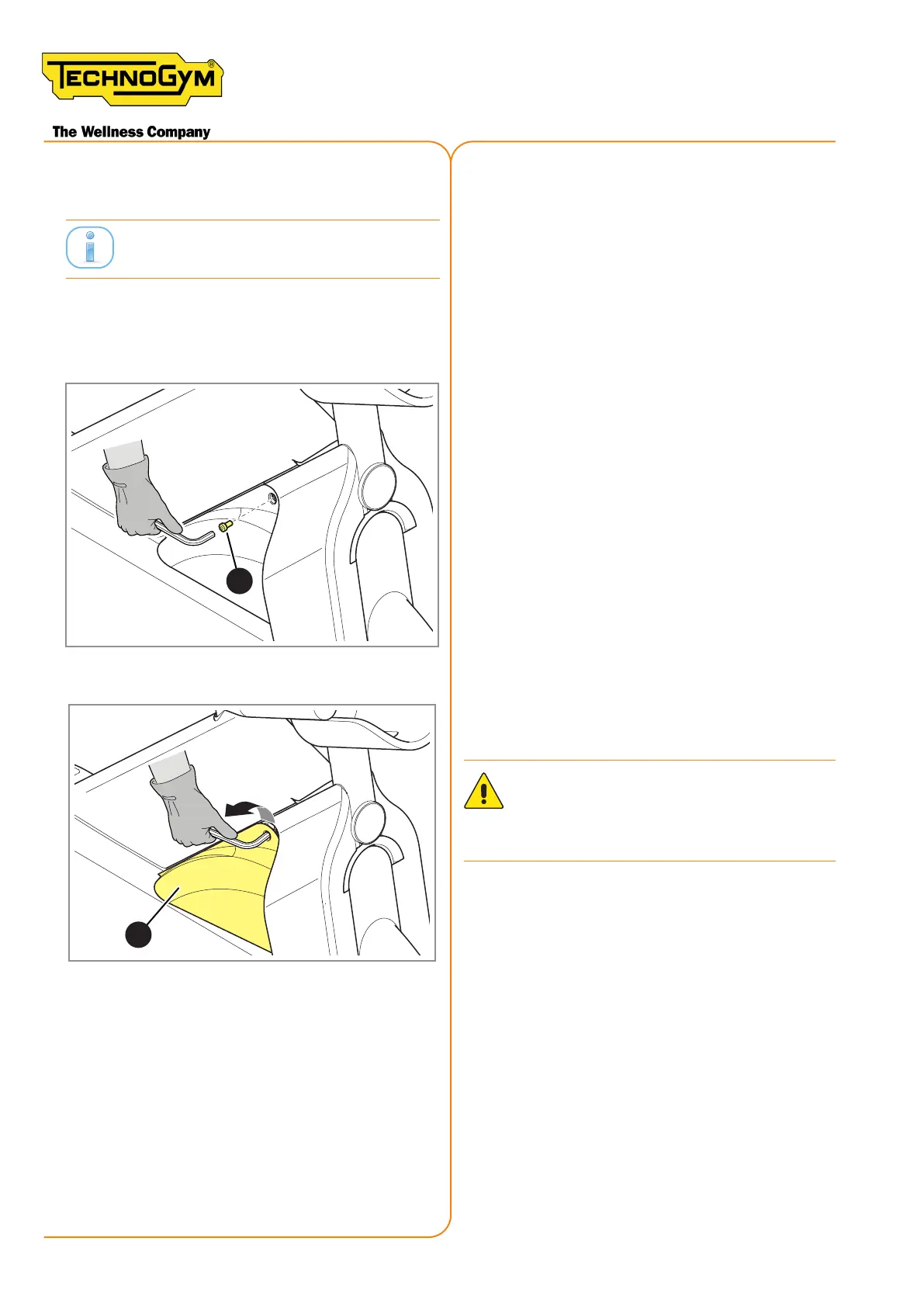

Figure 122
1. Remove the screw (1) with a 4 mm Allen
wrench.
2
Figure 123
2. Insert the Allen wrench in the hole and lift
the guard (2) by pulling outwards.
WARNING: do not use a screwdriver as,
in doing so, you will damage the guard
and gasket.
New Group Cycle (D92):
Technical Service Guide - Rev. 5.1
Document uncontrolled when printed
Page 142
