Technogym Group Cycle D92 - Removing the Pedal Cage

11.2.1 REMOVING THE
PEDAL CAGE
1

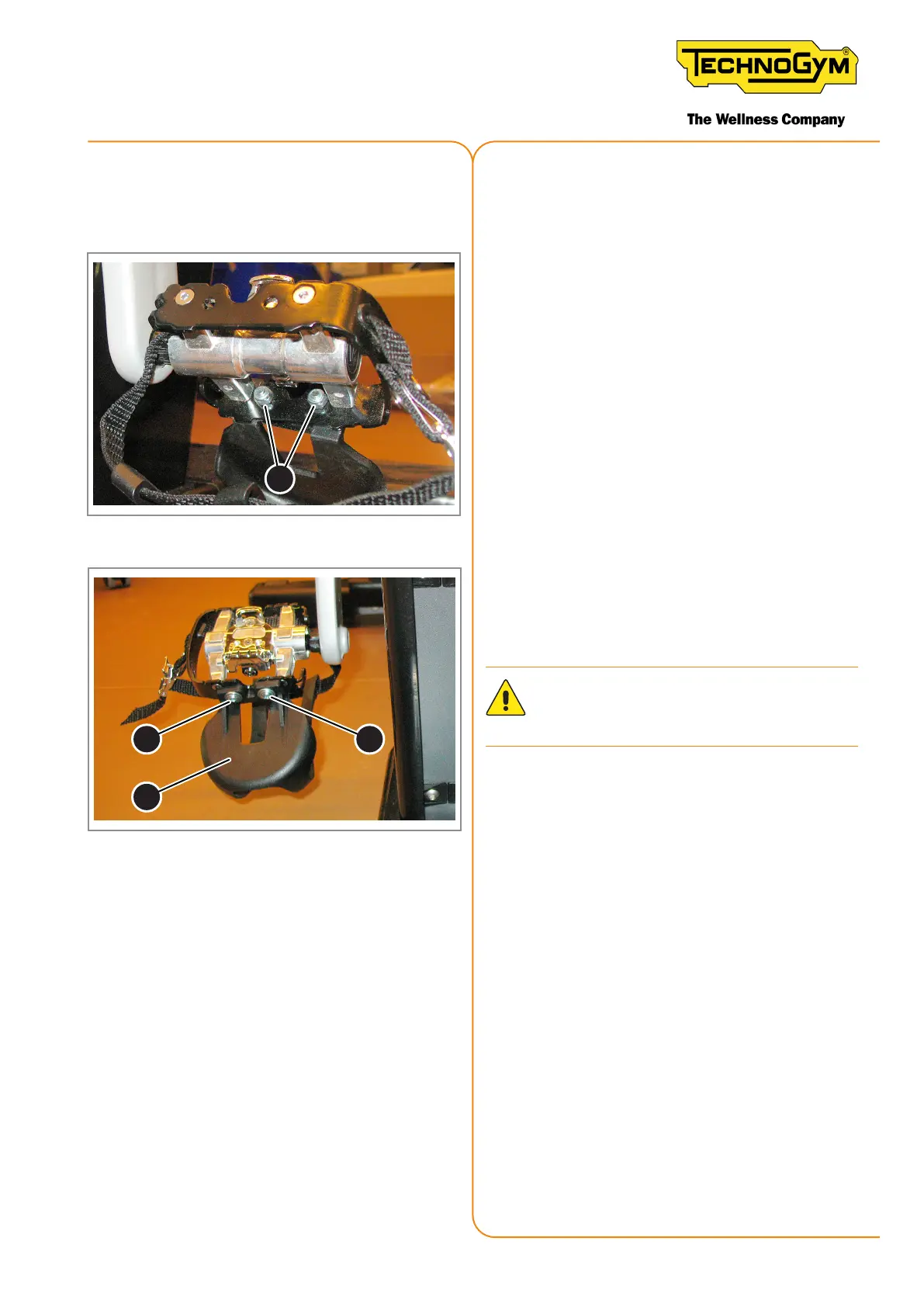

Figure 120
2
3
2
Figure 121
1. Use an 8 mm wrench to lock the internal
nuts (1).
2. Unscrew the screws (2) using a medium
Phillips screwdriver.
WARNING: place the nuts and washers
aside for subsequent reassembly.
3. Remove the pedal cage (3).
New Group Cycle (D92):
Technical Service Guide - Rev. 5.1
