2

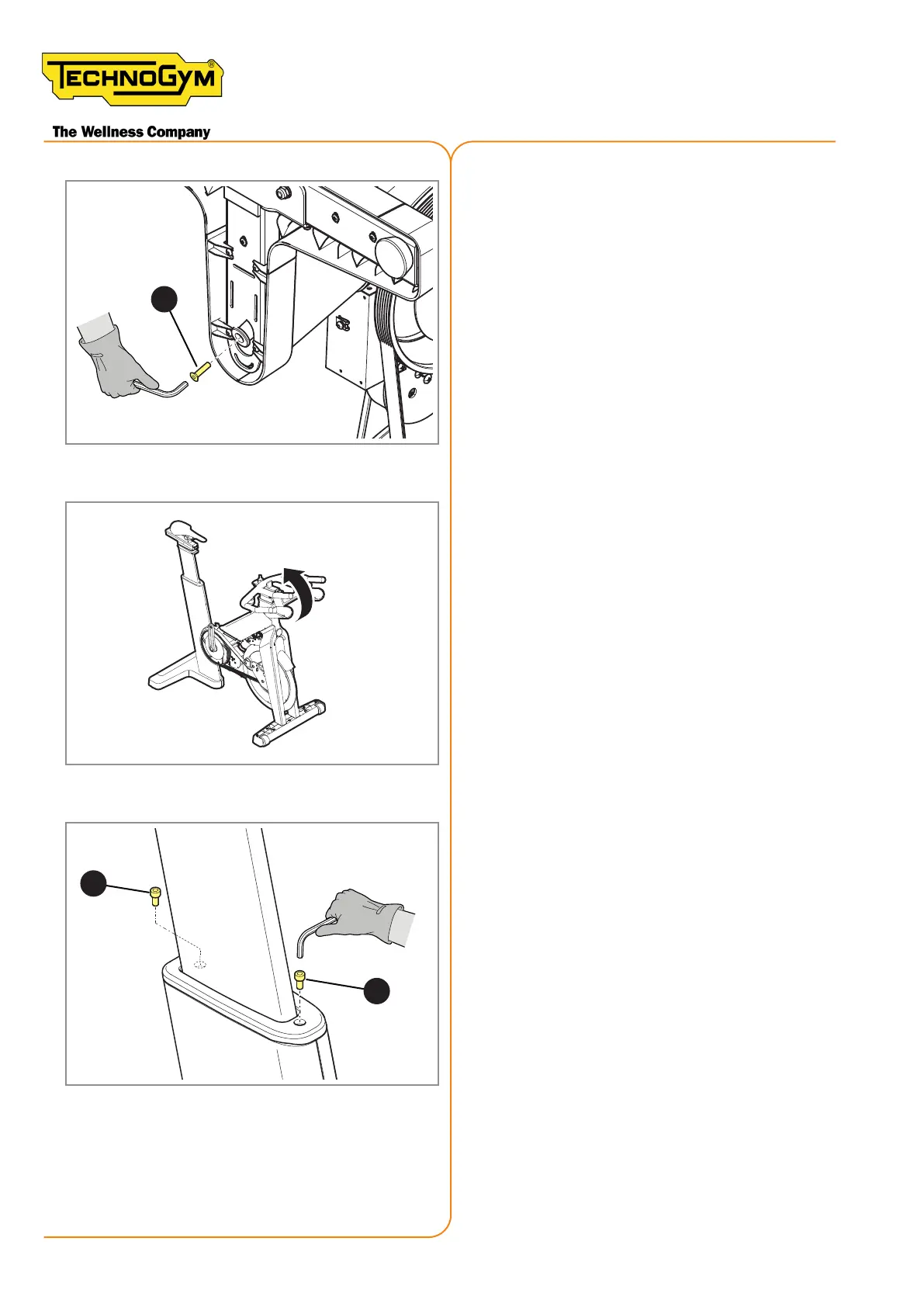

Figure 222
3. Remove the screw (2) of the limit rod,
with a 4 mm Allen wrench.
Figure 223
4. Rotate the bike back to its original posi-
tion.
3
3
Figure 224
5. Remove the screws (3) with a 4 mm Allen
wrench.
