In case of wrong nut, proceed with the relative replacement.

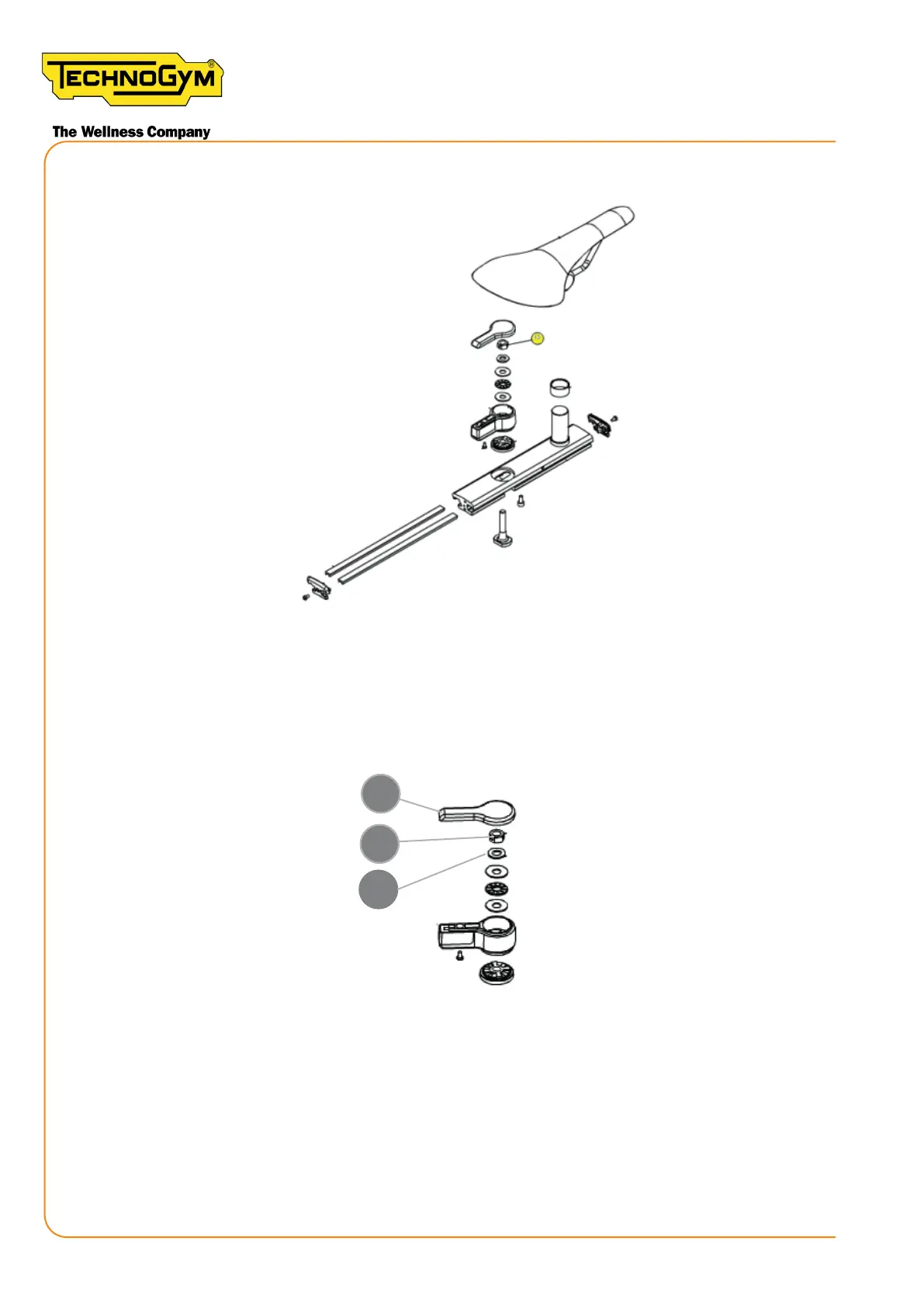

Figure 23- Self-locking nut of the seat horizontal slider assembly
2_Check the presence of the Belleville washer (instead of the at washer). To do this check execute
the following procedure:
2a_ Remove in sequence the cover (7) of the lever, the self-locking nut (8) and the washer (9).
Clean the pin (10) from grease with a cloth. Identify the type of the washer.
7
9
8
Figure 24
New Group Cycle (D92):
Technical Service Guide - Rev. 5.1
Document uncontrolled when printed
Page 54
