INFORMATIONAL NOTE: Starting from SN D92CBNE017001637, an assembly template
was used in production that adjusts the distance between the plasticcoveroftheWaSensor
IDboardandtheywheel to 18 mm.

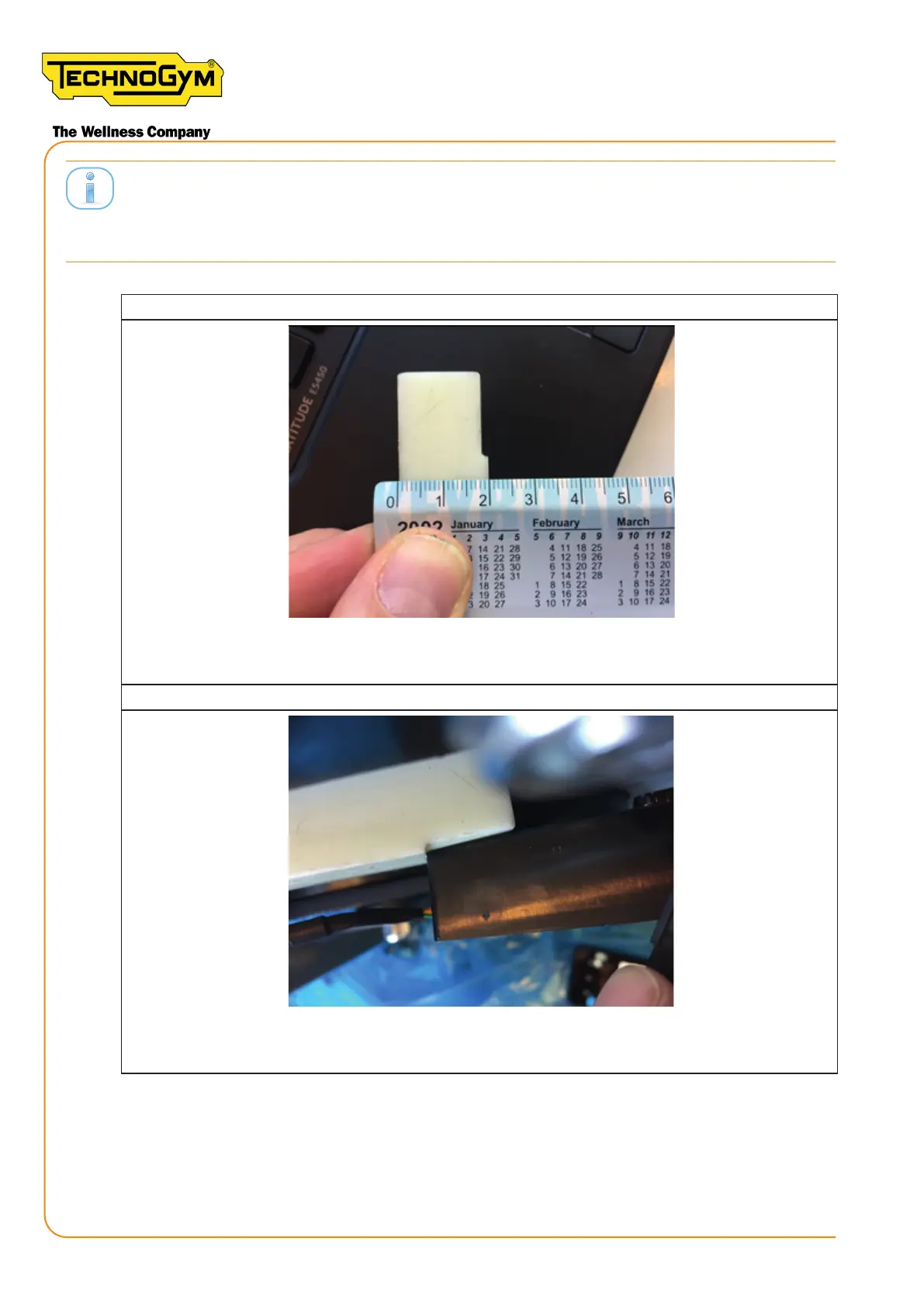

MEASURING THE DIMENSIONS OF THE 18 MM TEMPLATE used in production.
Figure 50
CORRECT ASSEMBLY OF THE TEMPLATE used in production.
Figure 51
New Group Cycle (D92):
Technical Service Guide - Rev. 5.1
Document uncontrolled when printed
Page 72
