If the graph of the signal power relative to the new Group Cycle wi-/ANT+ console is not contin-
uous and/or alternates (uneven peaks of signal intensity) and/or the value of the signal power is
below -80 dBm, this means that the console Bluetooth is not functioning correctly. (See the follow-
ing chart indicated with the arrow). It is therefore necessary to replace the Group Cycle console.
Group Cycle xxxxxxxxx
Group Cycle yyyyyyyyy

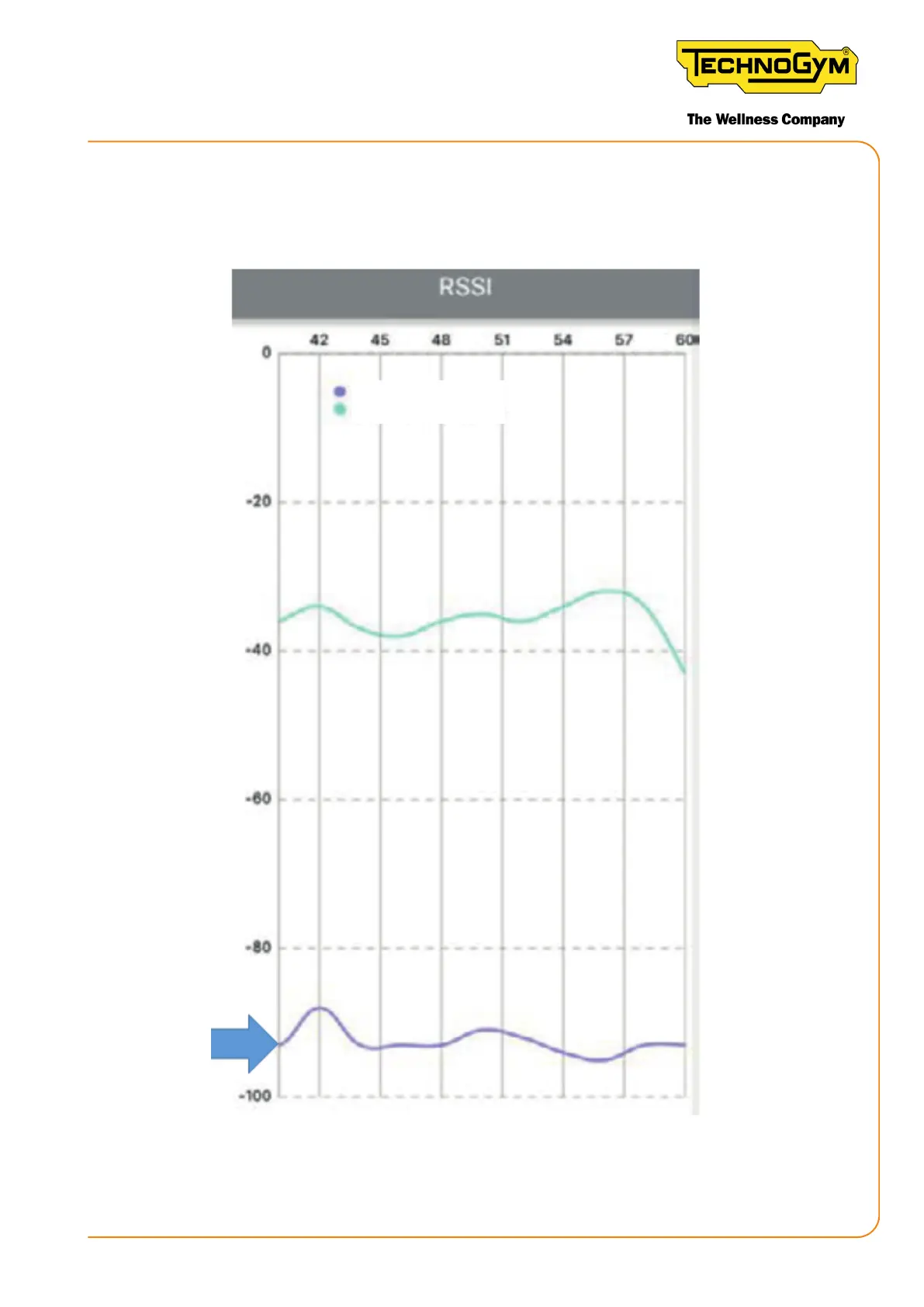

Figure 61 - GRAPH -INDICATED BY THE ARROW- LOWER THAN -80dBm: SIGNAL NOT OK
New Group Cycle (D92):
