7.11.3.1 Lx Limit Setup

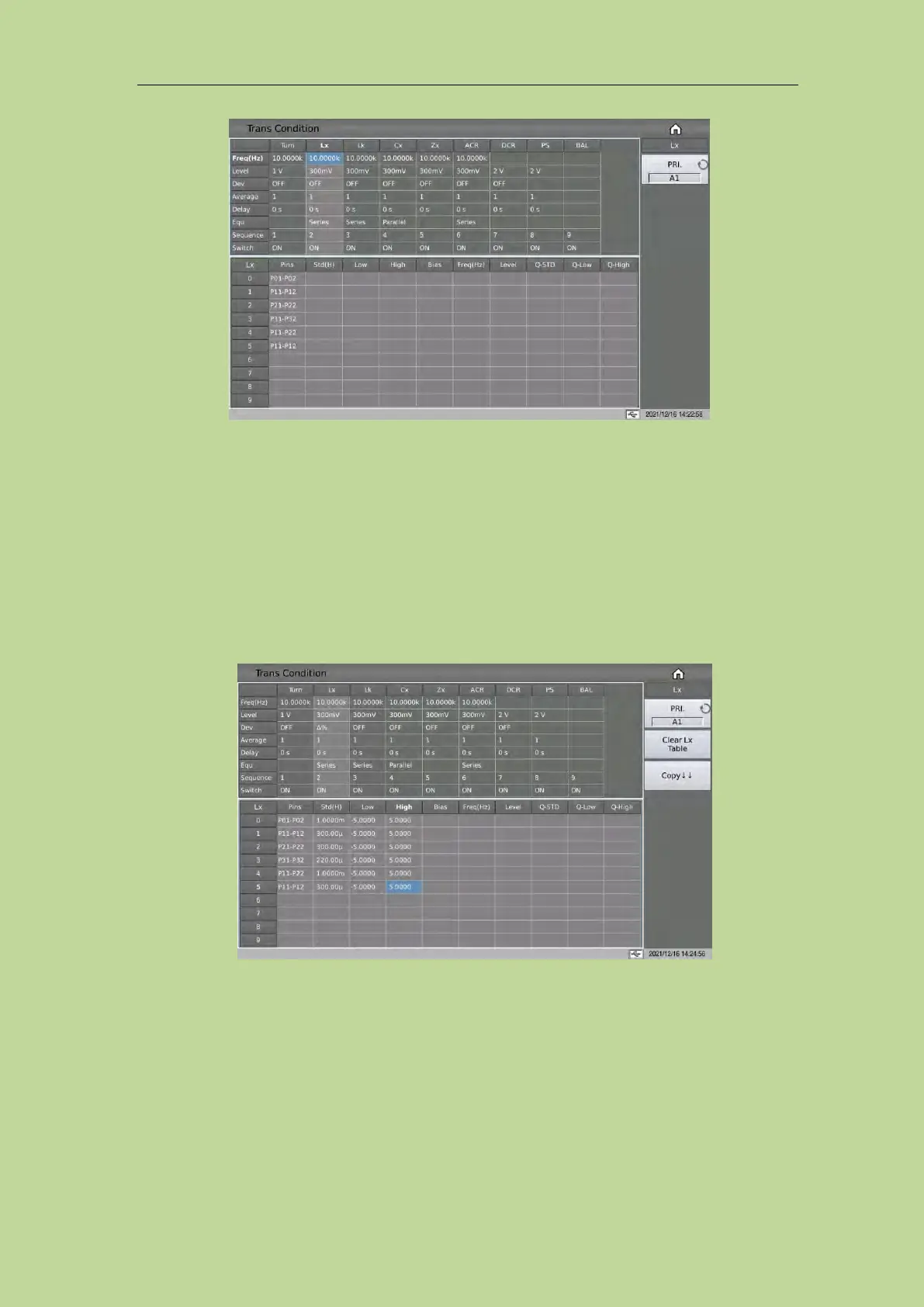

The Lx limit setting table is used to set the Lx standard value, upper and lower limits, bias,
multi-frequency, multi-level, Q standard value and Q upper and lower limits of each transformer
winding.
Touch the Lx limit setting table, or move the cursor to the Lx limit setting area, and use the number
keys, the corresponding magnification or the [ENTER] key to set.
The magnification corresponding to Lx is p, n, μ, m, and the [ENTER] key is x1.
7.11.3.2 Add DC Bias to Lx
The instrument can use a built-in DC bias source of 100mA or 2A. When setting the current value,
the user can set a maximum value of 2A for the sake of compatibility of storage files.
