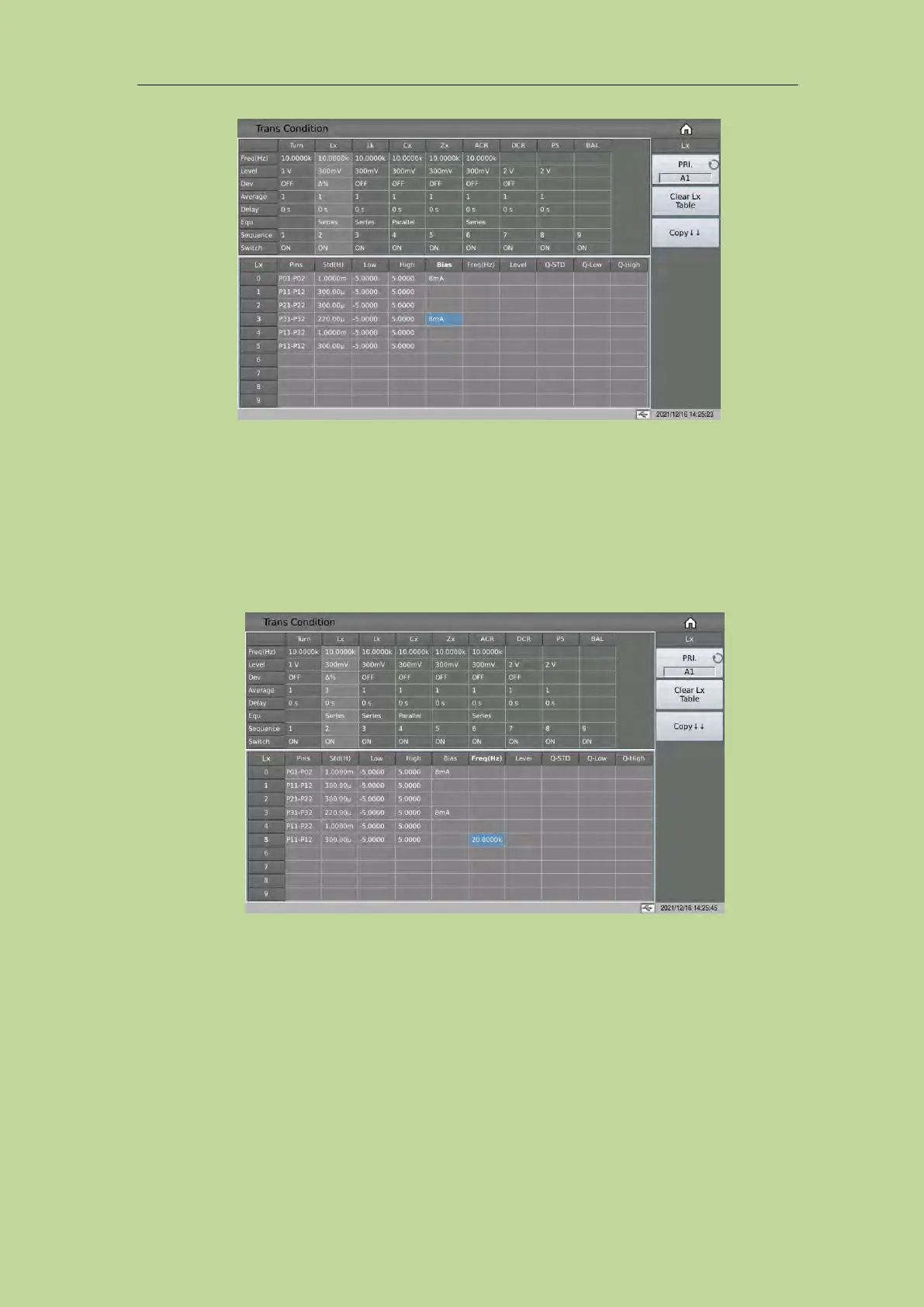

7.11.3.3 Lx Multi-frequency Setup
If the user needs to use different frequencies to test different Lx pins of the transformer, in the
transformer Lx limit setting table, touch or move the cursor to the Lx frequency area. After inputting
the frequency in this area, the frequency here will be automatically used during the test. If the
parameter is not set, the frequency of Lx in the test condition table will be used.
7.11.3.4 Lx Multi-level Setup
If the user needs to use different levels to test different Lx pins of the transformer, in the transformer
Lx limit setting table, touch or move the cursor to the Lx level area. After inputting the level in this
area, the test will automatically use here If the parameter is not set, the Lx level in the test condition
table will be used.
