Topcon X35 Operator's Manual
5
of 1
of 1 rating
296 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
1
1.5
X35 console
Harness Layouts

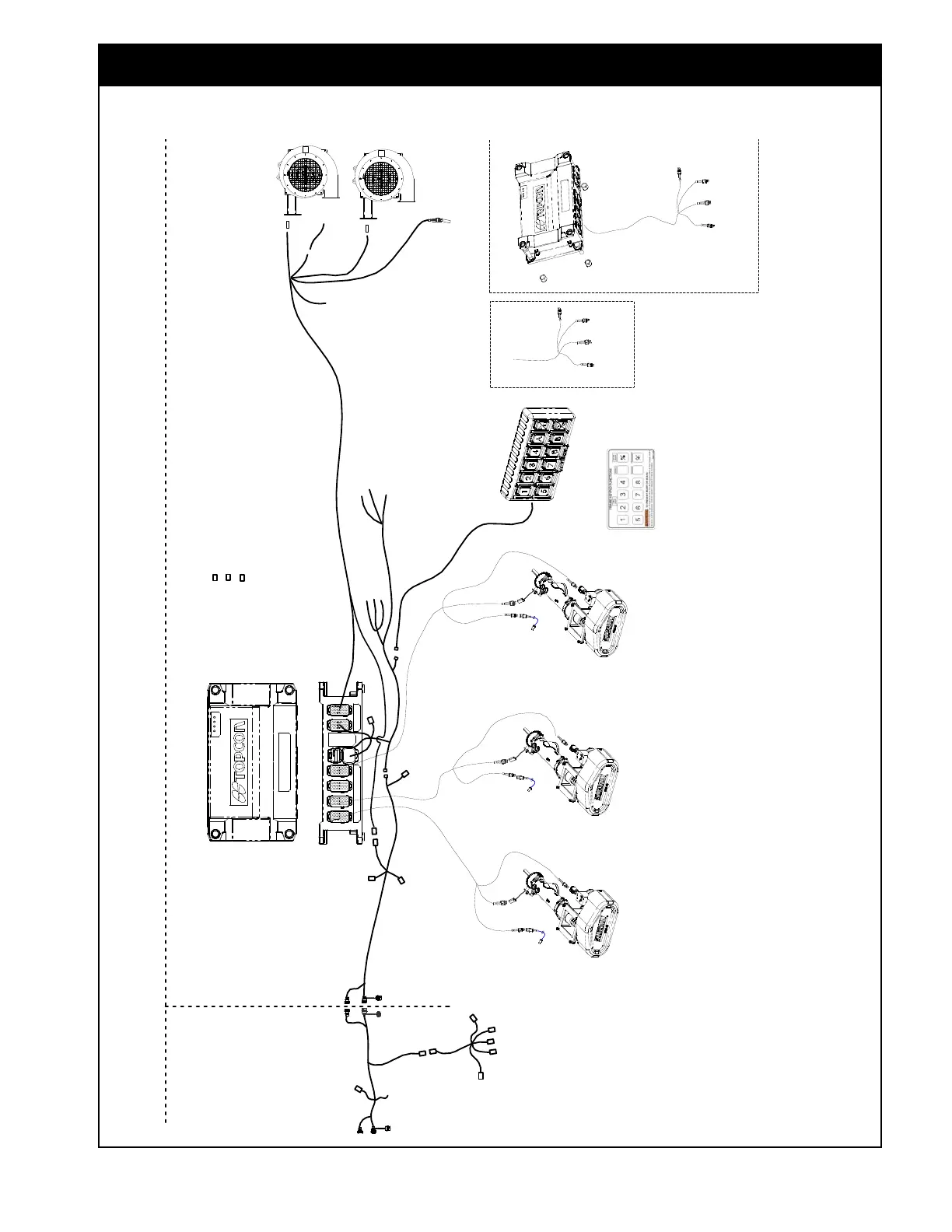

Figure 7.4- Implement/AS T
ank Components - TBHD Units
X35_2015_OnT
ankComp_TBHD.pdf
1
1.2.3
TBHD
7000
Series
Air
Seeders
256
258
Table of Contents
Table of Contents
4
Table of Contents
3
1 System Components
11
Introduction
12
Software Version
12
System Components
12
USB Wi-Fi Antenna
13
Switchbox
14
Harnesses
14
X35 Main Harness
14
Power Extension Harness
15
In-Cab Switchbox Harness
16
Tractor ISOBUS Harness
16
Electronic Control Unit (ECU)
17
I/O ECU (EM-24) (Optional)
17
Master ECU
17
SL2140 Scale Link ECU
18
SLC2810 Remote Display
18
Speed Sensors
19
Case Drain Pressure Switch
19
Low bin Level Sensors
19
BHECU (Blocked Head Electronic Control Unit)
20
Granular Sectional Control Harnesses
20
Section Control Valve Proximity Sensor
20
2 Overview
21
Overview
22
Starting the X35 Console
22
Turning
22
Shutting down
22
Console Toolbar
24
Understanding Main Screens
25
Operations Screen
25
Manipulating Main Viewing Area
26
Common Functions
27
Guidance/Coverage Map
29
Seeder Controller
32
Seeder Controller Mini-View Window
33
Seeder Controller Full Screen Mode
34
Tank Tab/Panel Explained
36
Tank Parameters
38
Configuration Panel
39
Area Counters Panel
40
Working with Global Home Screens
41
Saving a Global Home Screen
41
Overwriting Home Screen
41
Managing Screens
41
Loading (Selecting) Global Home Screen
42
3 Setup
43
Setup
44
Setup Menu Explained
44
User
46
Region
46
Language
46
Time/Date
47
Units
48
Lightbar
48
Environment
49
Map
50
Access Level
51
User Controls
52
Remote Support
53
4 System
55
Features
56
Licenses
56
Console
56
System
56
Guidance
58
Implement
59
Xtend
62
Wireless
63
Quick Start
64
Gps
66
Receiver
67
Output
68
Radar
69
Serial Ports
70
Alarms
71
General Alarms
71
Seeder Alarms
73
Flag Points
77
Isobus
78
Task Controller Setup
78
Universal Terminal Setup
79
Utilities
80
5 Vehicle
81
Selecting an Existing Vehicle
82
Vehicle
82
Setting up a New Vehicle
83
Setting up Vehicle Geometry
87
Antenna
88
Steering
88
6 Implement Setup
89
Selecting an Existing Implement
91
Creating a New Implement Profile
93
Creating a New Profile Based on Factory Templates
93
Create a Custom Implement Profile
99
Ecu
110
ECU Setup
110
ECU Manage
112
Add New ECUS
115
ECU Upgrade
115
Geometry
116
Section Control
119
Sections
119
Timing
122
Section Switch
124
Seeder
125
Granular Setup
125
General Tank Setup
125
Granular Tank Setup
125
Individual Tank Setup
127
Tank Grouping
129
Creating Custom Grouping
129
Selecting from Factory Groupings
129
Drive Setup
131
Control Setup
133
Nh3/Liquid Setup
134
Nh3/Liquid Tank Setup
134
General Tank Setup
134
Individual Tank Setup
134
Flow Settings
136
Control Valve Settings
137
Proportional Valve Settings
137
Proportional Valve Settings
138
Regulator Valve Settings
139
Pressure Settings
140
Fan Settings
141
Pumps Settings
142
Drill Control
143
Lift Master Settings
143
Pack Master Settings
144
Control Settings
145
Accessories
146
Sensor Setup
146
Blocked Head Monitor
147
Granular Sections
153
General Inputs
153
Encoder
153
General Output
154
Drill Fold Setup
154
Weigh Scales
155
Ecu
155
Scales
156
Assignment
157
Pressure Compensation
158
Speed Source
159
Audio
161
Speed & Position
162
Operator Inputs
163
Master Switch
163
In-Cab Switchbox
164
Keypad
164
On Frame (Calibration) Switchbox
167
Switchbox LED Status
167
7 Product Setup
169
Product Setup
170
Adding New Product
171
Adding a New Product Using a Manufacturer Template
173
Adding a Custom Product Without a Template
175
Modifying Product
177
Product Density
178
8 General Operations
179
General Operations
180
Selecting the Product
180
Filling the Tank
183
Determine Product Allocation
186
Calibration - Granular Air Seeder Tank
190
Manual Entry of Calibration Factors
191
Stationary Calibration
192
7000 Series Air Seeders
193
6000 Series Air Seeders
197
Area Test
201
Calibration - NH3 Tank
202
Calibration - Liquid Tank
203
Flow Calibration
205
Wheel Sensor Calibration
206
Fan Settings
209
Checking Distribution Runs and ASC Valves
210
A 7000 Series Air Seeder
210
6000 Series Air Seeder
211
Using Auto Section Control
212
Guidance
215
Virtual Section Switches
215
9 Starting a New Field/Job
217
Introduction
218
Field Menu
220
Selecting an Existing Field
220
Starting a New Field
221
Unload Field
221
Setting Flag Points
222
Removing or Changing Flag Points
222
Field Boundary
223
Recording a Boundary
223
Manipulating Field Boundaries
225
Headland
226
Clear Field Boundary
228
Creating a Field Boundary from a Shapefile
228
Creating a Field Boundary from a Coverage Map
229
Job Menu
230
Selecting an Existing Job
230
Creating a New Job
231
Configure Job Regions
232
Recording Job Information
233
Exporting Job Report
234
Clearing a Job
234
Variable Rate Control
235
10 Monitoring & Managing Files
239
Monitoring & Managing Files
240
Dashboard Items
241
Viewing Information on the Dashboard
240
Configuring the Dashboard
240
Viewing Job Information
245
GPS Details (Mini-View Window)
246
Viewing Diagnostics
247
System Information
248
Inventory Manager
249
11 Wiring Schematics
253
In-Cab Components
254
With Simplified ISOBUS X35 Harness
254
Components on the Air Seeder Tank and Implement
255
TBHD 6000 Series Air Seeders
255
LDG 6000 Series Air Seeders
256
TBHD 7000 Series Air Seeders
257
LDG 7000 Series Air Seeders
258
Nh3/Liquid - Non Bourgault Systems with 6000/7000 Series as
259
Nh3/Liquid - Raven System - no ASC with 6000/7000 Series as
260
Liquid - Bourgault LFC with 6000/7000 Series as
261
Auto Section Control
262
Systems with 6, 8 or 10 Port Primary Manifolds
262
Weigh System Wiring Schematic
263
12 Troubleshooting
265
Start-Up
265
Controls
266
Troubleshooting
266
Operation
268
Start
268
Alarms
269
Guidance
270
Weigh System
270
13 Optional Equipment
271
Implement Switch (Auto-Clutch) Feature
272
Optional Equipment
272
X35 Drill Controll
273
Lift Master Feature
274
Pack Master Feature
275
Pack Master Calibration
279
X35 Blockage Monitoring
280
Mounting the Components
281
Blockage Monitoring with X35 Console
283
Weigh System
285
Scale Link SL2140 in Universal Terminal
285
Remote Display SLC2810
286
Saddle Tank Load Cells
287
Scale Weight Difference
287
Xtend Feature
288
D Index
291
