Topcon X35 - Output

X35 Monitor System Settings
4.14

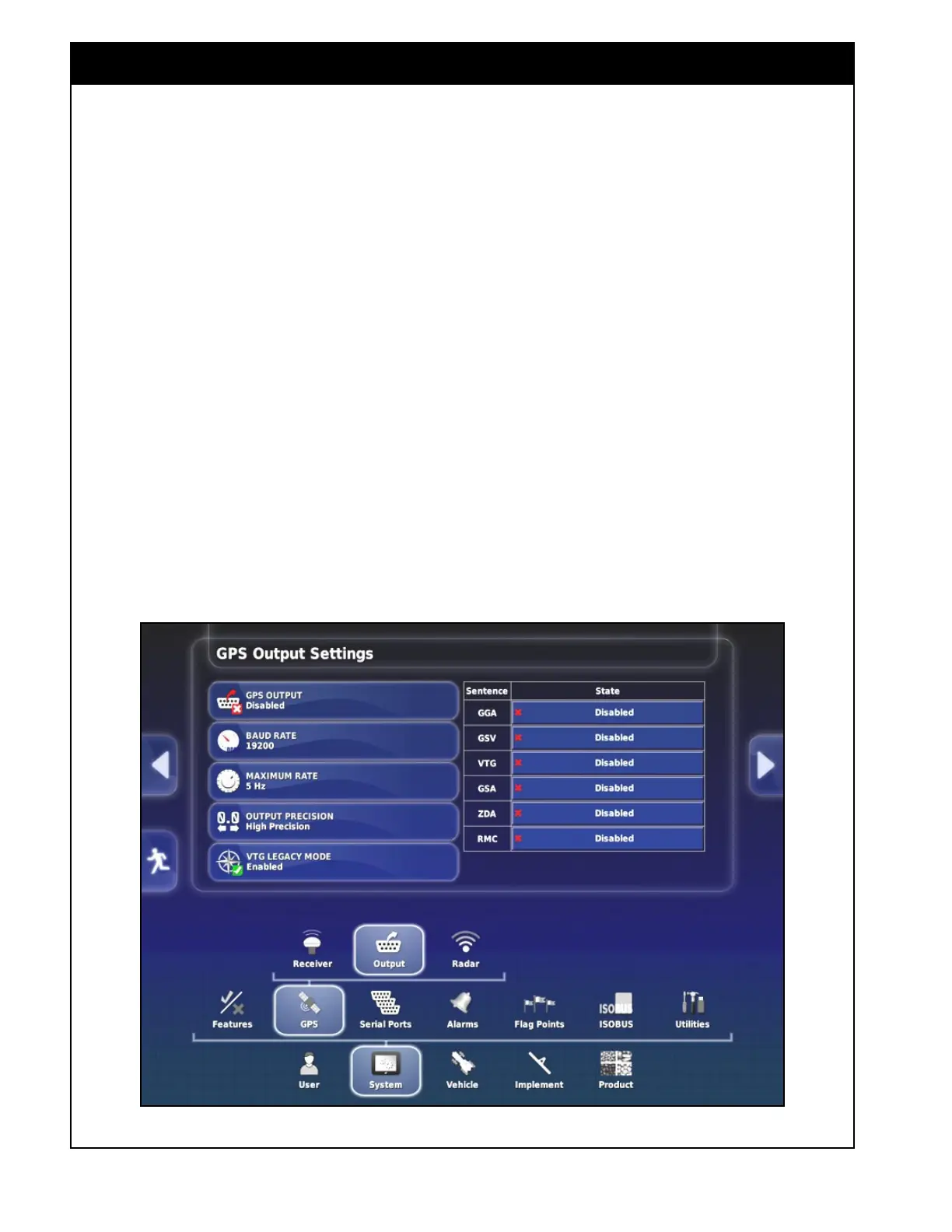

Figure 4.16 - GPS Output Settings
4.2.2 Output
Devices that use a GPS, but are not directly
connected to one, can be connected to the X35
console to receive the required data.
This section explains the settings related to GPS
data transfer from the X35 console to a receiving
device.
To access the GPS output settings select System/
GPS/Output, refer to Figure 4.16.
1. GPS Output - enables or disables the output
of the GPS data from the X35 console to other
devices.
The data strings are exported in NMEA format.
This format is understood by most devices that
work with real time positioning information.
NMEA data sentences contain codes that define
types of data. The devices recognize the relevant
codes and respond to those sentences. Refer to
the device’s manual for the codes needed for that
device.
Refer to
Figure 4.16. Select the State next to each
sentence code to enable that code if it is required
by your device. A green check mark indicates that
a sentence code enabled, a red cross means it is
disabled.
GGA (position) and VTG (velocity and heading)
are the most common sentence codes.
2. Baud Rate - refers to the amount of data
transferred per second.
a. The default baud rate is 19200.
