X35 Monitor Air Seeder Setup
6.50
6.6.2.3.1 Proportional Valve Settings
1. Flow Meter Sampling - the default setting
is "standard". The optional "Reduced"
sensitivity setting slows the reaction time of
the proportional valve. This may be required
for very low flow rates or if flow is highly
irregular or worn equipment.
2. Minimum/Maximum PWM - are the limits of
the PWM (Pulse Width Modulation) drive and
they vary with the type of drive.
a. Min PWM - is a percentage of voltage
drive to the coil.
b. Max PWM - is a percentage of voltage
drive to the coil.

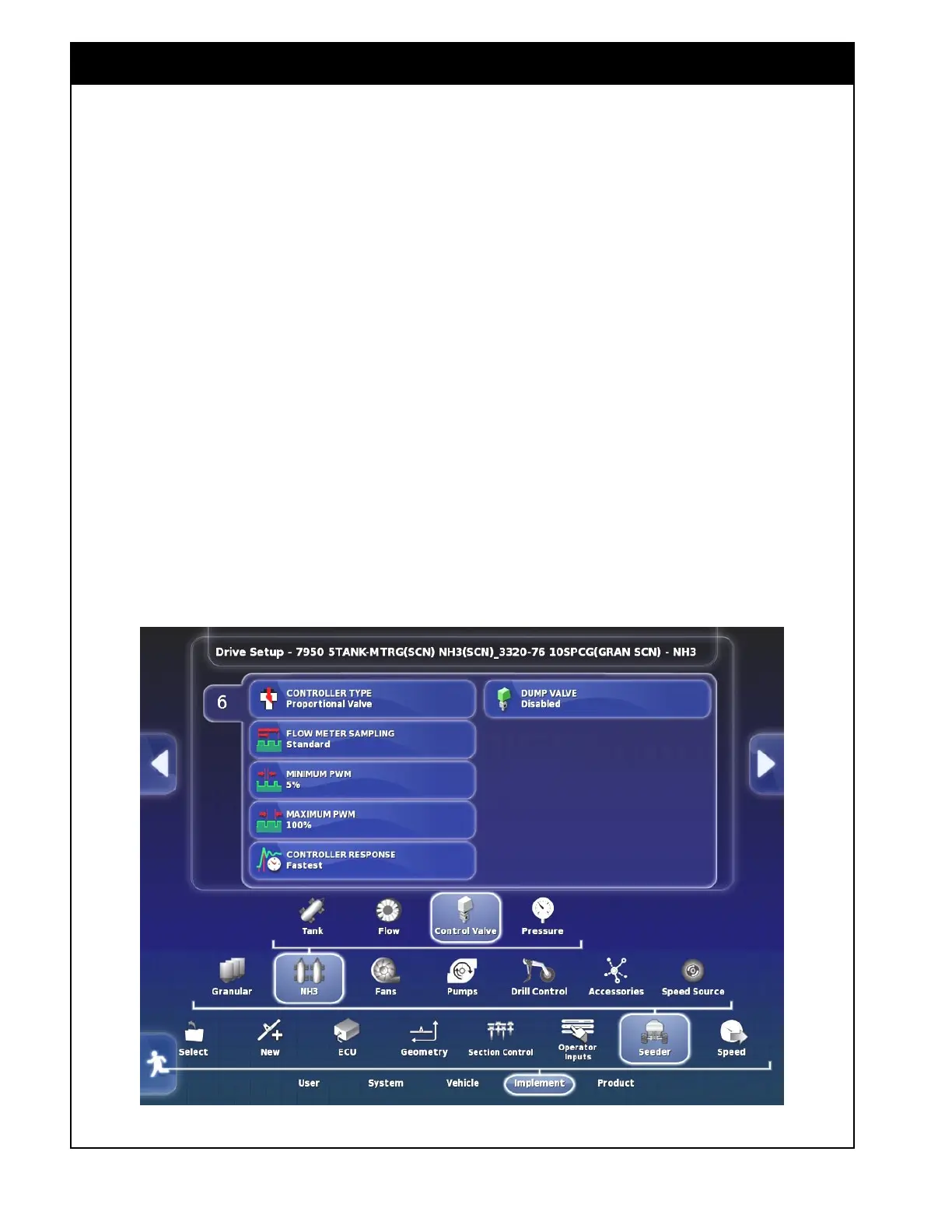

Figure 6.69 - Proportional Valve Settings
3. Controller Response - this will adjust how
fast the controller will respond to changes.
The default is set to Fastest.
4. Dump Valve - is used to apply a signal to a
dump valve or master valve.
a. Enabled - applies power when tank is off.
b. Reversed - applies power when tank is on.
