X35 Monitor Air Seeder Setup
6.57
Note
These next four settings are generated from
calibrating the pack force sensor in the Seeder
Controller screen. If a new profile is required
these settings can be recorded and re-entered
rather than having to recalibrate the pack force
sensor.
10. Minimum Sensor Load
11. Maximum Sensor Load
12. Minimum ADC
13. Maximum ADC
6.6.5.3 Control Settings
These settings are used to configure the monitoring
and control of the down force pressure.
1. Add Dither - set to enabled to allow the
proportional valve to react appropriately and
prevent it from sticking.
2. Minimum PWM - set to a minimum value
that the proportional valve will be able to drive
at. Set to 5%.
3. Maximum PWM - set to a maximum value
that the proportional valve will be able to drive
at. This can be used to limit the pressure so
it doesn’t spike when the openers are first
lowered.
4. Controller Response - sets the speed at which
the proportional valve reacts. Set to Medium
Slow for steady control.
5. Maximum Pressure - maximum pressure value
for pressure transducer.
a. 2500 psi for 3320 & 3420
b. 1500 psi for 3720
6. Minimum Voltage - minimum voltage value
for the pressure transducer. Set to 0.5 V.
7. Maximum Voltage - maximum voltage value
for the pressure transducer. Set to 4.5 V.

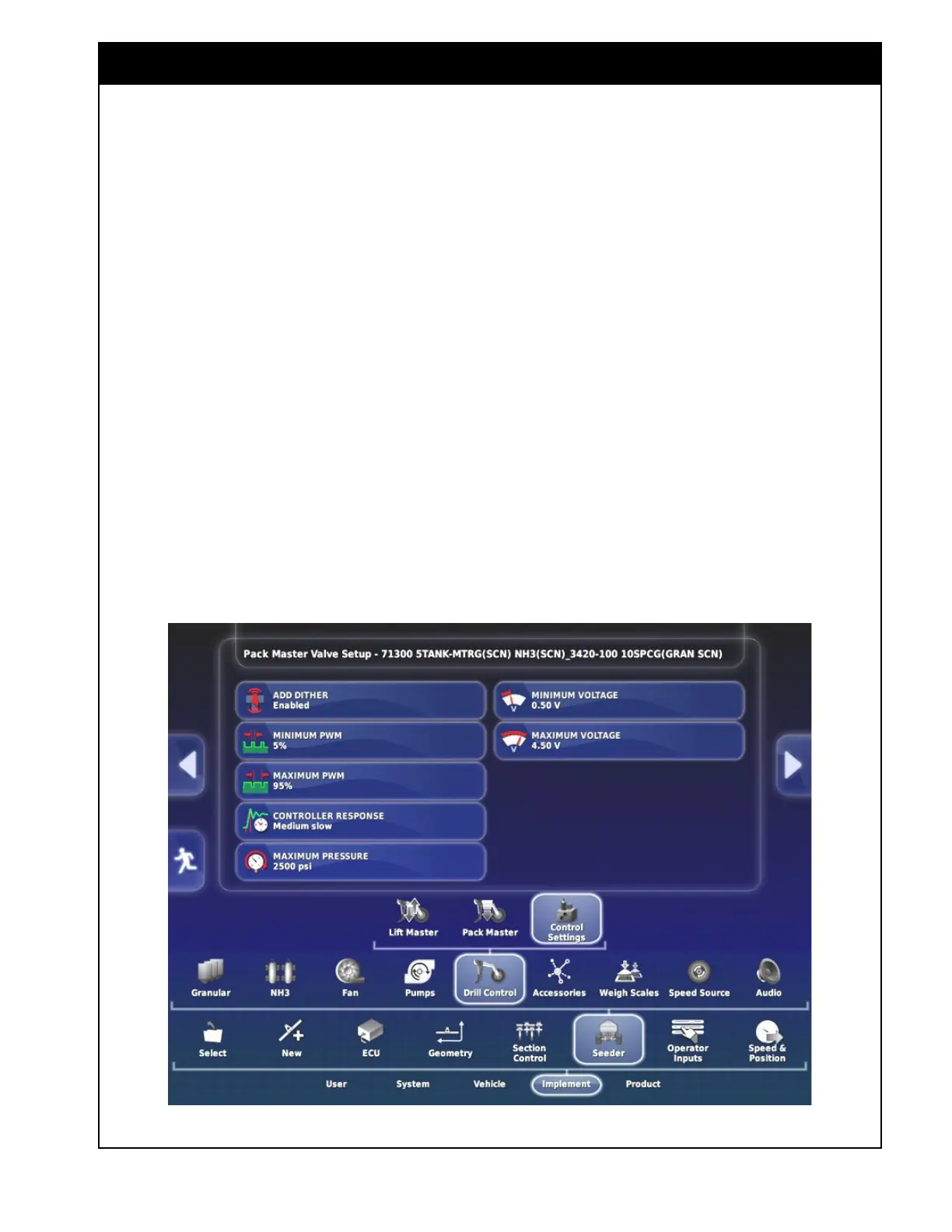

Figure 6.76 - Drill Control - Control Settings
