Topcon X35 Operator's Manual

X35 consoleSystem Components
1.6
1.4.4 Tractor ISOBUS Harness
Tractor ISOBUS harness connects to battery
and tees into X35 harness. Implement plugs into
harness at back of tractor.

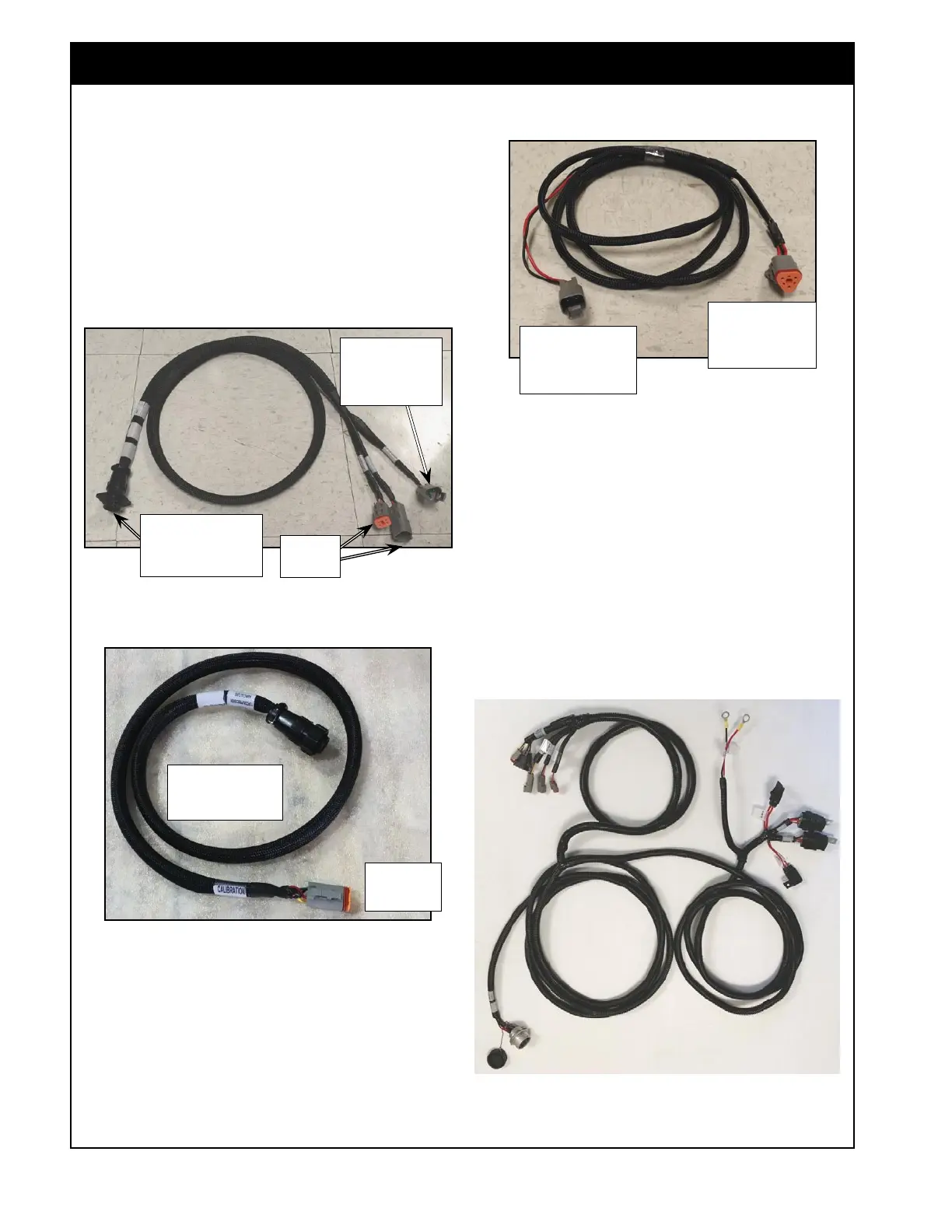

Figure 1.12 - Bourgault ISOBUS X35 Harness
(3151-78)
1.4.3 In-Cab SwitchBox Harness
Harnesses connect switchbox into ISOBUS on X35
harness. Also, use the switchbox power harness
(Figure 1.11) to power up the switchbox from the
X35 harness.
Figure 1.10- In-Cab Switchbox Harness (3132-41)
Figure 1.9- Switchbox ISOBUS Adapter
Harness (3132-42)
Connects to in-
Cab SwitchBox
Connects to 9- pin AMP
ISOBUS connection in
the tractor cab
Connects to the round
connector on the in-cab
switchbox harness
Connects to
switchbox extension
power harness
Tee into
ISOBUS
Figure 1.11 - Switchbox Power Extension Harness
(3132-76)
Connects to the
"switched Power"
Connector on X35
Harness
Connects to
SwitchBox ISOBUS
Adapter Harness
