X35 Console General Operations
8.23
8.4.3 Area Test
If the accuracy of the calibration factors, this
function can be used to verify the correct metering
rate for each tank.
1. Select Area Test to start the wizard that will
guide you through the test.
2. On the first screen enter the area to be
covered.
a. Ensure the area is small enough that the
metered product will fit in the calibration
buckets.
b. Select next (the yellow arrow) to continue.
3. Select the tanks you would like to test by
turning them ON.
a. Place the calibration buckets under the
respective metering augers.
b. Turn the Master Switch ON.
4. Based on the speed entered in the console
or the manual speed, the existing calibration
factors and area to be covered, the system will
determine a target weight.
a. As you run the metering augers, the system
will count revolutions and determine the
estimated weight.
b. Tests will be stopped automatically once
the required area has been covered.
5. Weigh the samples and enter the actual weights
for each metering auger that is tested.
a. The system will calculate new calibration
factors and the difference between the old
and new calibration factors in a percentage.
6. Select the calibration factors that you want
updated and save.
a. You can save the calibration factor for
each tank individually by selecting the
button in the Save column for the desired
tank, or you can save calibration factors
for all tanks at once by selecting save all
button.
b. Select green check mark button to accept
new values.

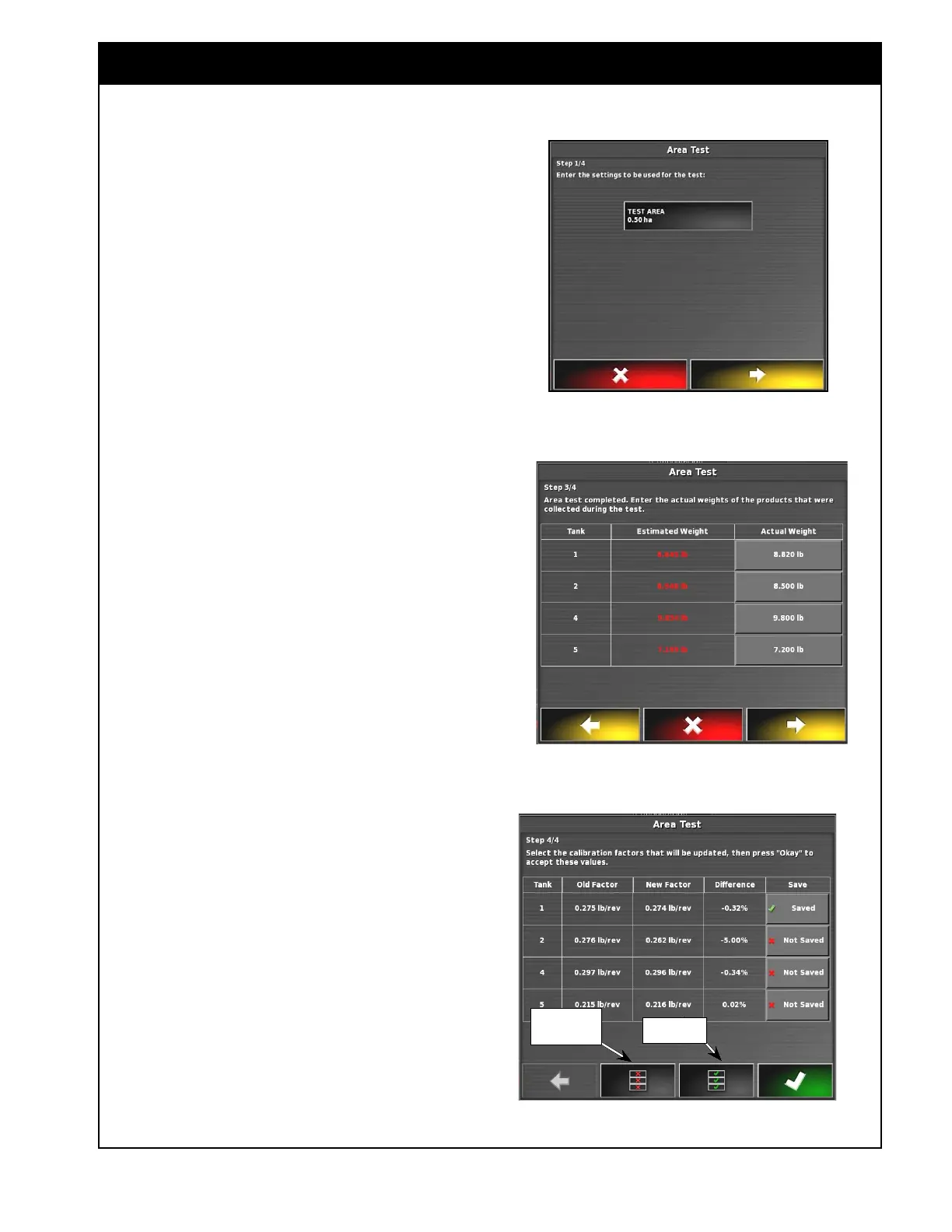

Figure 8.39 - Enter Area
Figure 8.40 - Enter Actual Weight
Figure 8.41 - Confirm Calibration Factors
Save All
restore All
