X35 Monitor Air Seeder Setup
6.56

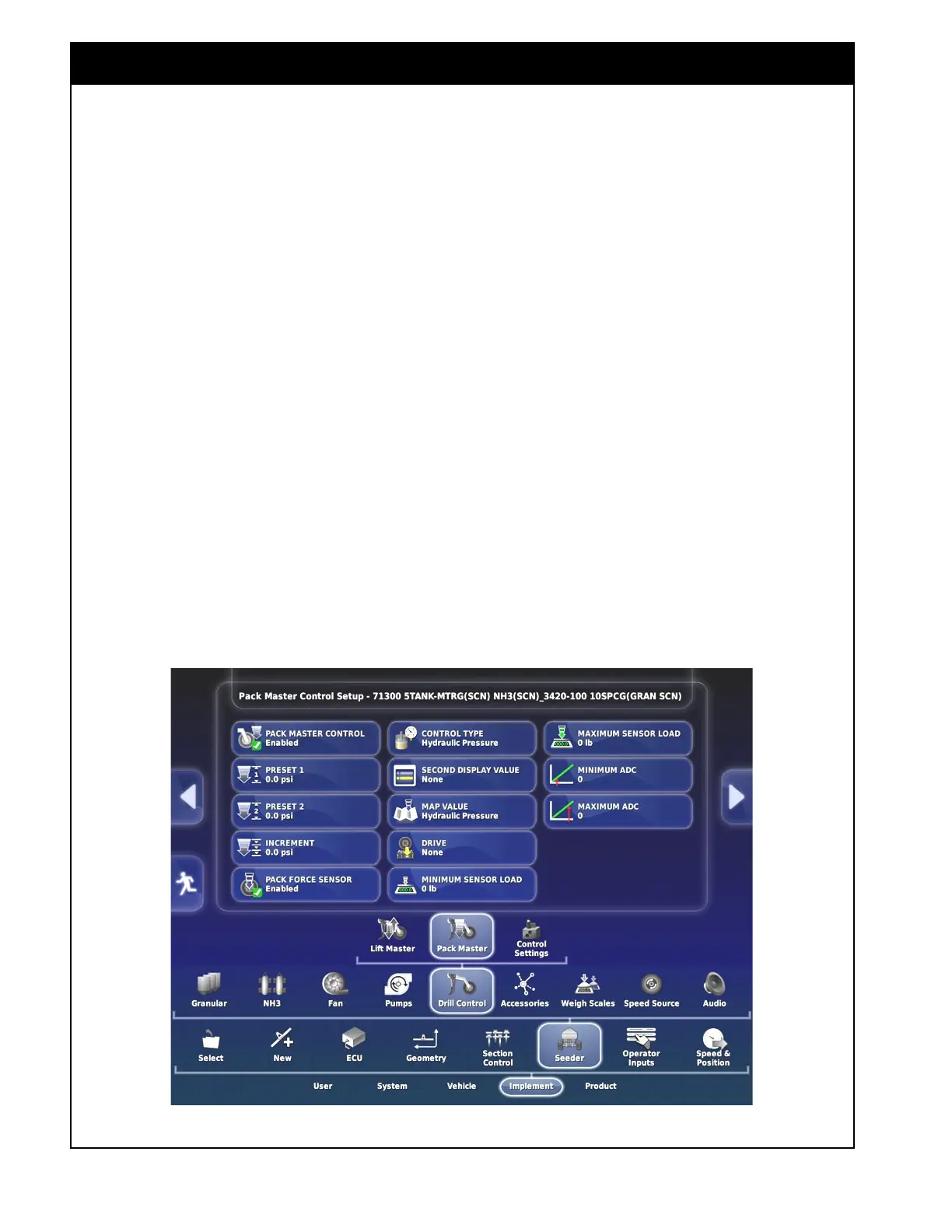

Figure 6.75 - Drill Control - Pack Master
6.6.5.2 Pack Master Settings
This feature is used to control the pressure of the
openers on the drill. It is an option to use an
extra ECU on the drill to monitor the pressure
and gives the ability to adjust it through the X35.
Also, it uses a load cell on one of the opener
packer wheels to read the actual pack force
exerted on the ground. Refer to
Section 13.2.2
- Pack Master Feature for harnessing hookup and
instructions on the operation of this feature.
1. Pack Master Control - set to enabled to use
this feature if it is installed on the drill.
2. Preset 1 - set to a value that can be used
to immediately adjust the Pack Master value
using the preset 1 button on the operation
screen.
3. Preset 2 - set to a second value that can
be used to immediately adjust the Pack
Master value using the preset 2 button on the
operation screen.
4. Increment - set to a value that will increase/
decrease the Pack Master value using the
increment button on the operation screen.
5. Pack Force Sensor - set to enabled to use the
load cell installed on an opener to read the
actual pack force exerted on the ground.
6. Control Type - set to the parameter to control
the Pack Master value to.
a. Hydraulic Pressure - to control to a set
hydraulic pressure.
b. Pack Force - to control to a set pack force
exerted on the ground.
7. Second Display Value - allows you to select
a 2nd Pack Master parameter aside from the
control type to display on the screen.
8. Map Value - select the Pack Master parameter
to be mapped as a layer on the guidance
screen.
9. Drive - select the ECU drive that the Pack
Master is connected to. It will be Drive 1 on
the last CM-40 on the list.
