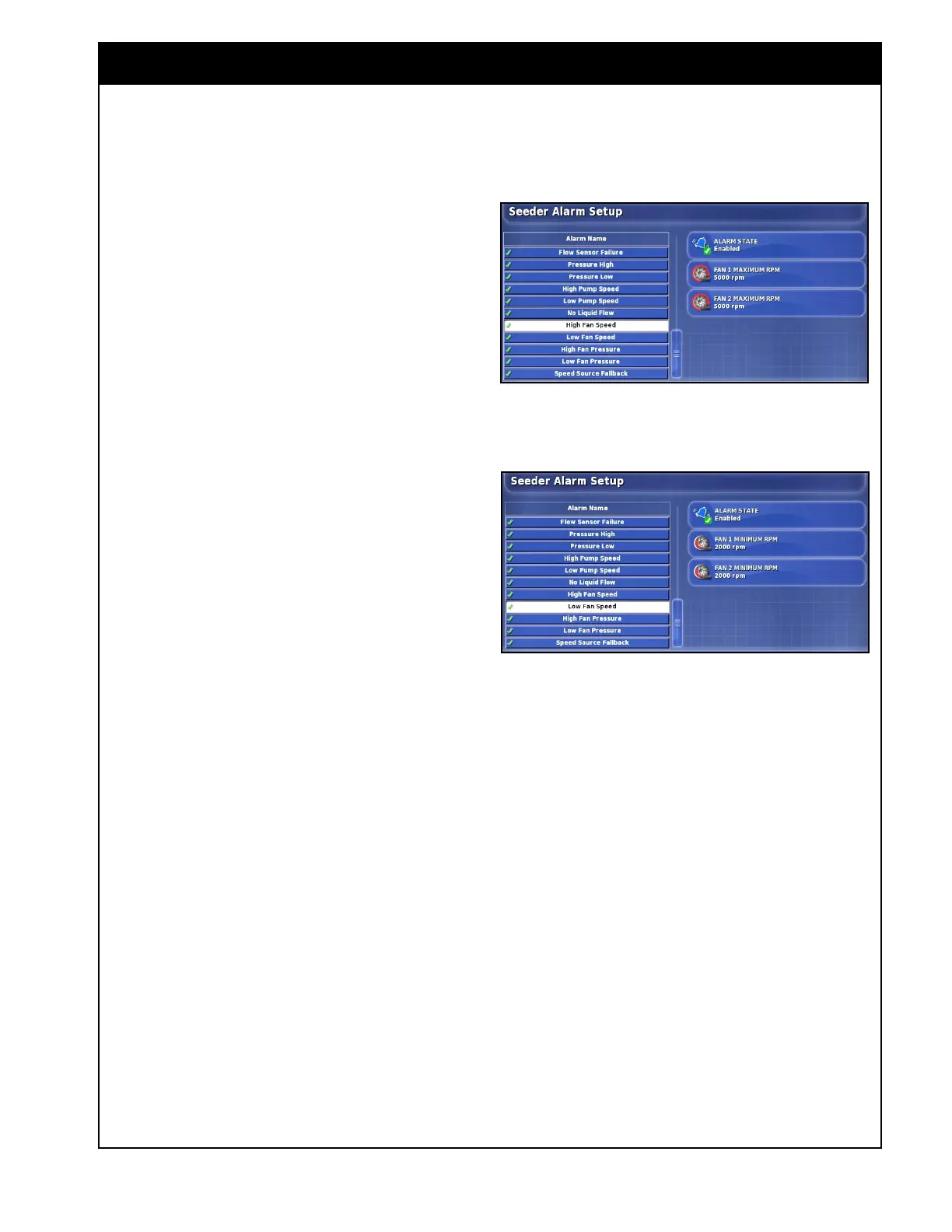

Figure 8.58 - High Fan Speed Alarm
Figure 8.59 - Low Fan Speed Alarm
8.8 Fan Settings
Before seeding, the fan(s) must be set to the
appropriate speed. Refer to the Air Seeder
Operator's Manual for the recommended fan speed
given the implement width, application rate, and
ground speed.
1. Once the fan speed is determined, engage the
hydraulics to start the fan.
2. Adjust the hydraulics to obtain the desired
fan speed referencing the display on the X35
console.
Important
Never operate the Standard radial fan faster than
5000 rpm or the Optional Higher Output fan faster
than 6000 rpm. Damage to the hydraulic motor
may occur.
3. When the correct fan speed is attained, adjust
the High and Low Fan Speed alarm setpoints:
a. select to open the setup screen;
b. Select System/Alarms/Seeder;
i. From the list select High Fan Speed
and adjust for Fan 1 and 2 (if
equipped) Maximum RPM. Refer to
Figure 8.58.
ii. From the list select Low Fan Speed
and adjust for Fan 1 and 2 (if
equipped) Minimum RPM. Refer to
Figure 8.59.
iii. Remember that the fan will speed up
when product is metered into the air
stream. Allow for that when setting
the high fan RPM.
Refer to
Section 4.4.2 - Seeder Alarms.
