Topcon X35 - Auto Section Control; Systems with 6, 8 or 10 Port Primary Manifolds

X35 Console
11.10
Harness Layouts
11.2.8 Auto Section Control
11.2.8.1 Systems with 6, 8 or 10 Port Primary Manifolds

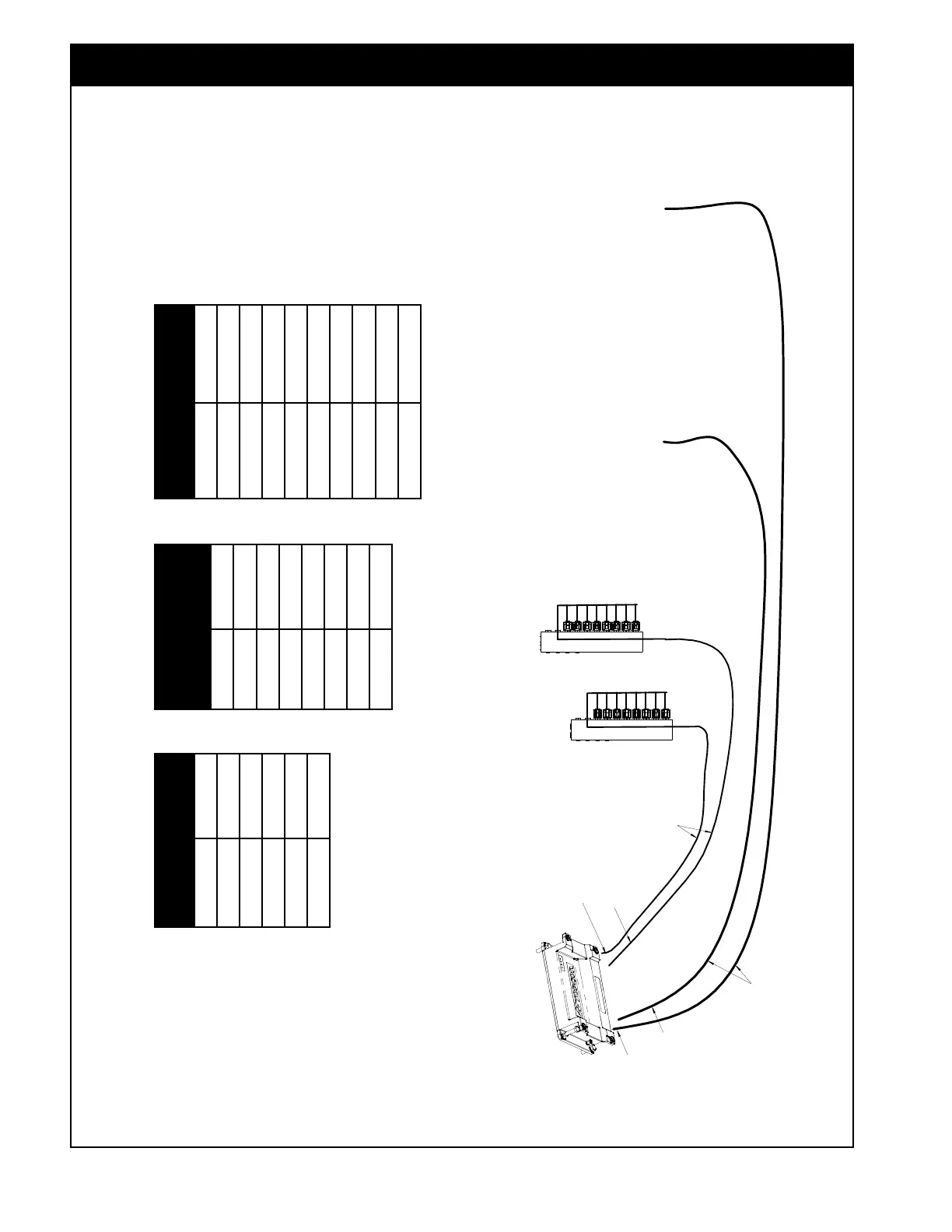

Figure 7.910 - Auto Section Control - 6, 8 or 10 Ports
Manifold Port
label
Harness
Label
a 1 b 3
c 5
d 2 e 4
f 6

























Manifold
Port
label
Harness
Label
a 1 b 5
c 3
d 7 e 2
f 6
g 4 h 8
Manifold Port
label
Harness Label
a 1 b 7
c 3
d 5 e 9
f 2
g 8 h 4
i 6 j 10
6 port 8 port 10 port
