X35 consoleSystem Components
1.4
1.4 Harnesses

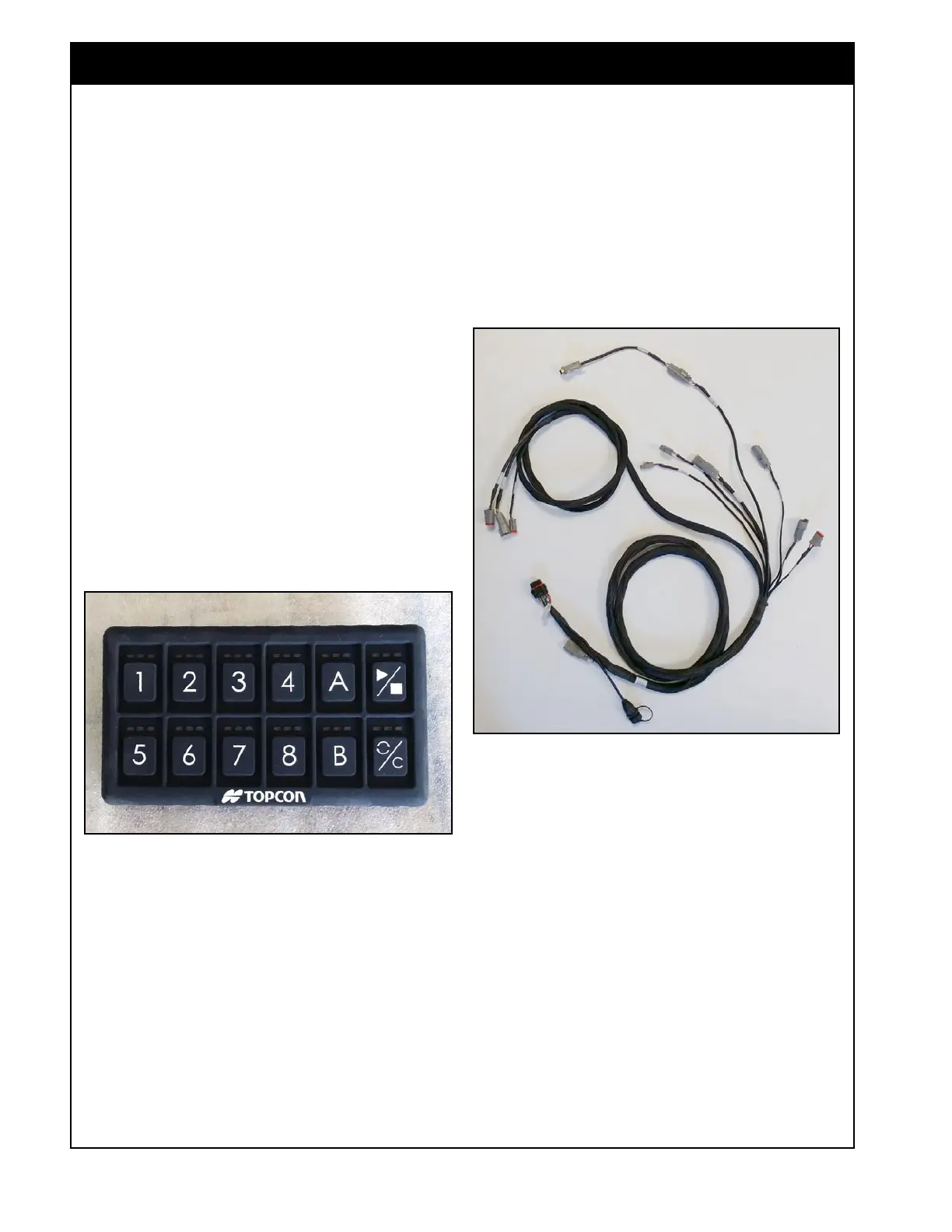

Figure 1.6 - X35 Main Harness
Refer to Section 11 - Wiring Schematics for the
wiring harness layouts.
1.4.1 X35 Main Harness
Refer to Figure 1.6. This harness connects the
X35 console to a power source, ISOBUS, and GPS
signal.
Figure 1.5 - In-Cab Switchbox
1.3 Switchbox
The same switchbox is used in-cab and on the
frame of the air seeder.
The in-cab switchbox connects to a 9-pin AMP
connection in the tractor cab.
The on-frame switchbox is installed on the frame
to control the meters in calibration mode. It is
also used to run meters to check runs when the
unit is stationary.
1. will control up to 8 tanks;
2. alternate means of controlling the air seeder to
the console touch screen;
3. in-cab switchbox can be placed near tractor
controls for easy access;
4. functions include: master on/off, tank on/off
and customized features;
5. must be enabled through the X35 console.
