X35 Monitor Air Seeder Setup
6.31

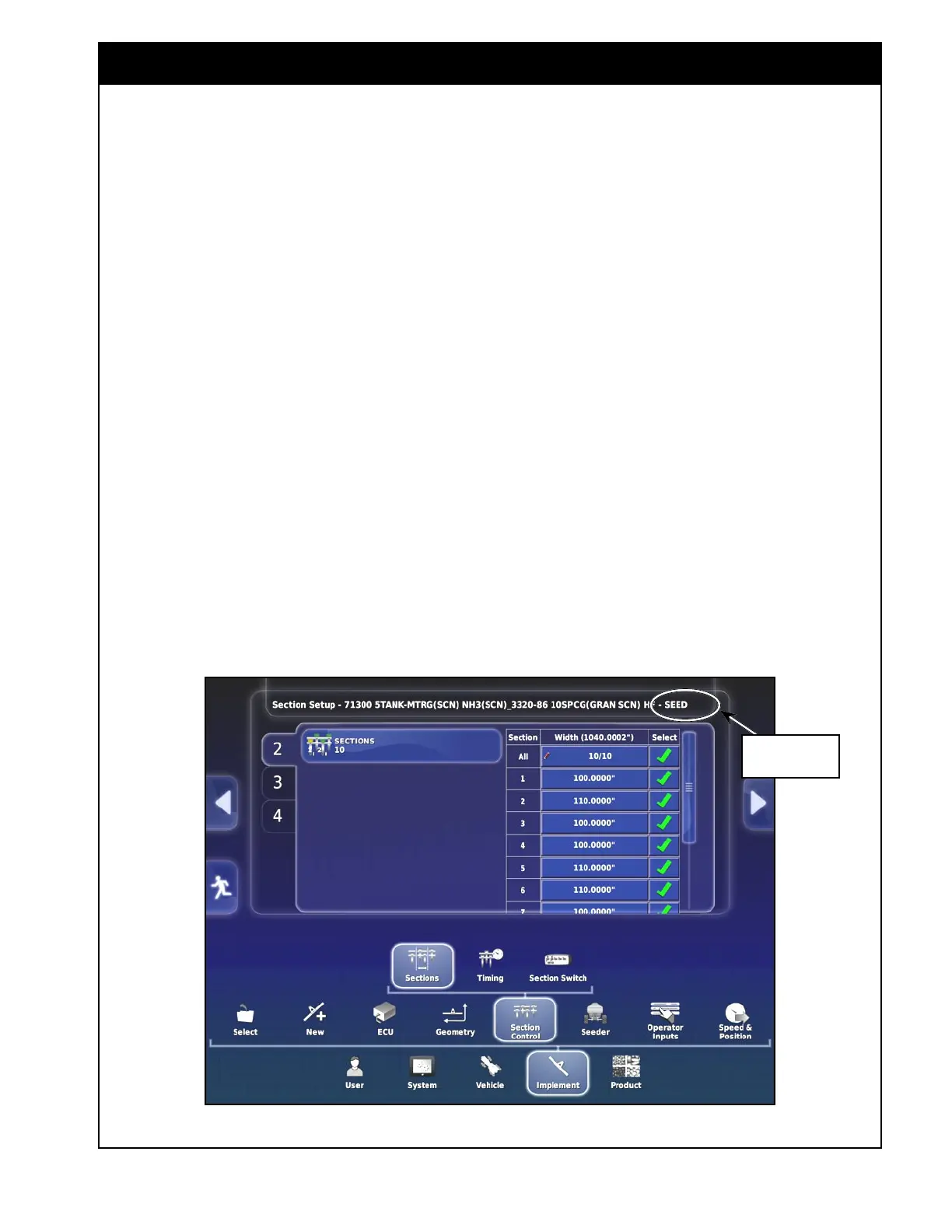

Figure 6.43 - Section Control - Granular Boom Settings
6.5 Section Control
Note
The Section Control Icon only appears if the
implement was setup with Section Control
(Section Control and Rate Control was selected
for Implement control setting, factory profile
selected with ASC).
To access the sectional control settings select
Implement/Section Control. Refer to Figure 6.43.
6.5.1 Sections
Here you can enter the number of sections and
width of each multi-section boom.
Note
Boom is a term derived from Sprayers and more
generally applies to a product being applied. In
seeding scenarios, your machine will have one
full-width granular product "boom" and might also
have one multi-section NH3/Liquid "boom" and/or
one or two multi-section granular “booms”.
1. Select a boom from the tabs on the left side,
the name of that boom will be shown in the
title bar.
2. Select the Sections button to enter number
of sections. Use the plus/minus buttons to
increase/decrease the value.
Note
Bourgault harnessing can control up to 10
sections.
Boom Name In
The Title Bar
Note
Factory profiles have the Fertilizer and NH3/
Liquid booms set up assuming it is using MRB’s.
If that is not the case then the section widths may
need to be adjusted for those booms to match
your unit. Also all section widths are set as the
latest configurations coming from the factory so
should be verified for older units.
