X35 Console Optional Equipment
13.15
The Topcon Digi-Star weigh system is integrated
into the X35 console through the Scale Link ECU.
This allows for functions like automatic weight
entry and monitoring live load cell weights.
Refer to
Section 6.6.7 - Weigh Scale for
configuring the weigh system.
Refer to
Section 8.2 - Filling the Tank for using
the Tank Fill wizard to enter tank weights directly
into the console when filling.
13.4.1 Scale Link SL2140 in Universal
Terminal
The X35 console uses information from the Scale
Link to monitor the weights but it also runs
as a program in the Universal Terminal where
information can be viewed or settings changed,
refer to Figure 13.18. Refer Topcon Scale Link
SL2140 operator’s manual for configuring extra
settings/functions.
13.4 Weigh System
a. Scale Channel Weights - pressing on the
scale channel tab will highlight it and display
it in the main view where certain functions
can be performed to that channel. Whatever
channel is activated will also be displayed on
the Remote Display SLC2810 and vice versa.
This channel will also be displayed on the
handheld remote. The channels are named for
reference.
Important
Weights on Scale Link are not corrected for tank
pressurization.
Important
If the handheld remote isn’t linked to the weigh
system check the Scoreboard Mode number
(SCOREM). It should be set to “11” and can be
accessed entering DAN “2101”.

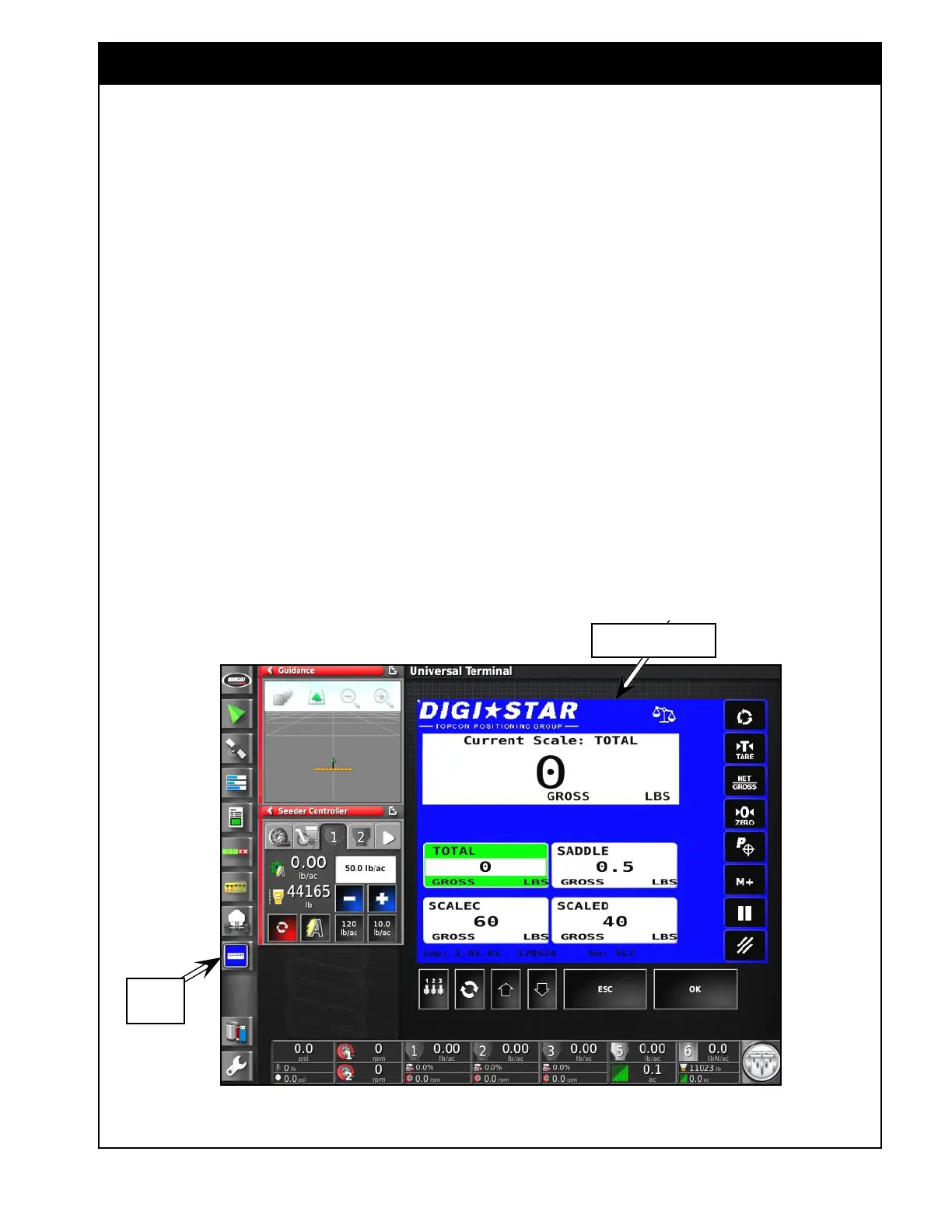

Figure 13.18 - Scale Link SL2140 in Universal Terminal
Universal
Terminal
Scale Link SL2140 in
Universal Terminal
