X35 Console Overview
2.7
2.4 Common Functions
There are several common functions that are used
with the X35 console.
1. Cancel Button
Cancel button will cancel the selection/
action and return to previous screen.
2. Confirm (OK) Button
Confirm/Ok button will confirm the
selection/action to continue.
3. Numeric Keypad
Refer to
Figure 2.10.
Numeric keypad will appear when it is required to
enter or adjust numeric value during setup or in
operational mode.
This button is used when it is required to
enter negative value.
4. Increase/Decrease Buttons
These buttons will appear
when it is required to change
or enter a numeric value. The
value will change by preset
increments. The increments
will vary depending on the parameter being
adjusted. These buttons can be used in
conjunction with numeric keypad.
4. Selection List
Selection lists are used where multiple choice
selections are provided. For example selecting
language, metering auger type or selecting items
for the dashboard, refer to
Figure 2.11.
a. Use the up and down arrows to navigate
through the list. With extensive lists a scroll
bar may appear to allow fast scrolling.
b. Selection of an item(s) is done by touching
it. A selected item(s) will have a white
background.

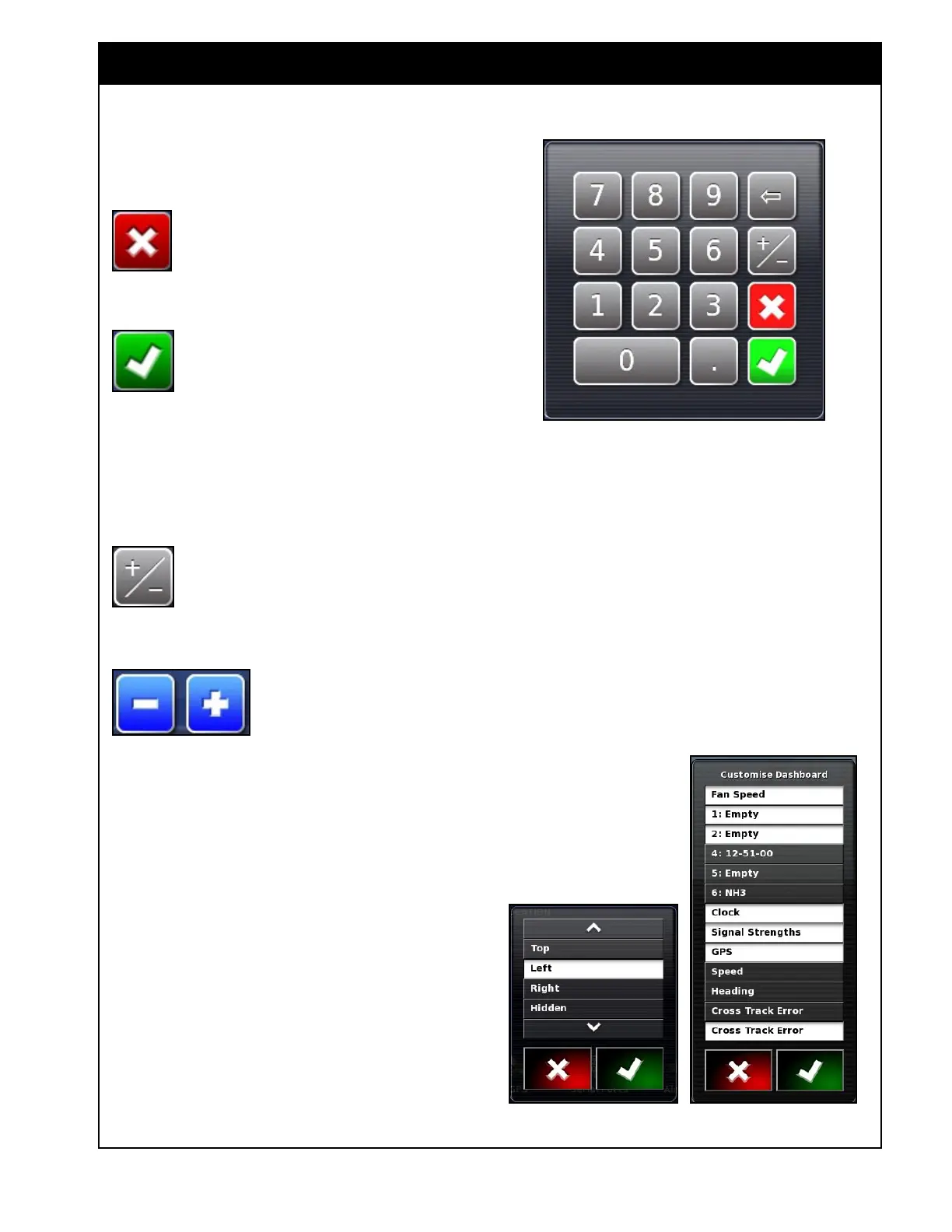

Figure 2.10 - Numeric Keypad
Figure 2.11 - Selection List Examples
