Topcon X35 - Blocked Head Monitor

X35 Monitor Air Seeder Setup
6.59

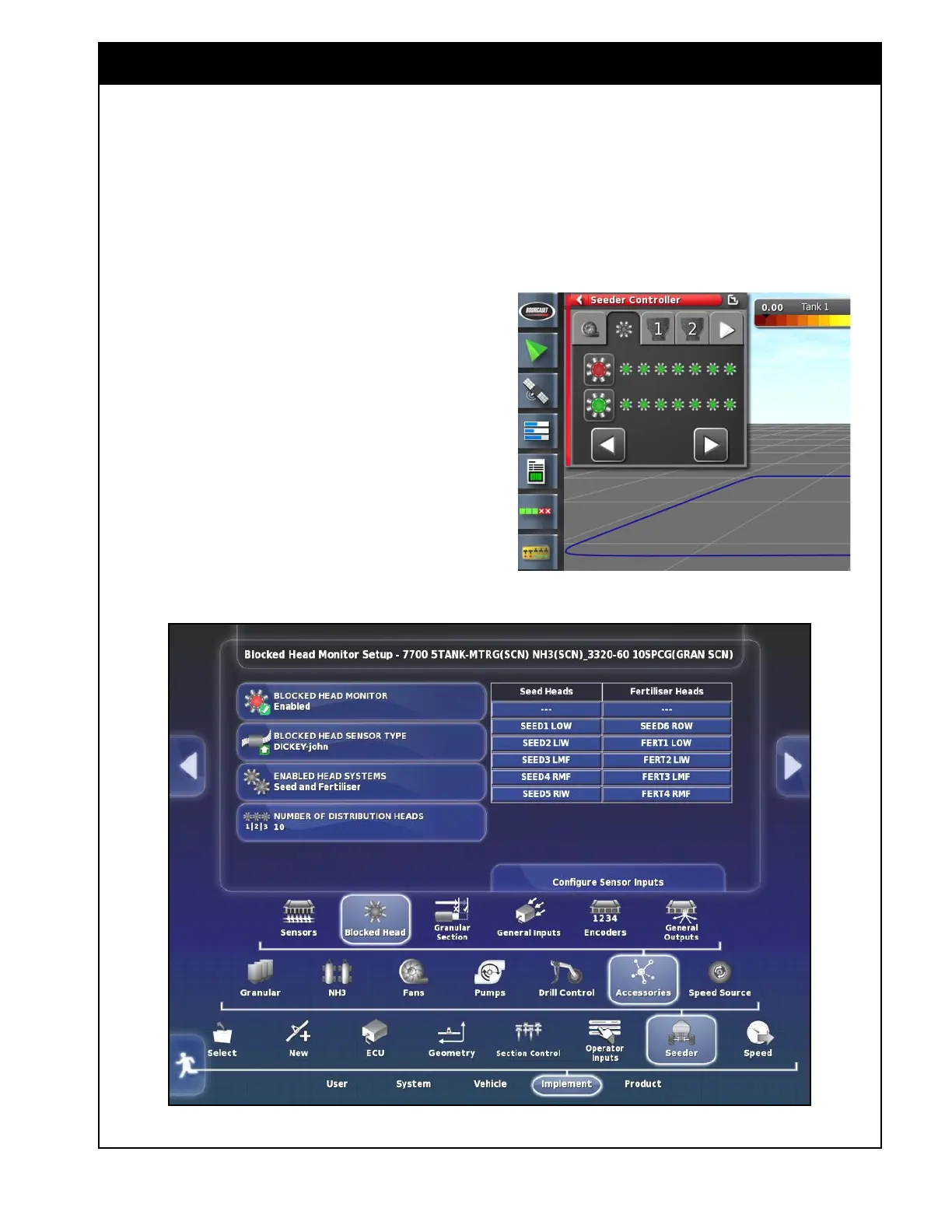

Figure 6.79 - Blocked Head Monitor Settings (Factory Profile)
Also when the Blocked Head Monitor is set
to enabled, Blocked Head Monitor, a tab will
be available for monitoring in the Seeder
Controller mini-view window and in the
expanded view, refer to Section 13.3 - X35
Blockage Monitoring.
Figure 6.78 - Blocked Head Monitor Tab
6.6.6.2 Blocked Head Monitor
Refer to
Figure 6.79.
This section configures settings related to the
Blockage Monitor.
1. Blocked Head Monitor - select Enabled if
blockage system installed, and Disabled if
there is no blockage system installed.
a. When Blocked Head Monitor set to
enabled additional settings will be
displayed:
i. If a factory drill profile was used
during set up, the values for these
settings will be automatically loaded,
refer to example on
Figure 6.79.
ii. If a custom profile was used during
set up, then the following settings
will need to be configured, refer to
Figure 6.80.
