X35 ConsoleOptional Equipment
13.10

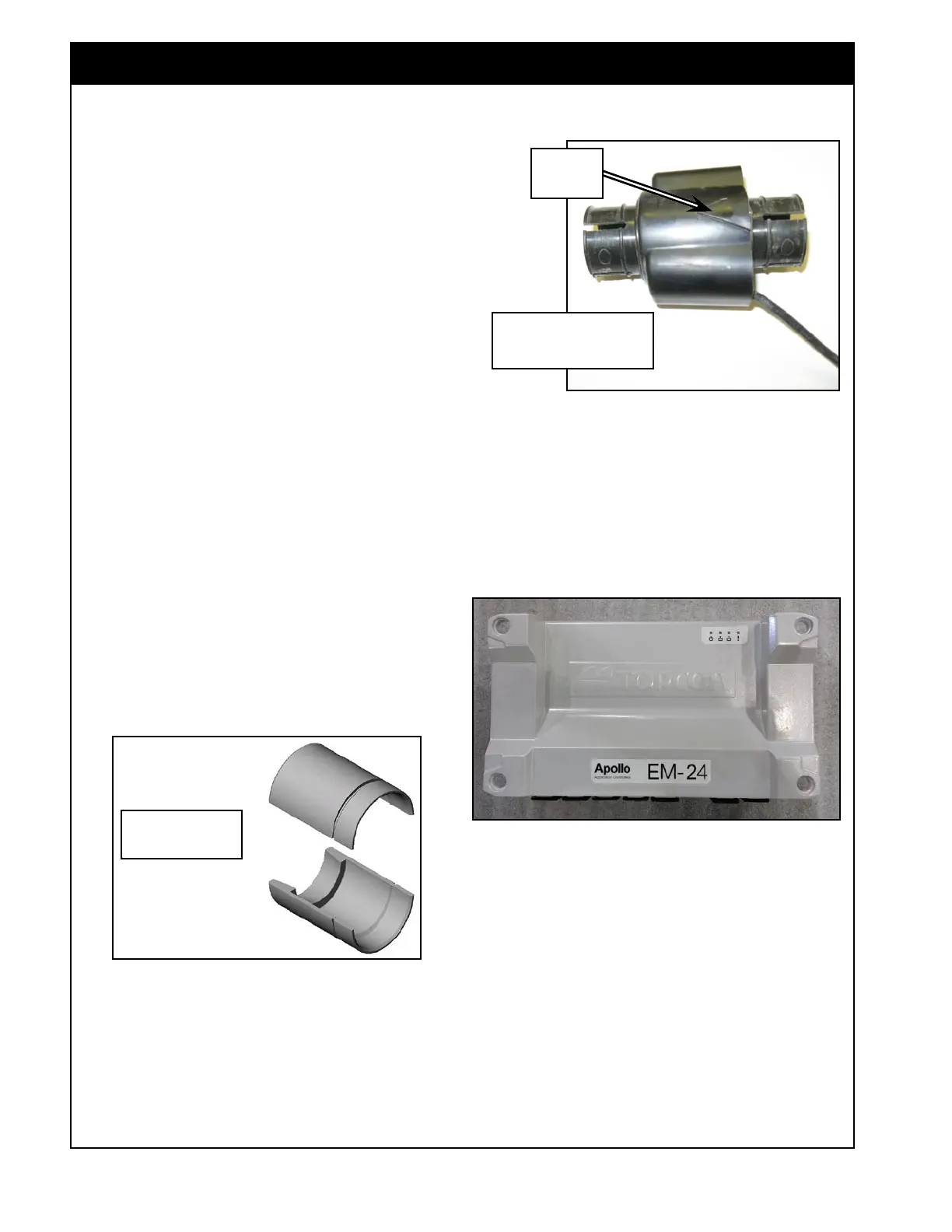

13.3 X35 Blockage Monitoring
X35 single run blockage monitor packages are
available for Bourgault tow-behind and leading Air
Seeding systems.
The BH sensors (
Figure 13.12) are sized for 1”
hose or 1-1/4" hose. A 7/8” adapter (Figure 13.11)
(4 per sensor) is used to adapt the 1" sensor to the
smaller size hose.
For an 8 port configuration, the single shoot
secondary manifolds (on the tillage unit) are
numbered 1-8 from left to right. The manifolds
for the optional double shoot runs are labelled
9-16 from right to left. For 6 and 10 port
configurations numbering is similar. Connections
at the ECU (
Figure 13.15) will match this
numbering.
Figure 13.12 - BH Sensor (Blocked Head)
Figure 13.11 - 7/8" to 1" Hose Adaptors
Use Two Adaptors As
Shown Per Side Of
Sensor (4 Per Sensor)
Figure 13.13 - EM-24 ECU (#3132-33)
DICKEY-john Style Sensor (#3133-
26-01 for 1" lines and #3133-27-01
for 1-1/4" lines)
Direction Of
Product Flow
Arrow
