X35 Monitor Air Seeder Setup
6.36

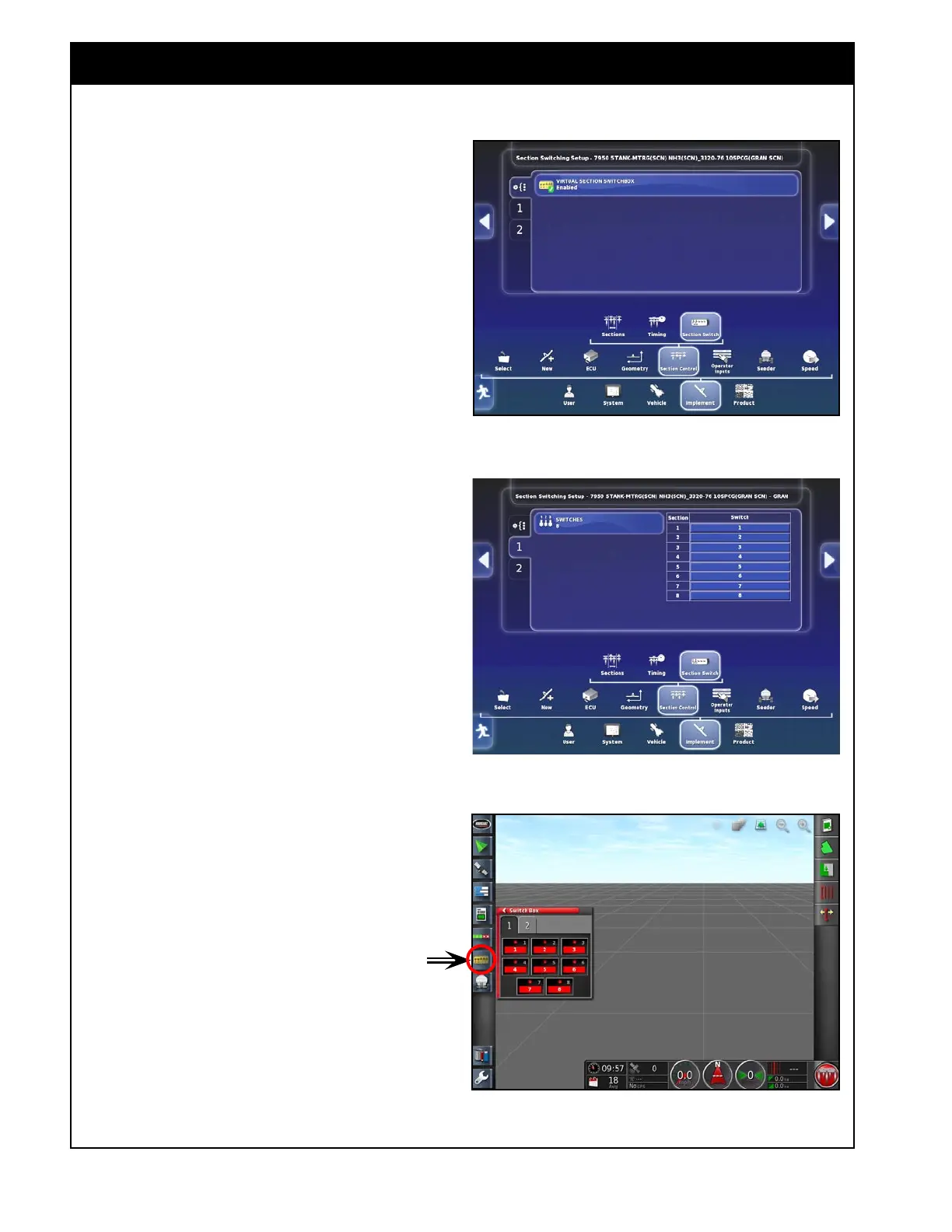

Figure 6.50 - Section Control - Switch Settings
6.5.3 Section Switch
In this section, you can enable and configure a
virtual section switchbox, that allows manual
override control of the sections for each boom.
If left disabled the sections will always stay on,
unless the ASC shuts them off corresponding to
the coverage map.
1. Refer to Figure 6.50. Select the Virtual
Section Switchbox button to enable or disable
the virtual switchbox.
a. When enabled, it will display a tab
for each boom, that will allow you to
configure the switchbox.
2. Select a boom and then select the Switches
button to set number of switches.
a. In the table assign switches to the sections.
Refer to
Figure 6.51.
b. Normally you would match the number of
switches to the number of sections to have
a switch for each section.
Once the virtual section control switch is enabled
and setup, a virtual switchbox icon will be
displayed in the mini-view menu, refer to Figure
6.52.
1. Selecting the virtual switchbox icon will open
up the mini-view window.
a. There will be a tab for each boom.
b. You can also access the section switches
from the guidance screen or the seeder
controller screen.
Figure 6.51 - Section Control Switch Setup
Figure 6.52 - Virtual Switchbox
