6.8.2 Keypad
This menu option will allow you to identify and
assign the correct in-cab and on-frame switchbox,
assign functions to the buttons that have no
functions assigned to them (A, B & C buttons) and
select how you prefer to control tanks.
There are two tabs, one for the in-cab switchbox
and the other for the switchbox on the frame of
the air seeder. Refer to
Figure 6.98.
6.8.2.1 In-Cab SwitchBox
1. Keypad ID - allows you to select the in-cab
switchbox.
a. When selected, it will display a drop down
list with switchbox IDs.
i. If there is no switchbox used, select
none.
ii. You can confirm you have the right
keypad assigned in the cab as the
LED lights will stop flashing.
b. There is also an Identify Keypad button
that changes the flash sequence to confirm
you have the right one selected for the
appropriate location.

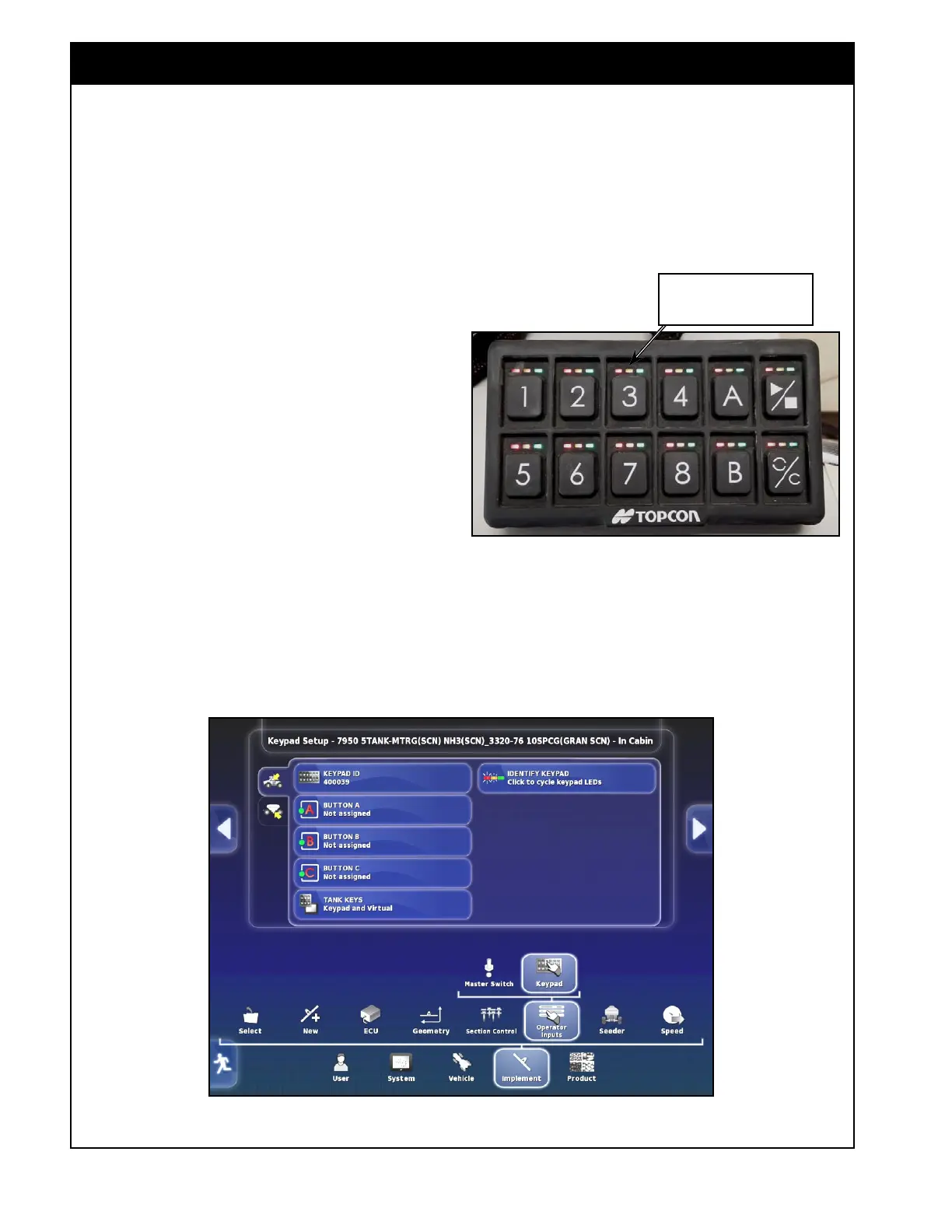

Figure 6.98 - Keypad - In-Cab
Figure 6.97 - Identifying Keypad
Green, yellow, red lights will
be flashing at different times.
2. Identify Keypad - When selected, led lights
on the switchbox will flash green, yellow, red.
Refer to Figure 6.97. Select this button again
to stop flashing.
