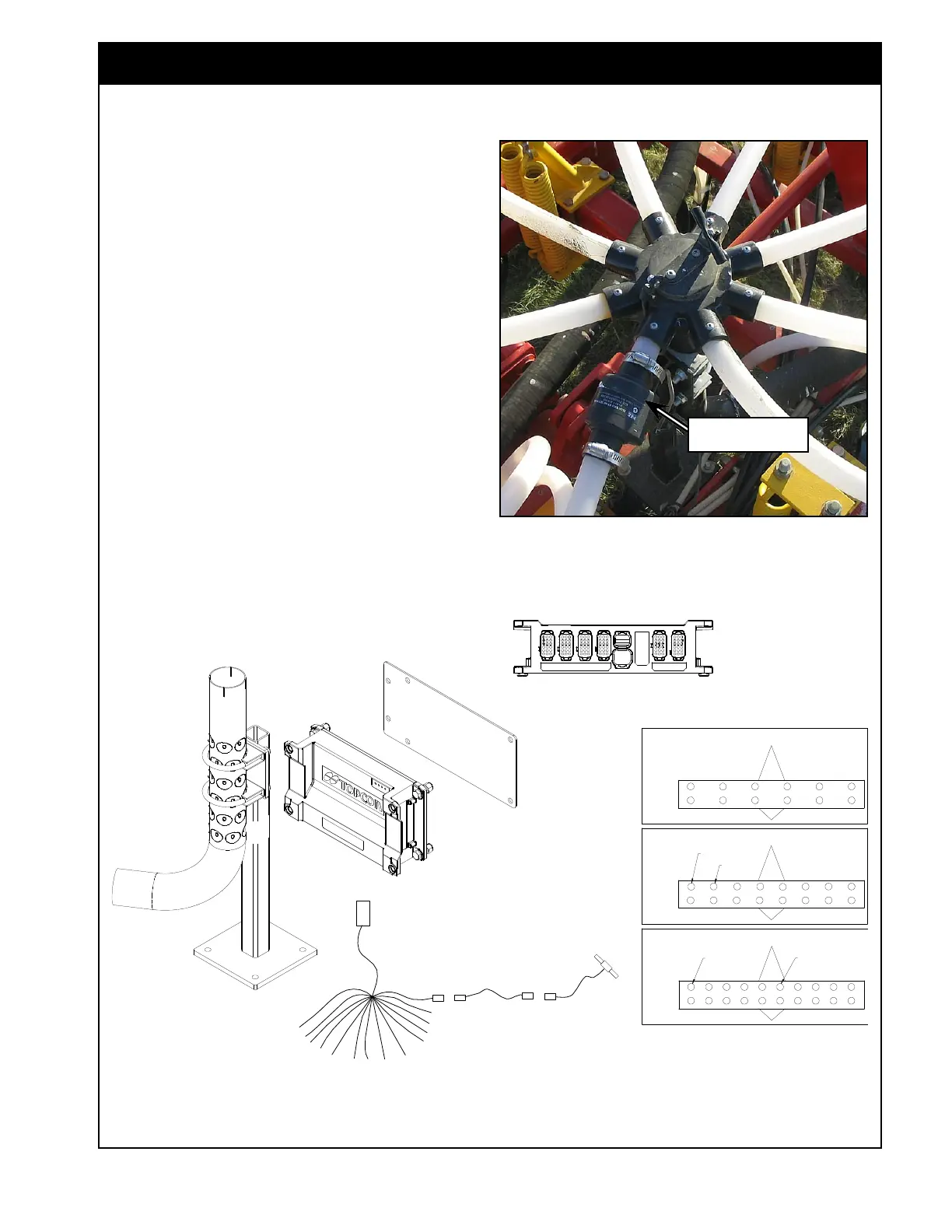

X35 Console Optional Equipment
13.11
13.3.1 Mounting the Components
1. Mount the EM-24 ECU onto the main frame
secondary manifold stand (location shown in
Figure 13.15), by attaching the mount plate to
the stand with the existing u-bolts.
a. Mount the ECU onto the mount plate with
the mount bolts provided.
Figure 13.14 - BH Sensor Mounts onto ONE hose per
Secondary Manifold
Mount One Sensor Per
Secondary Manifold
Figure 13.15 - ECU & Components Layout













  
















 





















 




