Trimble GCS900 - Working with 3 D guidance

Using 3D Guidance in the Field 5

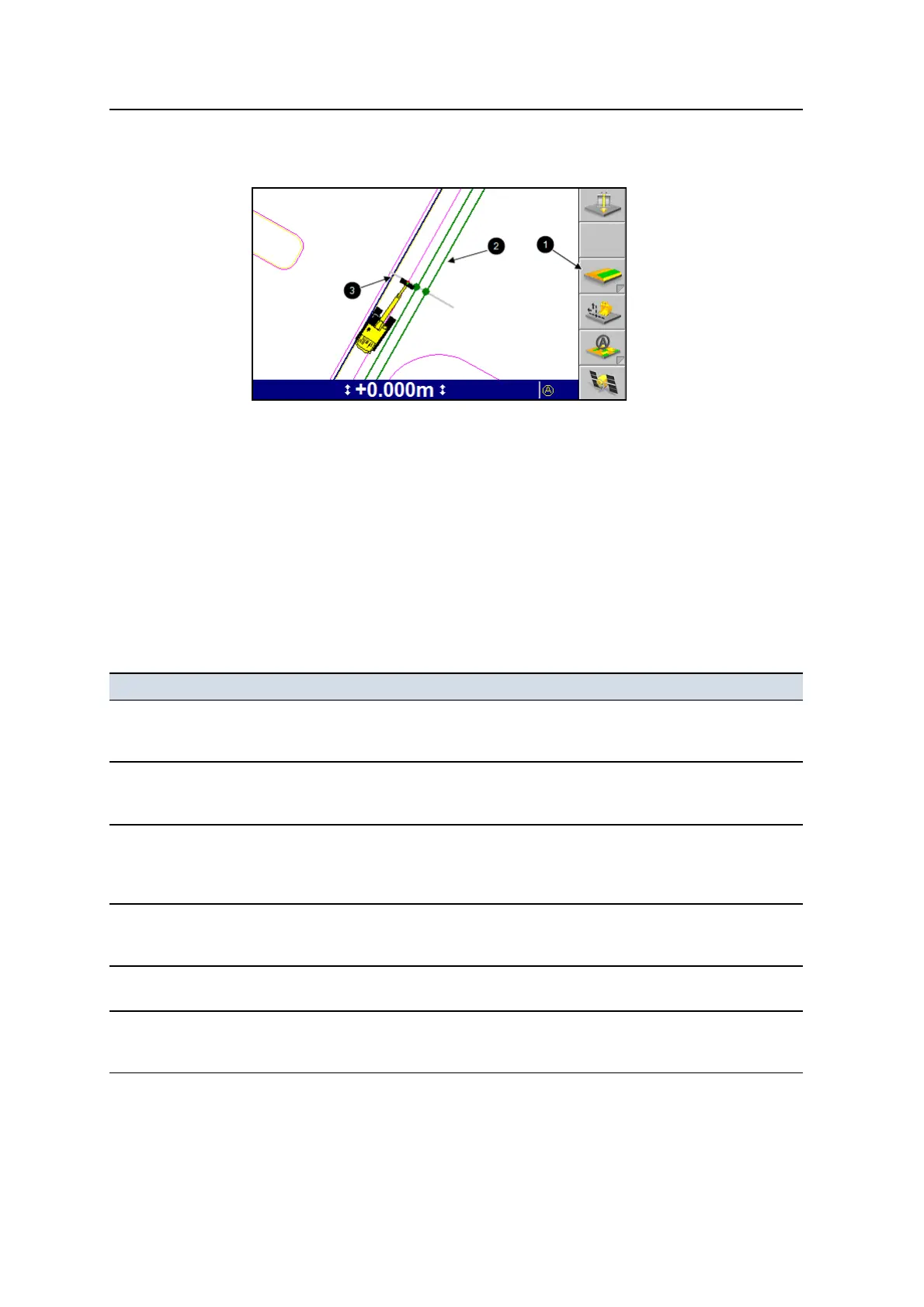

with the machine.
When a lane is de-selected:
l the lane edges return to their original colors
l the Select Lane softkey changes to gray to indicate that no lane is selected
l the lane guidance indicator is no longer displayed
5.5 Working with 3D guidance
Common tasks that you may perform while you work with 3D guidance methods
are:
Task When To learn how, see ...
Select a working surface and set
the vertical offset for vertical
guidance
Every time you begin a new job or load a new
design.
5.5.1 Setting the working
surface lift and/or vertical offset
Select an alignment for horizontal
guidance
Every time you begin a new job, load a new
design, or need to use a different horizontal
alignment.
5.5.9 Selecting horizontal
alignment
Select the focus given horizontal
guidance
Every time you select a new horizontal
alignment, or when you finish a pass, turn
around, and want to swap the end given
horizontal guidance.
5.5.2 Selecting focus for
horizontal guidance
Set an offset from the horizontal
alignment
Every time you select a new horizontal
alignment, or you want to work a new section
of design surface using the same alignment.
5.5.3 Setting horizontal offset
Re-initialize machine orientation Every time you move a single-3D sensor
excavator.
5.5.6 Re-initializing orientation
after moving the machine
Clear a UTS benching value When you want to use the measured elevation
of the UTS instrument in the guidance
calculations.
5.5.7 Clearing the UTS
benched elevation
