Using 3D Guidance in the Field 5

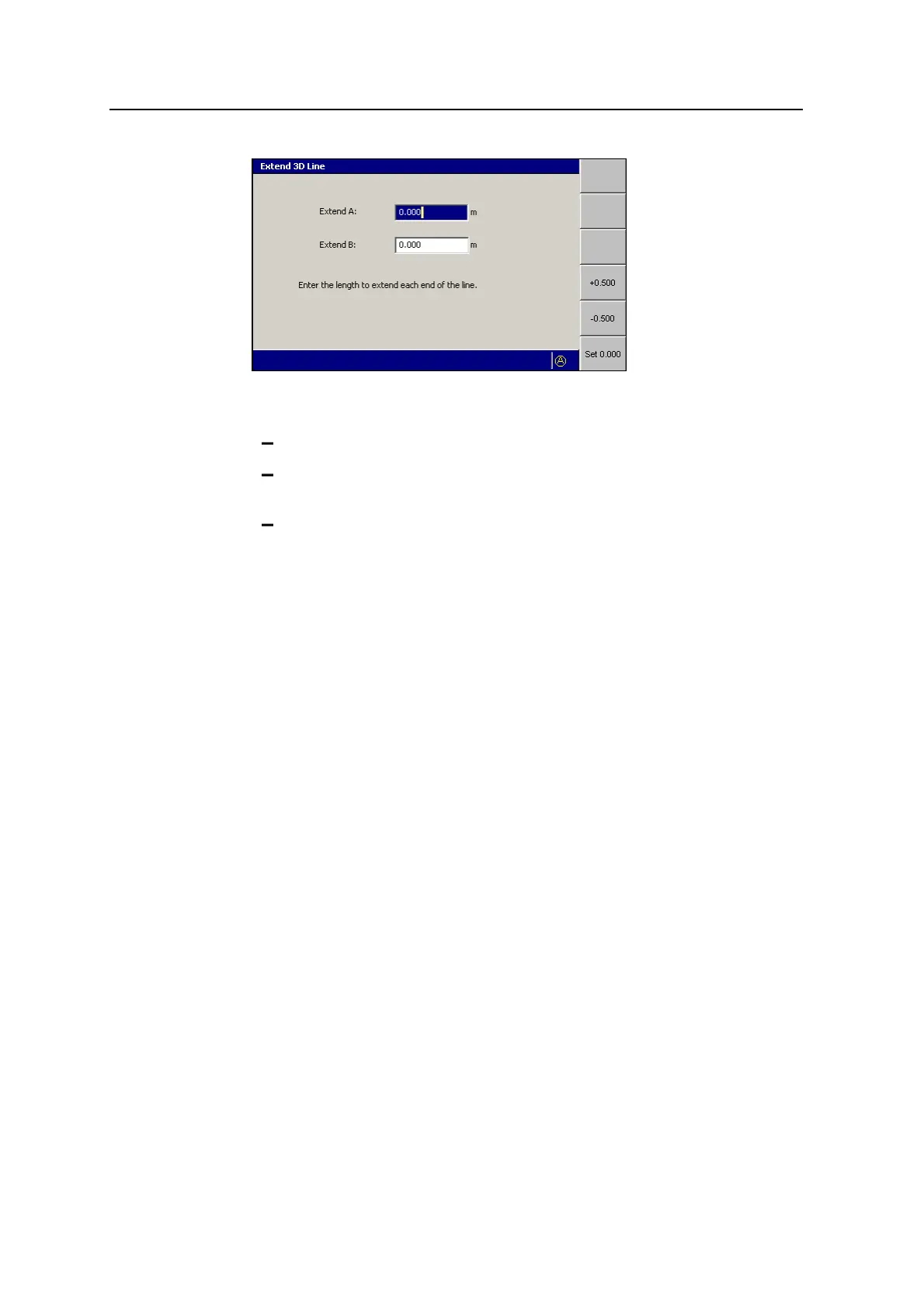

6. If required, to extend the line at one or both of the A and B ends, use one of the
following tools:
Edit the Extend A and/or Extend B fields directly.
To add or subtract 500mm (20inches) to or from the current extension,
press +0.500 or -0.500.
To reset the extension to zero, press Set 0.000.
To confirm the Extend 3D Line settings, press \; to exit without saving
changes, press =. The Select 3D Guidance Line dialog appears.
7.
To confirm the Guidance Line settings, press \; to exit without saving
changes, press =.
5.3.2 Creating a design
There are two simple design surfaces you can create in the field:
l Level designs
l Sloping designs
GCS900 Grade Control System for Excavators Operator's Manual 121
