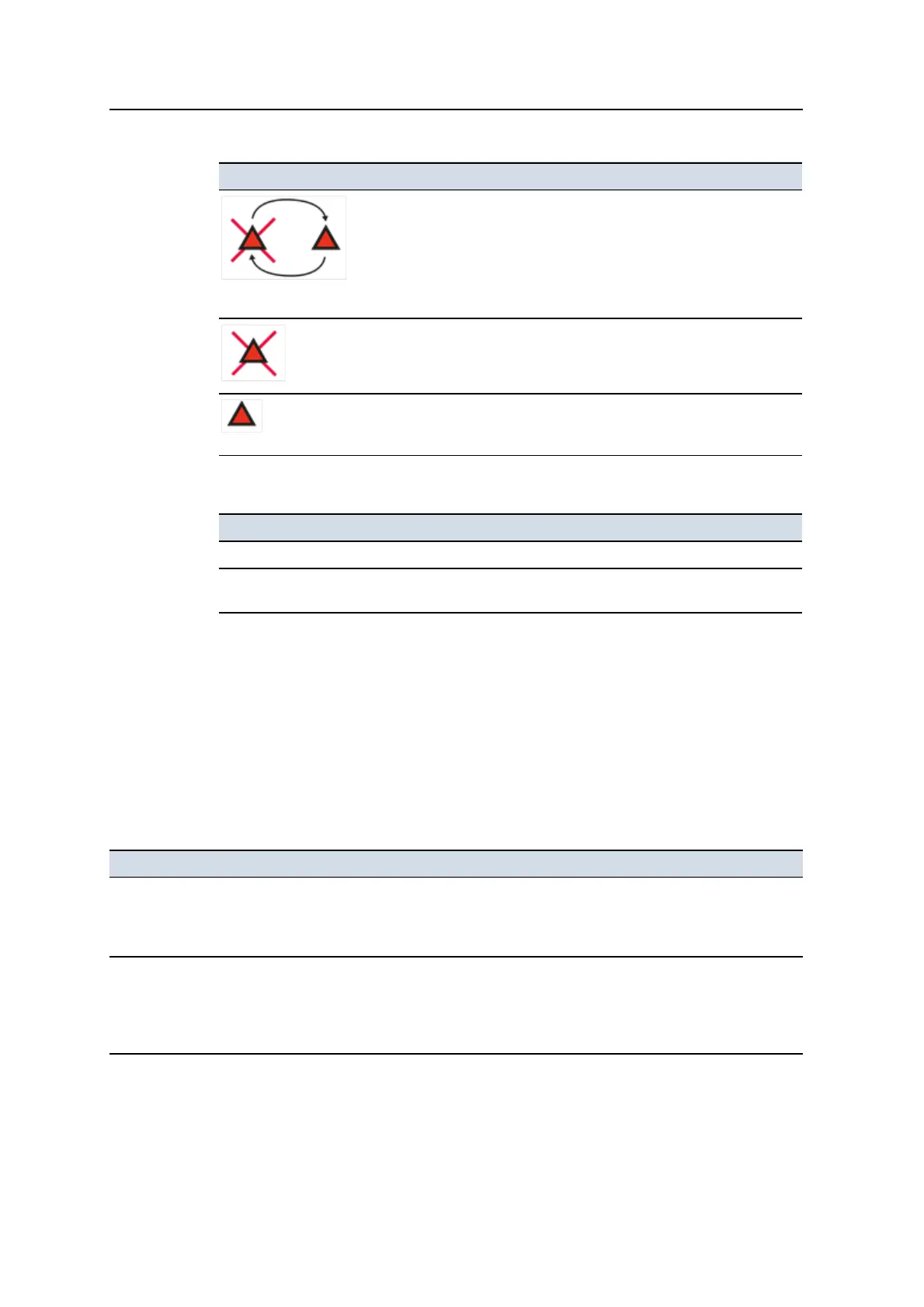

Troubleshooting in theField 7
This symbol ... Represents ...
3 seconds alternating
A BeiDou satellite that the system is tracking and using in the position
solution. The satellite’s identifier is displayed, prefixed with an “C”, next to
the satellite’s symbol.
A BeiDou satellite that the system is tracking but not using in the position
solution. The satellite’s identifier is displayed, prefixed with an “C”, next to
the satellite’s symbol.
A BeiDou satellite that is currently below the elevation mask. The
satellite’s identifier is displayed, prefixed with an “C”, next to the
satellite’s symbol.
The following table describes the fields that appear in the Sky Plot dialog:
This field ... Displays ...
Elevation mask The current elevation mask.
Actual SVs The actual or calculated number of GNSS satellites the system is using at
the reference time.
7.4 Troubleshooting flashing warning messages
The system displays flashing warning messages when you need act to ensure that
the system continues to provide accurate information. These warning messages are
also written to the program log file (LOG_<machine name>_<date&time>.txt).
7.4.1 General warning messages
Message Problem Solution
Avoidance Zone
Entered
You have entered an Avoidance
Zone. This is an area that has
been designated as unsuitable for
machine operation.
Use plan view to guide the machine out of the Avoidance
Zone.
Check Machine
Measurements
The set of measurements that was
entered is incomplete, or
inconsistent with a machine
measurement that can be
measured by the system.
To restore a suitable machine settings file, use the
procedure in 3.3.1 Machine settings.
Otherwise, ask your site supervisor to enter the correct
machine measurements.
Table 7.2 — General warning messages
GCS900 Grade Control System for Excavators Operator's Manual 165
