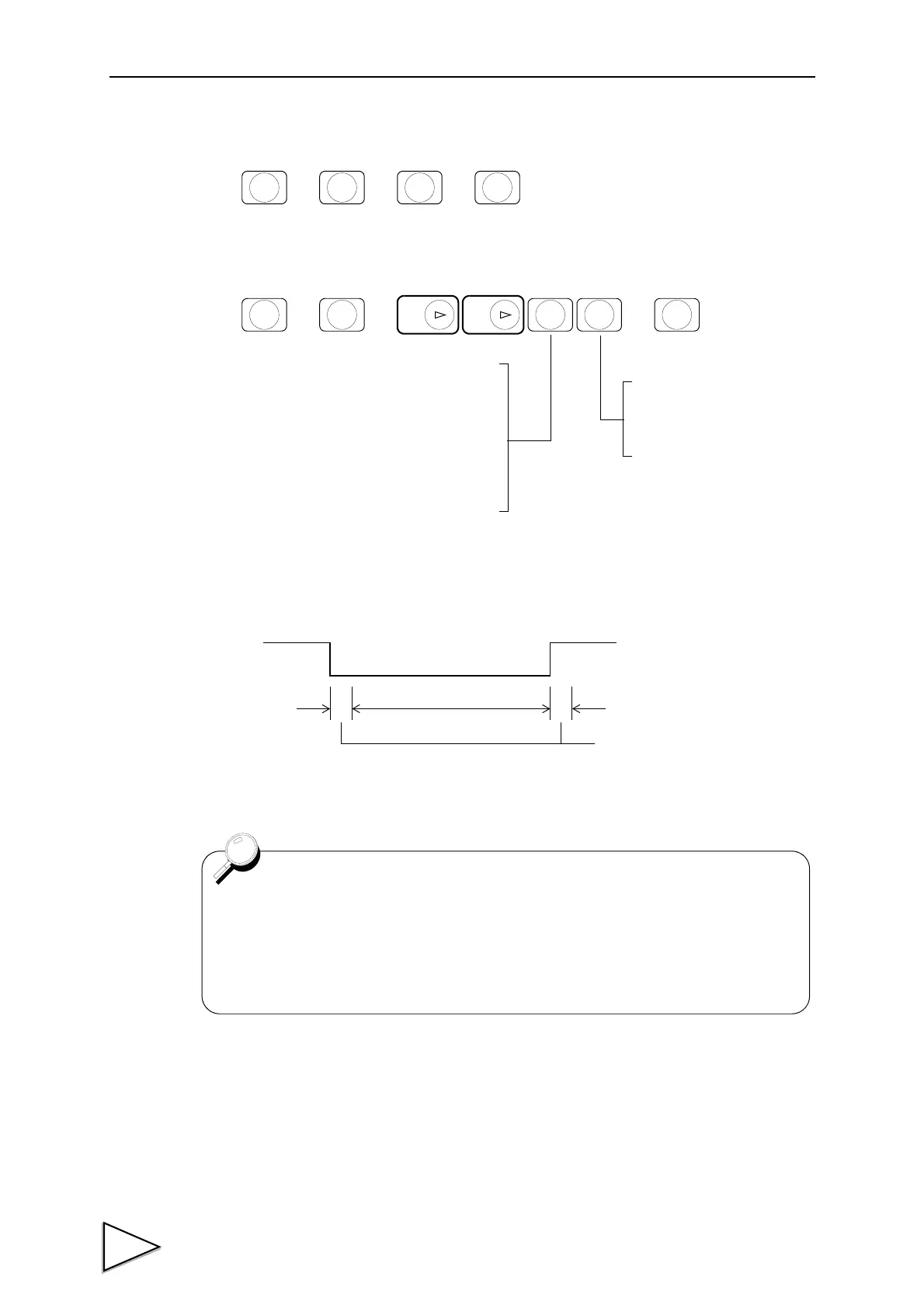

6.DISCHARGING CONTROL MODE
92
b), e)
1) Select setting mode 2.
2) Set Upper/Lower limit comparison mode and Over/Under comparison mode.
(2-Weighing Function 2)
B2 to B5 pin on the control connector can be used as judgment signals by setting.
→→→
F
CNG/ENT CNG/ENT
2
LOWER
Upper/Lower limit
Over/Under comparison mode
3 : Comparison is made, and the
weight value is held when the
complete output is ON.
2 : Comparison is made when the
complete output is ON.
1 : Comparison is made when the
external judgment input is ON.
0 : Comparison regularly
comparison mode
1 : Comparison is made when
the external judgment
input is ON.
0 : Comparison regularly
→→ →
ZERO
2
LOWER
CNG/ENT CNG/ENT
ZERO
OFF
ON
Undecided interval
Judge
(within 50ms)
Be aware that no judgment is made if there is no judgment input set by the
input selection when the over/under comparison mode or the upper/lower limit
comparison mode is set at “Comparison is made when the external judgment
input is ON.” However, the external judgment input cannot be used in the
sequence mode.
To Next Page
