9.EXTERNAL INPUT/OUTPUT SIGNALS (CONTROL CONNECTOR)
113
9-4. External Input Signal

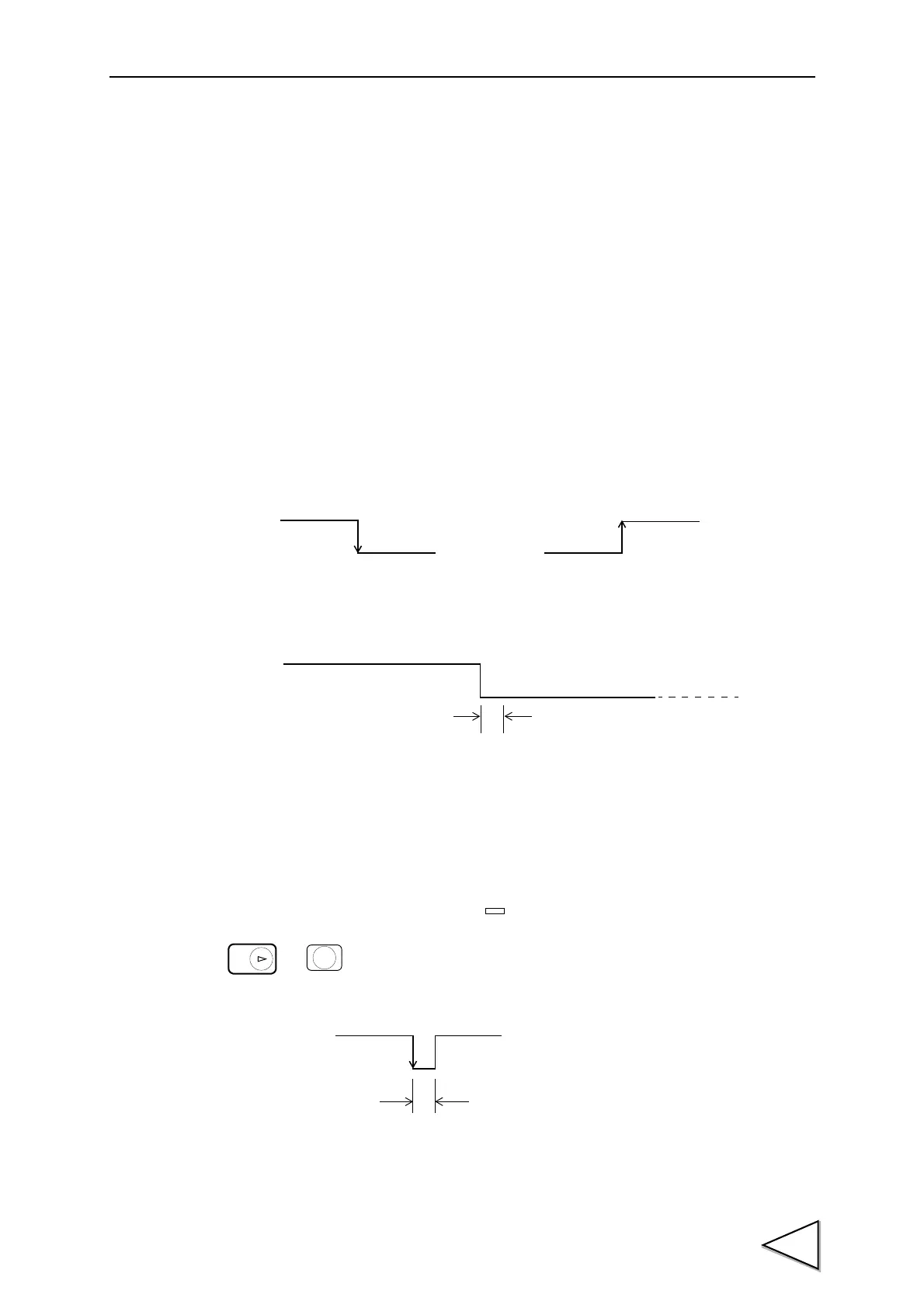

9-4-1. Gross/Net Switching (G/N) <Edge Input> <Level Input>
Edge input or level input is selectable by the setting of Gross weight/Net weight display (External
Function Selection in setting mode 4).
* For the method of setting, refer to "5-15.Switching Gross Weight/Net Weight Display" on P.67.
- In the case of edge input (G/N setting: internal key mode)
When external input is ON edge (OFF → ON), display switches to Net weight.
When external input is OFF edge (ON → OFF), display switches to Gross weight.
- In the case of level input (G/N setting: external input mode)
Net weight display results at ON, and Gross weight display results at OFF.
9-4-2. Digital Zero (D/Z ON) <Edge Input>
When external input is ON edge (OFF → ON), it brings the Gross weight to zero.
This function works within the range of DZ Regulation Value.
If out of this range, zero will not result, but “ ” flashes.
The → key operation also results in the same movement (when the ZERO key is
valid under the Function Key Invalid setting in setting mode 2).
OFF
Net weight display
ON
OFF
Gross weight display
ON
Gross weight display
Net weight display
OFF
ON
Undecided interval (within 50ms)
OFF
ON
Pulse width 50msec or more
To Next Page
